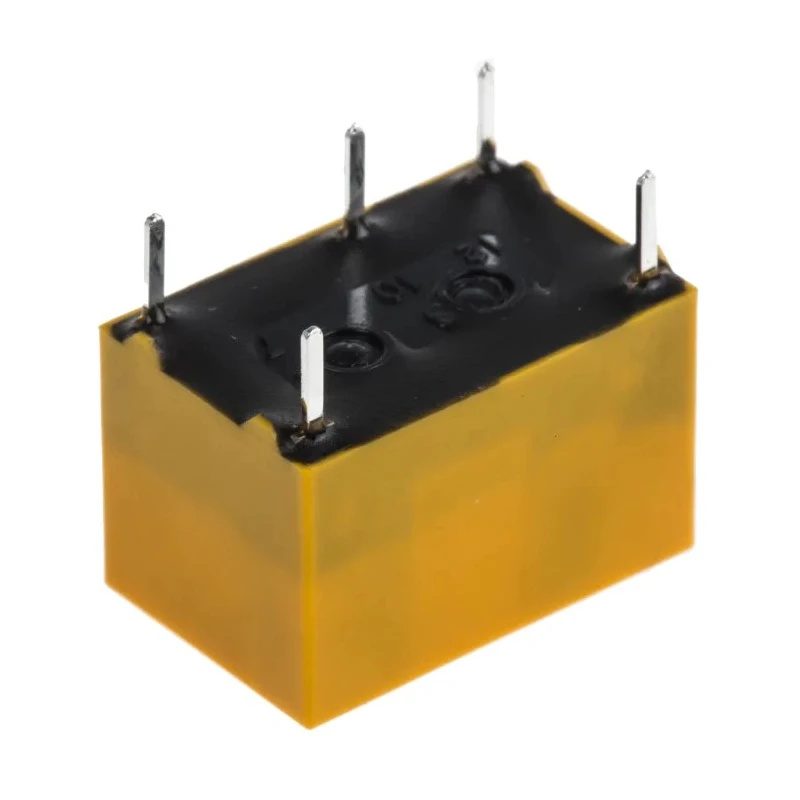

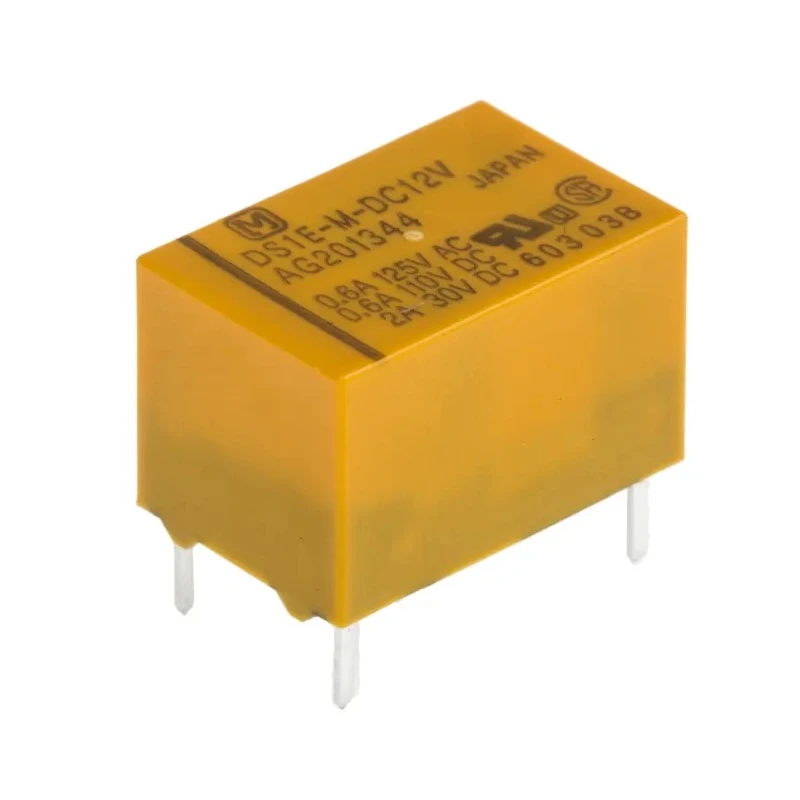

Panasonic Surface Signal Relay 12V DC Coil 3A SPST DS1E-M-DC12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.4mm |
| Length | 20mm |
| Model | DS1E-M-DC12V |
| Width | 9.9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- The relay supports switching AC voltage up to 250V AC and DC voltage up to 220V DC.
- It offers a surface mount type design suitable for PCB terminals.
- The coil resistance is 360 ohms with a coil power consumption of 400mW.
- Contact material is gold plated ensuring reliable signal transmission.
- Operating temperature range is from -40°C to 70°C suitable for diverse environments.
- Compact dimensions with length 20mm, width 9.9mm, and height 9.4mm.
- Meets RoHS standards and is manufactured in Japan.
Product Description
Panasonic DS1E-M-DC12V surface signal relay is designed for precise and reliable control in electronic and electrical circuits, incorporating a 12V DC coil and SPST contact configuration with a switching current of 3A. The device is intended for surface mount applications with PCB terminals, ideal for electronics manufacturing, automation, and control systems.
This signal relay supports switching voltages up to 250V AC and 220V DC, facilitating use in various control circuits and signal conditioning tasks. It is engineered to operate effectively in harsh temperature conditions from -40°C to 70°C, ensuring durability in industrial and automation environments.
The relay’s gold-plated contacts improve conductivity and reduce signal loss, supporting high-quality performance. The coil resistance of 360Ω and coil power of 400mW reflect efficient coil energizing characteristics. Dimensionally compact, the relay measures 20mm in length, 9.9mm in width, and 9.4mm in height, making it suitable for tight PCB layouts.
Conforming to RoHS directives, this Panasonic Signal Relay is a compliant and reliable choice for signal switching applications in electronic devices, manufacturing automation, and instrumentation. Country of origin is Japan, reflecting quality manufacturing standards.
The relay supports a 12V DC coil voltage with 3A switching current capacity. Features a single-pole single-throw (SPST) contact configuration. Designed as a surface mount device with PCB terminal connections. Gold-plated contacts ensure low resistance and reliable signal switching.
Operates across a broad temperature range from -40°C up to 70°C. Compact physical dimensions suit tight electronic layouts. Meets RoHS environmental and safety standards.
This product is widely used in industrial, electronics manufacturing, automation, telecommunications, and laboratory instrumentation sectors requiring precise relay switching. Explore Panasonic and other high-quality relay solutions in the Electronics & Electricals category at EnvMart.
