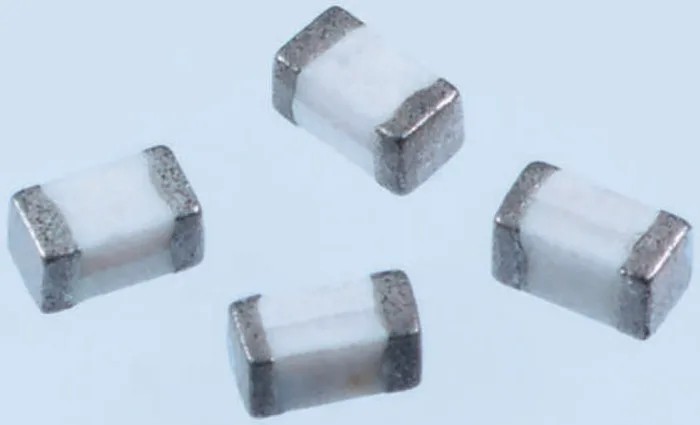

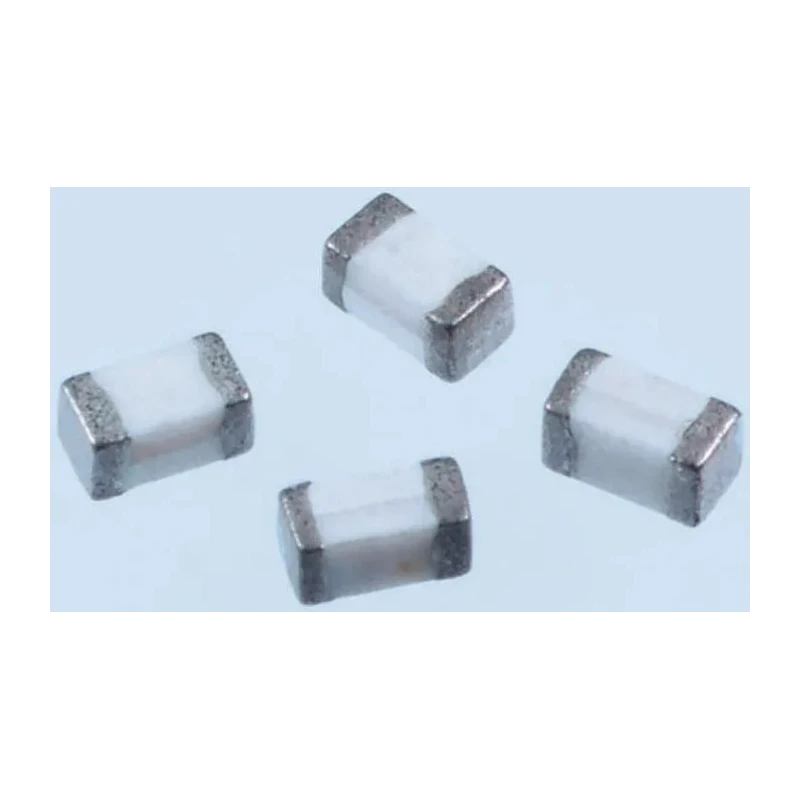

Murata Shielded Multilayer Surface Mount Inductor 2.2μH Ferrite Core 120mA 0603 LQM18N
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQM18N |
| Depth | 0.8mm |
| Packaging | 180 mm Dia Paper Tape |
| Series | LQM18N |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 120mA |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | ±20 % |
| Maximum Self Resonant Frequency | 80MHz |
| Inductor Construction | Multilayer |
Key Features

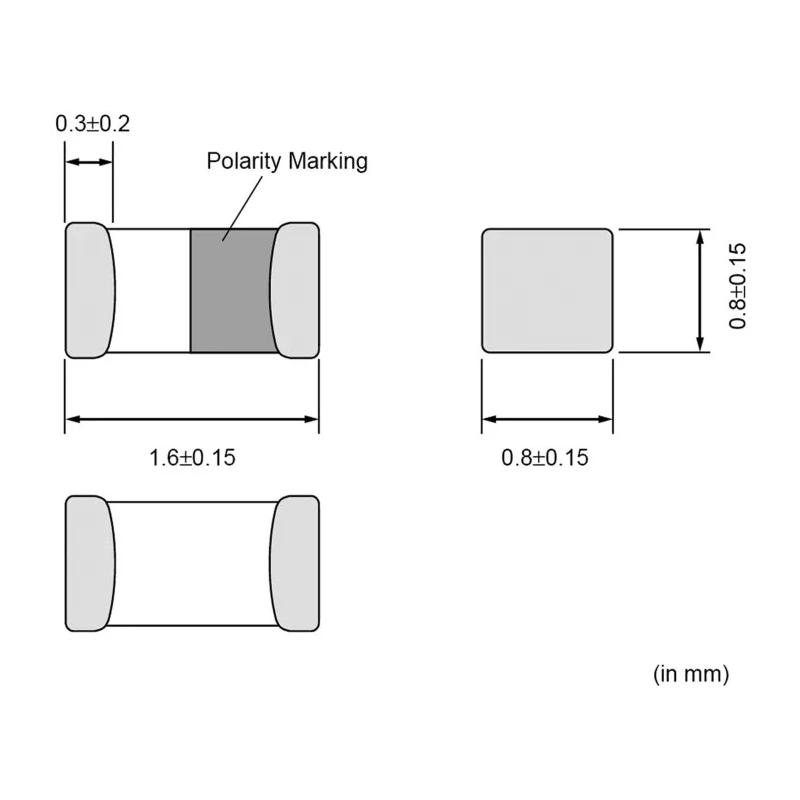

- Compact 0603 package with 1.6mm length and 0.8mm height and depth.
- Ferrite core construction ensures effective magnetic shielding for interference reduction.
- Inductance tolerance of ±20 % and maximum DC resistance of 400mΩ.
- Operational temperature range from -55°C to 125°C suitable for harsh environments.
- Maximum self-resonant frequency of 80MHz for high-frequency applications.
- RoHS compliant and moulded multilayer design for reliability and durability.
- Packaged on 180 mm diameter paper tape for automated assembly processes.
Product Description
Murata LQM18FN2R2M00D is a shielded multilayer surface mount inductor featuring a ferrite core, designed to provide 2.2μH inductance and withstand a maximum DC current of 120mA. It is built within a compact 0603 package size (1.6mm length, 0.8mm height and depth) suitable for space-constrained electronic circuits.
The ferrite core combined with the shielding ensures minimal interference from surrounding components, making this inductor ideal for resonance and filtration circuits in telecommunications equipment and other high-frequency applications up to 80MHz. The ±20 % inductance tolerance and maximum DC resistance of 400mΩ provide reliable electrical characteristics.
Operating temperature ranges from -55°C to 125°C, enabling use in industrial, automation, and harsh environment applications. The multilayer construction is moulded, offering mechanical stability and durability.
This inductor complies with RoHS standards, ensuring environmental safety in manufacturing and use. The product is supplied on a 180 mm diameter paper tape reel to facilitate automated pick-and-place assembly for efficient manufacturing workflows.
Compact 0603 surface mount package with 1.6mm length. Ferrite core with shielding protects from electromagnetic interference. 2.2μH inductance with ±20 % tolerance ensures circuit precision. 120mA maximum DC current suitable for low-power electronic circuits.
Wide operating temperature from -55°C to +125°C supports industrial use. Maximum DC resistance of 400mΩ limits power loss and heat generation. High self-resonant frequency of 80MHz for advanced signal integrity. Moulded multilayer structure adds mechanical strength and performance consistency.
RoHS compliant environmentally friendly component. Packaged on 180 mm diameter paper tape for surface mount manufacturing. Manufactured in Japan with high quality standards.
This Murata LQM18FN2R2M00D inductor is well-suited for telecommunications, industrial electronics, computer equipment, and other high-frequency filter or resonance circuits. Explore more Surface Mount Inductors and component solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 2.2μH with an inductance tolerance of ±20%.
The maximum DC current for this inductor is 120mA, making it suitable for low-power electronic circuits.
It is housed in a compact 0603 package, with dimensions of 1.6mm in length, and both 0.8mm in height and depth.
The maximum self-resonant frequency is 80MHz, which is suitable for high-frequency applications.
This inductor operates effectively within a temperature range of -55°C to 125°C, suitable for harsh environments.
The maximum DC resistance is 400mΩ, which helps limit power loss and heat generation.
It features a ferrite core construction, which provides effective magnetic shielding for interference reduction.
It is packaged on a 180 mm diameter paper tape, facilitating automated assembly processes.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards in manufacturing and use.
It is well-suited for telecommunications, industrial electronics, computer equipment, and high-frequency filter or resonance circuits.
This inductor features a moulded multilayer construction, which adds mechanical stability and performance consistency.
This model is part of the LQM18N series of inductors by Murata.
