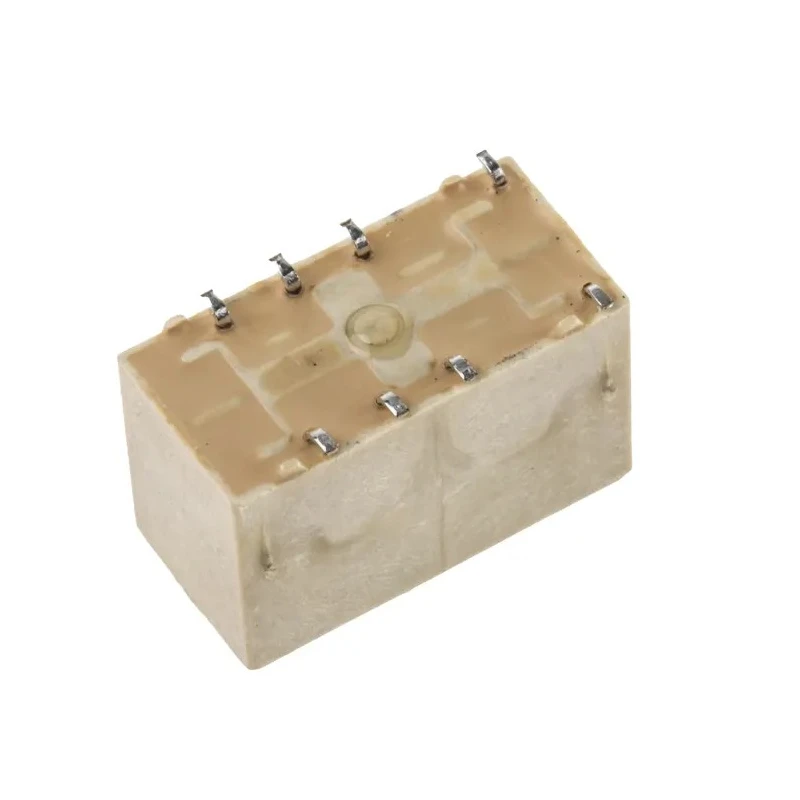

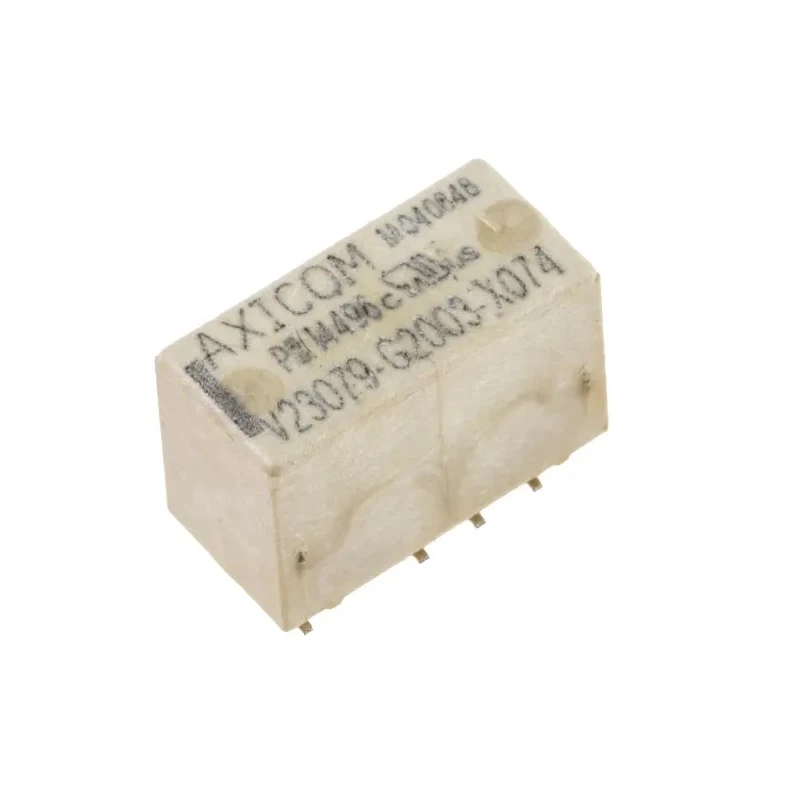

TE Connectivity Surface Signal Relay 12V DC Coil 2A DPDT 1422006-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10.4mm |
| Length | 14.5mm |
| Width | 7.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- Offers reliable surface mount installation with through-hole terminal type.
- Features bifurcated gold plated silver nickel contacts ensuring durability.
- Operates within a temperature range of -40°C to 85°C for diverse environmental conditions.
- Supports switching up to 250V AC and 220V DC with a switching power of 62.5VA.
- Coil resistance of 720Ω with low coil power consumption of 200mW.
- Immersion cleanable and complies with RoHS standards for environmental safety.
- Designed for use in communications, consumer electronics, office, control, medical, and automotive equipment.
Product Description
TE Connectivity 1422006-4 Surface Signal Relay features a 12V DC coil voltage and a 2A switching current with DPDT (Double Pole Double Throw) bifurcated gold plated silver nickel contacts. The relay is surface mounted with a through-hole terminal type offering ease of installation and reliability.

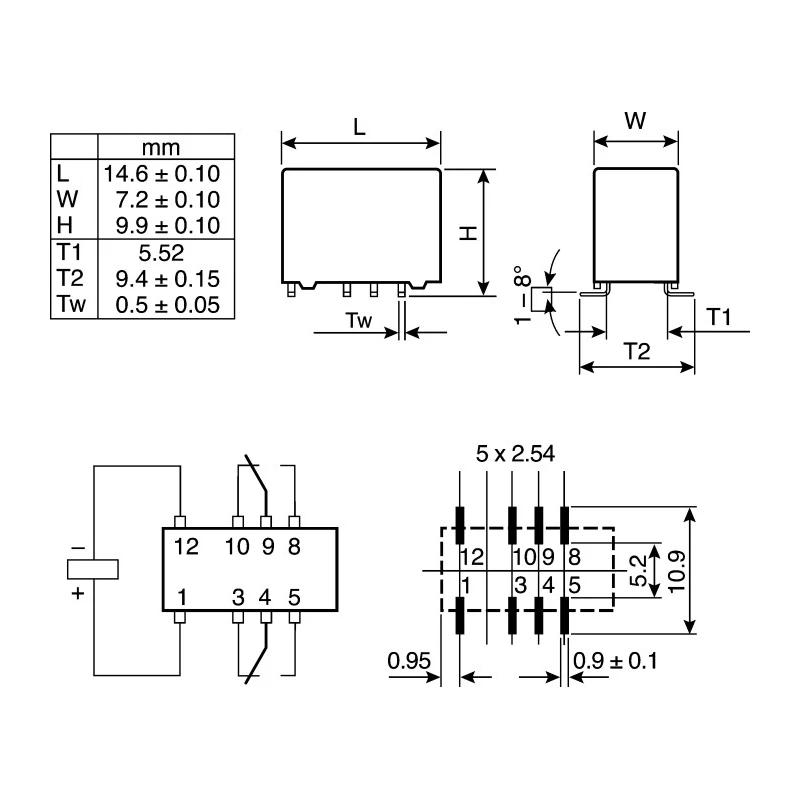

This relay operates over a wide temperature range from -40°C to +85°C and is designed to handle switching AC voltages up to 250V and DC voltages up to 220V with a switching power rating of 62.5VA. Its slimline design (14.5mm length, 7.2mm width, and 10.4mm height) makes it suitable for applications where space-saving is critical.
The coil resistance of 720 ohms along with a low coil power consumption of 200mW enhances energy efficiency, making it ideal for sensitive electronic applications. The relay is immersion cleanable, meeting RTIII and IP67 standards, and complies with RoHS directives ensuring environmentally safe use. The contact resistance is minimized due to the gold plating on contacts, improving signal integrity.
Typical applications include communications equipment such as PABX and VOIP systems, consumer electronics like set-top boxes and HiFi audio, office equipment, control devices, medical instruments, and automotive electronics.
Surface mount design with through-hole terminals for robust mounting. Gold plated bifurcated contacts ensure reliable switching. Overmoulded monostable coil for enhanced durability. Impressive surge capability conforming to Telcordia TR-NWT-001089 and IEC 60950 standards.
Wide operating temperature range suitable for industrial environments. Low nominal coil power consumption ensures energy savings. Complies with RoHS environmental standards for hazardous substances. Ideal for demanding electronic and telecom signal switching applications.
Choose TE Connectivity relays for industrial, laboratory, HVAC, manufacturing, water treatment, agricultural, commercial, and communications system applications. Explore our wide range of relays in the Electronics & Electricals category at EnvMart for precise and durable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 2A.
This relay has dimensions of 14.5mm in length, 7.2mm in width, and 10.4mm in height.
It operates within a temperature range of -40°C to 85°C.
It can switch AC voltages up to 250V and DC voltages up to 220V.
The relay features bifurcated gold plated silver nickel contacts for improved signal integrity.
It is designed for surface mounting with a through-hole terminal type for easy installation.
The coil resistance is 720Ω.
The coil has a low power consumption of 200mW.
Yes, it complies with RoHS standards for environmental safety.
Typical applications include communications equipment, consumer electronics, office equipment, medical instruments, and automotive electronics.
The relay has a DPDT (Double Pole Double Throw) contact configuration.
