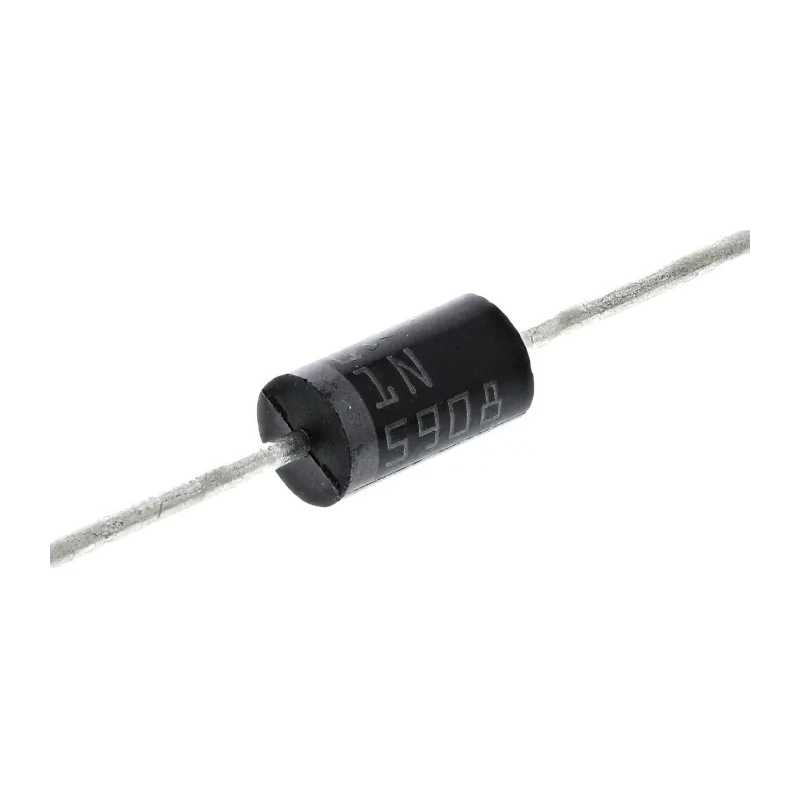

STMicroelectronics Uni-Directional TVS Diode 1.5 kW 2-Pin DO-201 1N5908

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Uni-Directional TVS Diode 1.5 kW 2-Pin DO-201 1N5908

Name: STMicroelectronics Uni-Directional TVS Diode 1.5 kW 2-Pin DO-201 1N5908
Brand: STMicroelectronics
SKU: 315313
Price: 0.78 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Diameter	5.3mm
Brand	STMicroelectronics
Height	9.5mm
Length	9.5mm
Model	1N5908
Width	5.3mm
Mount Type	Through Hole
Series	Transil
Maximum Operating Temperature	175°C
Package Type	DO-201
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	8V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	5V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	30A
Maximum Reverse Leakage Current	300μA

Key Features

This diode features a single element configuration optimized for unidirectional operation.
Breakdown voltage is rated at a minimum of 6V ensuring reliable protection.
Maximum reverse stand-off voltage is 5V with a clamping voltage of 8V.
Designed for through-hole mounting with pin count of 2 for easy installation.
It has a peak pulse current rating of 30A, supporting transient power surges effectively.
Operational temperature range spans from -55°C to 175°C ensuring durability in harsh environments.
Compact axial DO-201 package measures 9.5mm in length and height with a diameter of 5.3mm.
Maximum reverse leakage current is low at 300µA for efficient performance.

Product Description

STMicroelectronics 1N5908 Uni-Directional TVS Diode offers high transient voltage suppression with a peak pulse power dissipation of 1.5 kW. The device is housed in a robust 2-pin DO-201 axial package facilitating through-hole mounting and convenient integration into circuit designs.

This single element diode is engineered for unidirectional operation, with a guaranteed minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, ensuring excellent clamping voltage at 8V to protect sensitive electronics effectively.

The component supports peak pulse currents up to 30A and maintains performance within a broad temperature range from -55°C to 175°C, making it suitable for industrial, commercial, and electronic applications exposed to transient voltage spikes.

Its compact dimensions of 9.5mm length, 9.5mm height, and 5.3mm diameter allow flexibility in PCB layout without sacrificing reliability. The maximum reverse leakage current is controlled at 300 microamperes, minimizing power loss during standard operation.

This TVS Diode is part of the Transil series by STMicroelectronics. Single element, unidirectional configuration for targeted voltage surge protection. High peak pulse power dissipation rating of 1.5 kW for transient events.

Operates reliably across extreme temperature ranges from -55°C to 175°C. Comes in a DO-201 through-hole package with a 2-pin configuration for straightforward PCB mounting. Low reverse leakage current ensures energy efficient operation.

Compact dimensions allow easy integration into various electronic systems.

This diode is ideal for safeguarding power lines, voltage sensitive circuits, and semiconductors in industrial equipment, consumer electronics, and communication devices. It is manufactured in China with no specific automotive certification.

Explore a wide range of semiconductor protection devices and components in the Electronics & Electricals category on EnvMart to find the best solution for your application.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The peak pulse power dissipation of the 1N5908 diode is rated at 1.5 kW, allowing it to handle transient voltage spikes effectively.

The minimum breakdown voltage of the 1N5908 is rated at 6V, ensuring reliable protection against voltage surges.

The maximum reverse stand-off voltage for the 1N5908 is 5V, which helps protect sensitive components in electronic circuits.

The clamping voltage of the 1N5908 is 8V, providing effective protection during transient events.

This model supports a maximum peak pulse current of 30A, making it suitable for handling significant transient surges.

The diode has a compact axial DO-201 package measuring 9.5mm in length and height, with a diameter of 5.3mm.

The operational temperature range for this diode spans from -55°C to 175°C, allowing it to function in harsh environments.

This diode is designed for through-hole mounting, featuring a 2-pin configuration for easy installation.

The maximum reverse leakage current for the 1N5908 is 300µA, ensuring efficient performance during standard operation.

The 1N5908 features a single element configuration optimized for unidirectional operation, specifically designed for voltage surge protection.

This diode is suitable for safeguarding power lines, voltage sensitive circuits, and semiconductors in industrial, commercial, and electronic applications.
