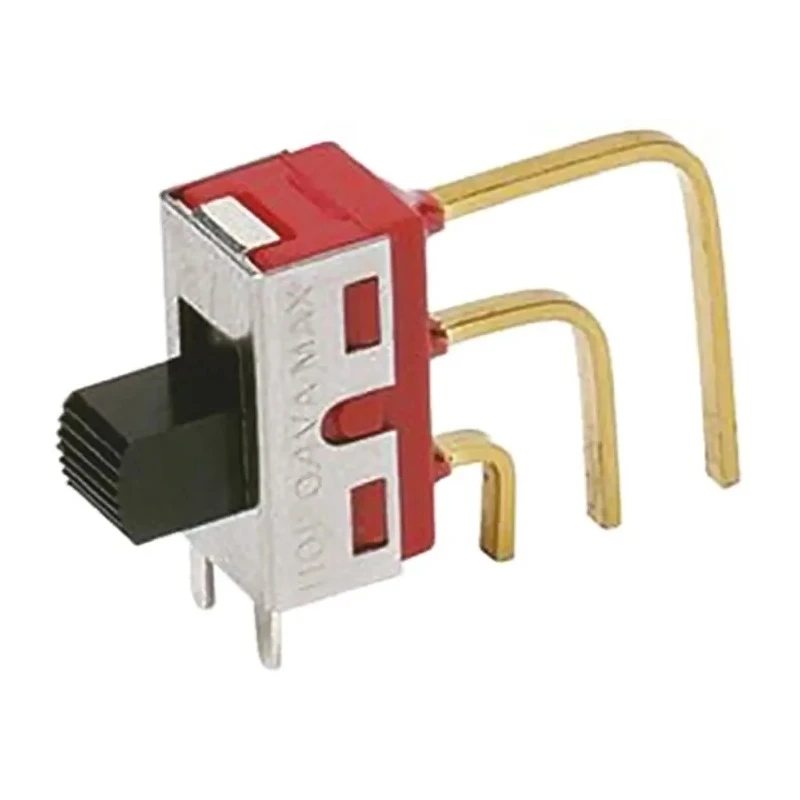

C & K PCB Slide Switch SPDT Latching 400mA Nylon 1101M2S3AV2BE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Operating Temperature Range | -30 to +65°C |
| Length | 12.7mm |
| Model | 1101M2S3AV2BE2 |
| Depth | 15.24mm |
| Width | 6.6mm |
| Mount Type | PCB |
| Series | 1000 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Right Angle PC Terminal |
| Standards/Approvals | UL, CSA |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
| RS PRO PCB Slide Switch SPDT Latching 400mA NylonBrand | RS PRO |
| RS PRO PCB Slide Switch SPDT Latching 400mA NylonRS Stock No. | 734-7309Brand: RS PRO |
Key Features
- This slide switch supports SPDT contact configuration for versatile circuit control.
- The switch operates with a latching mechanism rated at 400mA contact current.
- It features a nylon actuator and epoxy sealed terminals for durability and wash resistance.
- Operating temperature range is from -30°C to +65°C, ensuring reliable use in varied environments.
- The switch has a mechanical life of 100,000 cycles assuring longevity.
- Rated for 28V DC and 250V AC contact voltage for versatile electrical applications.
- UL and CSA approvals validate safety and quality standards compliance.
Product Description
The C & K 1101M2S3AV2BE2 PCB Slide Switch is a high-quality SPDT latching slide switch designed for circuit board installation. It features a nylon actuator combined with a UL 94V-0 rated diallyl phthalate case, and epoxy sealed terminals making it suitable for bottom wash cleaning processes.
This switch is capable of switching loads up to 400mA and supports contact voltages of 28V DC and 250V AC, offering flexibility in a variety of electrical and electronic applications.
Its mechanical endurance is rated for 100,000 cycles, providing a long operational lifespan. The operating temperature range from -30°C to +65°C allows it to function effectively in industrial, telecommunications, computer peripherals, and test and measurement environments.
The compact form factor with a depth of 15.24mm, length of 12.7mm, and width of 6.6mm enables easy integration in tight spaces on printed circuit boards. The right angle PC terminal mount type ensures secure and reliable mounting.
This slide switch has a SPDT contact configuration for selective switching. The latching switch operation mode ensures stable switching positions. The nylon actuator and sealed terminals enhance durability and resistance against environmental stresses.
Certified under UL and CSA standards, assuring compliance with quality and safety norms. Suitable for use in industrial automation, telecommunications, computing devices, and other PCB applications requiring reliable switching.
With its robust design and compliance certifications, the C & K 1101M2S3AV2BE2 is an ideal choice for engineers and technicians demanding reliable and durable slide switch solutions. Explore more switch and electrical component options available through EnvMart for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
The switch is rated for a maximum contact current of 400mA.
The operating temperature range is from -30°C to +65°C, making it suitable for various environments.
It supports a contact voltage of 28V DC and 250V AC, providing flexibility for different electrical applications.
The mechanical life is rated for 100,000 cycles, ensuring longevity in operation.
The actuator is made of nylon, and the terminals are epoxy sealed for durability and wash resistance.
It features a right angle PC terminal mount type for secure and reliable mounting on printed circuit boards.
The dimensions are 12.7mm in length, 6.6mm in width, and 15.24mm in depth, allowing for easy integration into compact spaces.
It is certified under UL and CSA standards, ensuring compliance with safety and quality norms.
This model operates in a latching mode, which ensures stable switching positions once activated.
It is suitable for use in industrial automation, telecommunications, computing devices, and other PCB applications requiring reliable switching.
This slide switch belongs to the 1000 series, which includes various models designed for PCB applications.
