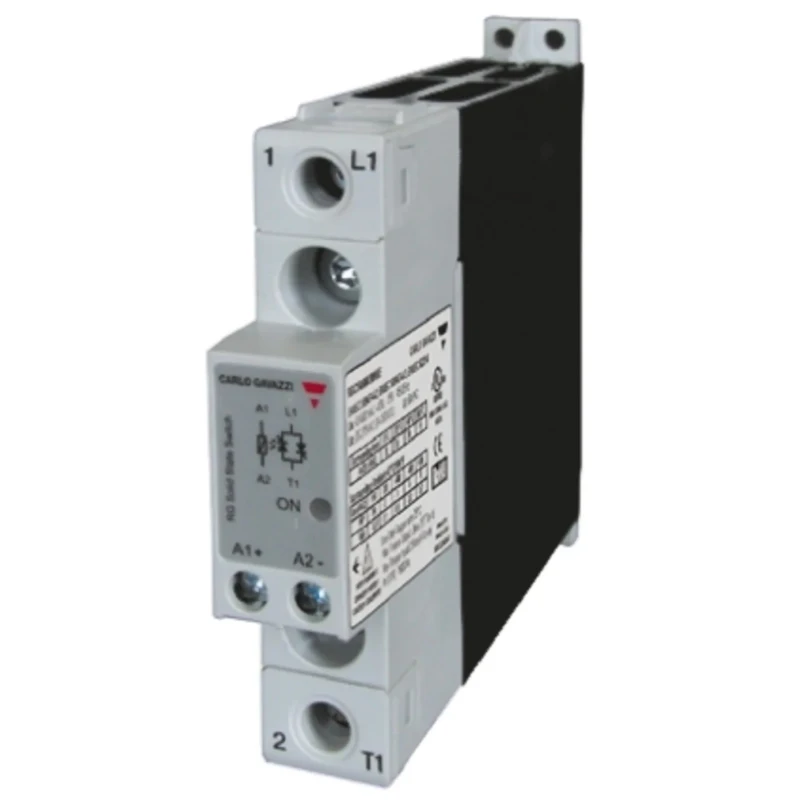

Carlo Gavazzi Solid State Relay RGC1 Series, 20 A Load, Panel Mount, 240V AC Load, 275V AC Control

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi Solid State Relay RGC1 Series, 20 A Load, Panel Mount, 240V AC Load, 275V AC Control

Name: Carlo Gavazzi Solid State Relay RGC1 Series, 20 A Load, Panel Mount, 240V AC Load, 275V AC Control
Brand: Carlo Gavazzi
SKU: 314924
Price: 109.36 USD
Availability: InStock



Category Solid State Relay Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Malta
Brand	Carlo Gavazzi
Height	110mm
Length	17.8mm
Model	RGC1
IP Rating	IP20
Width	103mm
Mount Type	Panel
Output type	PNP
Series	RGC1
Maximum Operating Temperature	80°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross
Maximum Load Current	20A
Standards/Approvals	RoHS
Maximum Load Voltage	240V ac
Minimum Load Voltage	24V ac
Minimum Control Voltage	20V ac
Maximum Control Voltage	275V ac
Off State Leakage Current	3mA
Short circuit current rating	100 kA

Key Features

This relay offers a maximum load current of 20 A for robust industrial use.
Panel mount type facilitates compact installation within electrical control panels.
Supports maximum load voltage up to 240 V AC and a minimum operating voltage of 24 V AC.
Equipped with screw terminals for secure wiring connections.
Zero cross switching function provides reduced electrical noise and enhanced load protection.
Operating temperature ranges from -40°C to a maximum of 80°C ensuring durability across environments.
IP20 rated ingress protection suitable for protected indoor use.
The contact configuration is Single Pole Single Throw (SPST) with PNP output type.

Product Description

Carlo Gavazzi RGC1A23A15KKE Solid State Relay from the RGC1 Series is engineered for demanding industrial, electrical automation, and control applications. It is specifically designed for panel mounting with a compact form factor of 17.8mm length, 103mm width, and 110mm height, enabling efficient use of panel space.

This relay supports a maximum load current of 20 A and a maximum load voltage of 240 V AC, making it suitable for controlling medium power AC loads in manufacturing, HVAC control systems, and industrial machinery. The control voltage range extends up to 275 V AC, providing flexibility in control circuit designs.

Key features include zero crossing switching that minimizes electrical noise and prevents damage to connected loads. The relay is fitted with screw terminals for durable and reliable wiring connections, ensuring safety and ease of installation. The device’s IP20 ingress protection rating ensures adequate protection against solid objects.

Operating temperature range from -40°C to 80°C ensures consistent performance in various industrial environments. The relay's short circuit current rating of 100 kA provides enhanced safety for electrical systems.

The Carlo Gavazzi RGC1 series complies with RoHS environmental standards and is manufactured in Malta, emphasizing quality manufacturing standards. This solid state relay is ideal for industrial automation and electrical control panels.

Compact panel mount design conserves valuable panel space. Ensures reliable control of load currents up to 20 A at 240 V AC. Zero cross switching reduces electrical noise and extends relay life. Wide operating temperature range supports harsh environments.

Robust construction with screw terminals for safe connections. IP20 rated for indoor protected areas. Short circuit rated for 100 kA enhances safety and compliance. RoHS compliant, sustainable for industrial use. Explore the full range of Carlo Gavazzi Solid State Relays and related automation products at EnvMart to support your industrial control and electrical automation needs.
