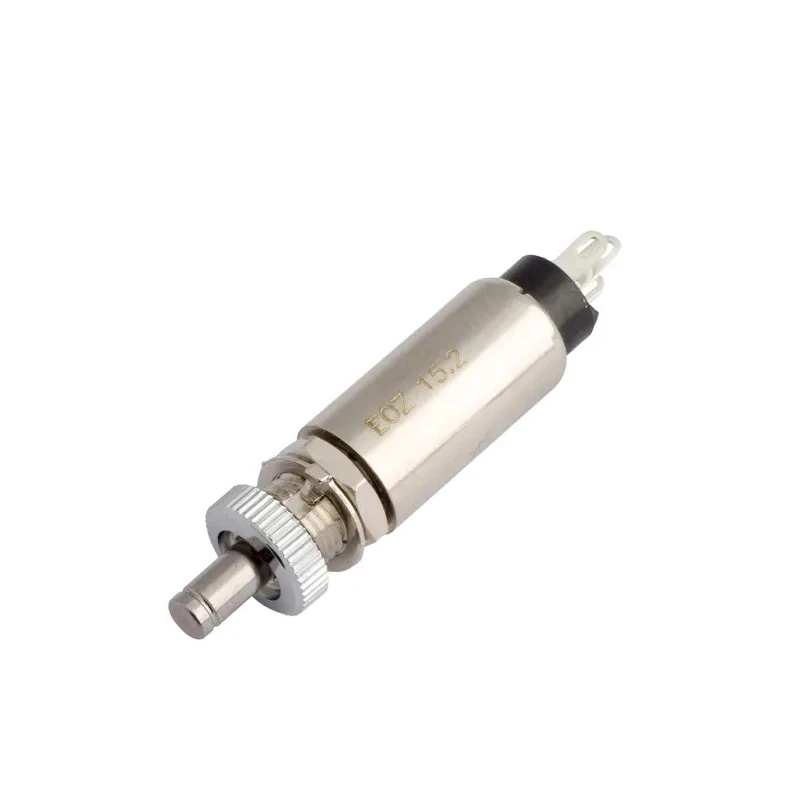

EOZ DJET Series Momentary Push Button Switch Panel Mount SPDT 6.4 mm Cutout IP65 IP67 17.17851.21



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
IP Rating	IP65, IP67
Mount Type	Panel
Series	DJET
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Panel Cutout Size	6.4 mm
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Silver
Actuator Style	Cap
Switch Contact Current	100μA

Key Features

The switch has a silver-colored cap actuator style without illumination.
Designed for panel mounting with solder terminal type ensuring secure connections.
Operates reliably in temperatures from -40°C to 85°C.
Meets RoHS compliance standards ensuring environmental safety.
Electrical life expectancy is 100,000 operations with positive snap-action system.
IP65 and IP67 ratings provide dust and water ingress protection for outdoor use.
Widely used in telecommunications, military, avionics, medical equipment, and power supplies.

Product Description

EOZ 17.17851.21 is a high-quality DJET Series momentary push button switch designed for panel mounting applications. Featuring a 6.4 mm cutout size, it offers single-pole double-throw (SPDT) contact configuration with a durable silver cap actuator. This switch is not illuminated and is operated momentarily, making it ideal for precise control actions.

The robust construction includes a positive snap-action switching system and an electrical life of 100,000 operations. Its IP65 and IP67 front panel sealing ensure reliable operation in harsh environments, including outdoor applications exposed to dust and water. The switch operates efficiently within a wide temperature range from -40°C up to 85°C, suitable for industrial, telecommunications, military, avionics, medical devices, and power supply equipment.

Installation is straightforward: the unit is pushed through the panel cutout and secured from the rear with a fixing nut. Care should be taken not to overtighten the fixing nut from the front to avoid damage. The solder terminal type ensures reliable electrical connections for various application needs.

The EOZ DJET series meets RoHS standards, confirming compliance with environmental and safety regulations. This versatile push button switch is suitable for demanding industrial and commercial environments requiring durable, resistant, and precise switching solutions.

The switch features a silver-colored cap actuator that is non-illuminated. It has a panel cutout size of 6.4 mm, allowing easy panel installation. Its SPDT contact configuration supports single-pole double-throw switching functions.

The device is rated IP65 and IP67 for front panel sealing, protecting against dust and water ingress. It operates reliably between -40°C and 85°C, suitable for extreme environments. This product conforms to RoHS environmental standards for safer operation.

The DJET series supports up to 100,000 switching operations with positive snap-action.

This EOZ push button switch is ideal for use in telecommunications equipment, military and avionics devices, medical machinery, industrial controls, and power supplies where robust and reliable momentary switching is critical.
