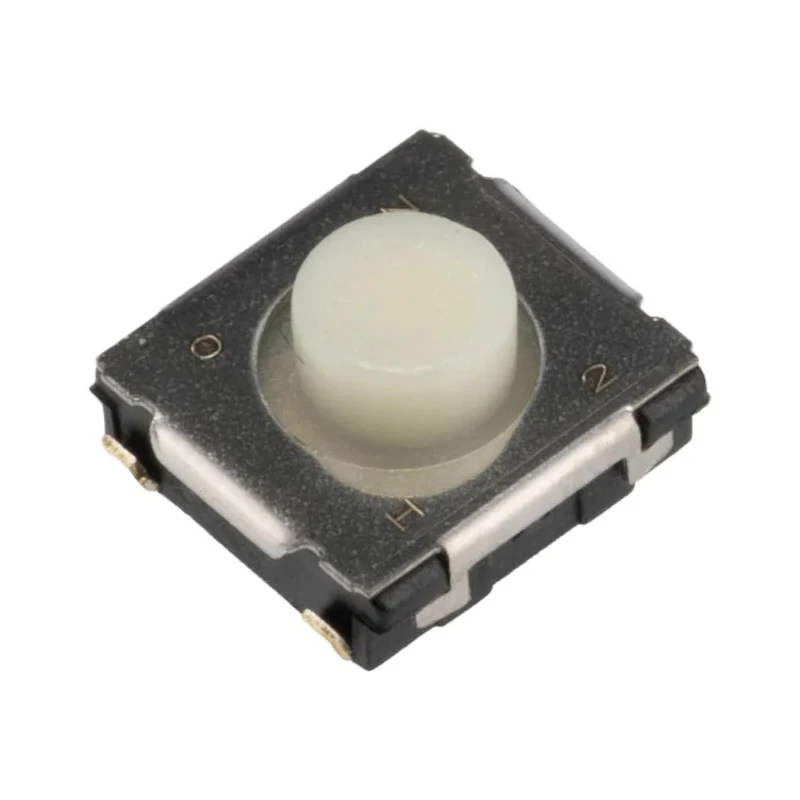

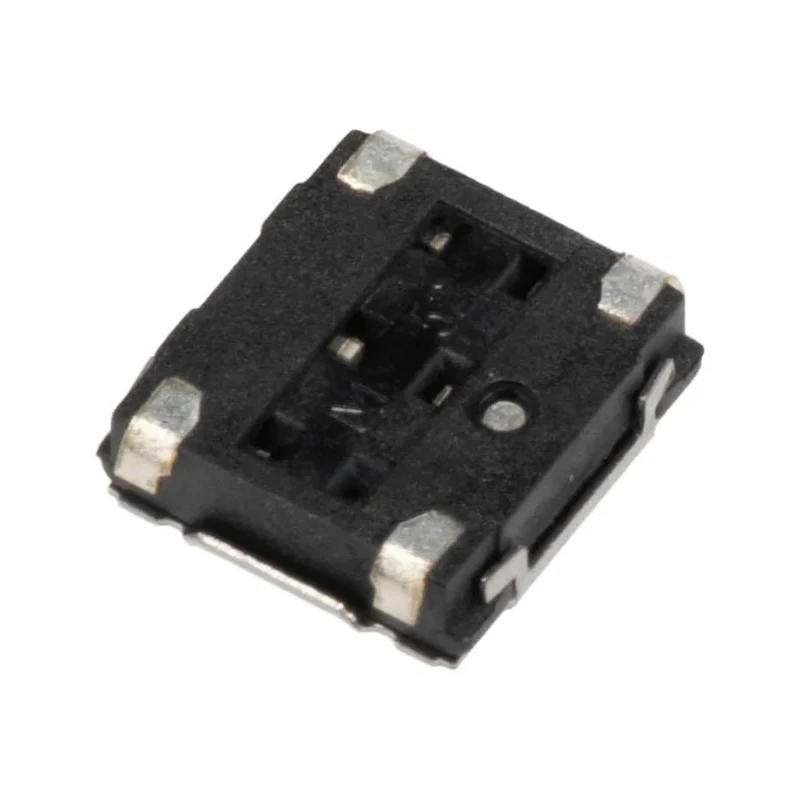

Panasonic White Tactile Switch Push Plate 3.1 mm SPST 20mA 15 V DC Surface EVQQ2F03W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3.1mm |
| Length | 6.6mm |
| Model | EVQQ2F03W |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 3.1mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1N |
| Mechanical Life | 1000000Cycles |
| Tact switch,SMT,SPST,no GND,white,1N O/FBrand | Panasonic |
Key Features
- The switch actuator is white and styled as a push plate with a length of 3.1 mm.
- Compact dimensions of 6.6 mm length and 6 mm width suit SMT applications.
- Designed for reliable operation with a mechanical life of 1,000,000 cycles.
- Operates safely between -40°C and 85°C, compliant with RoHS standards.
- Offers a sharp tactile click with low contact resistance and small bouncing noise.
- Ideal for use in electrical automation, keypad switches, and surface mount applications.
- The operating force is 1 Newton, ensuring a light touch actuation.
- Non-illuminated design suitable for compact electronic devices.
Product Description
Panasonic EVQQ2F03W is a White Tactile Switch Push Plate designed for surface mounting in electronic devices requiring momentary switch operation. This SPST switch supports a contact current of 20mA at 15 V DC and features a compact actuator length of 3.1 mm, delivering a precise tactile feedback.
With dimensions of 6.6 mm by 6 mm and a height of 3.1 mm, this switch is engineered for space-saving SMT applications in electrical automation and control systems. Its white push plate actuator provides a distinct and assuring tactile click, making it ideal for keyboard and keypad switches.
Designed to endure harsh operating conditions, it supports a temperature range from -40°C to 85°C and complies with RoHS standards ensuring environmental safety. The mechanical life expectancy reaches 1,000,000 cycles, emphasizing durability for industrial and commercial usage.
The switch has an operating force of 1 Newton making finger actuation effortless while maintaining high reliability and low contact resistance. Its surface mount terminal type facilitates efficient, automated assembly processes.
The actuator color is white with a push plate style for intuitive user input. SPST contact configuration ensures single pole single throw switching. Momentary action suitable for instant on/off applications. Compact size accommodates miniature electronic devices and industrial control panels.
Non-illuminated design to maintain low power consumption. Compliant with environmental and quality standards such as RoHS.
This Panasonic tactile switch is a trusted component for use in electrical, automation, manufacturing, and other industrial sectors requiring high precision switch components. It supports enhanced production efficiency and longevity in various equipment.
Explore more Tactile Switches and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch operates safely between -40°C and 85°C.
The mechanical life expectancy of this switch is 1,000,000 cycles.
The dimensions of this model are 6.6 mm in length, 6 mm in width, and 3.1 mm in height.
It features a single pole single throw (SPST) contact configuration.
The contact current rating for this tactile switch is 20mA at 15V DC.
The operating force required for actuation is 1 Newton.
This model supports surface mounting, making it suitable for SMT applications.
Yes, it complies with RoHS standards, ensuring environmental safety.
The actuator style is a push plate, designed for intuitive user input.
It is ideal for use in electrical automation, keypad switches, and surface mount applications.
This model features a surface mount terminal type, facilitating efficient assembly processes.
The actuator color is white, providing a distinct tactile feedback.
