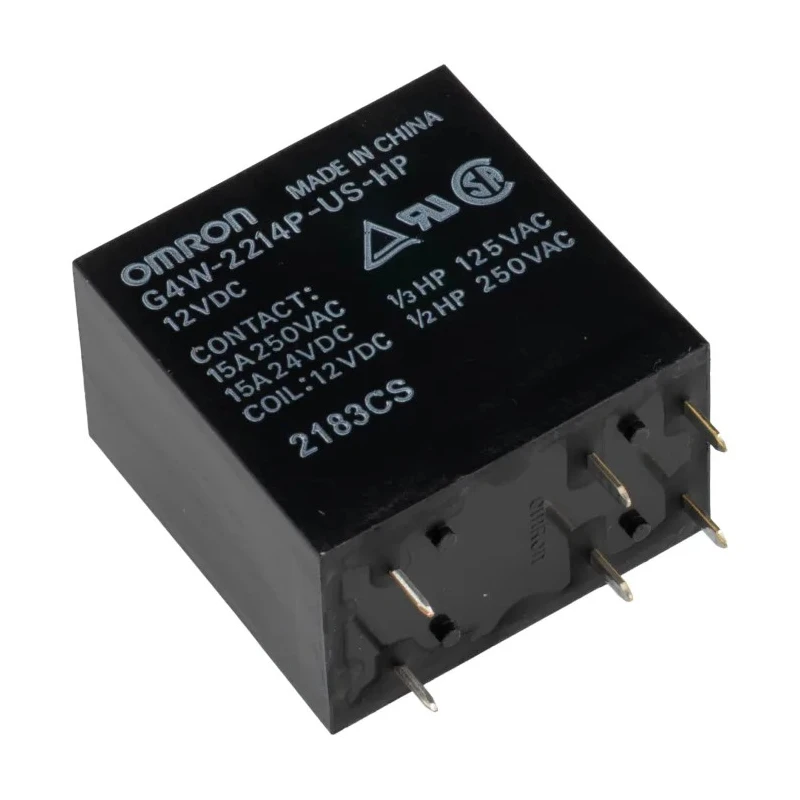

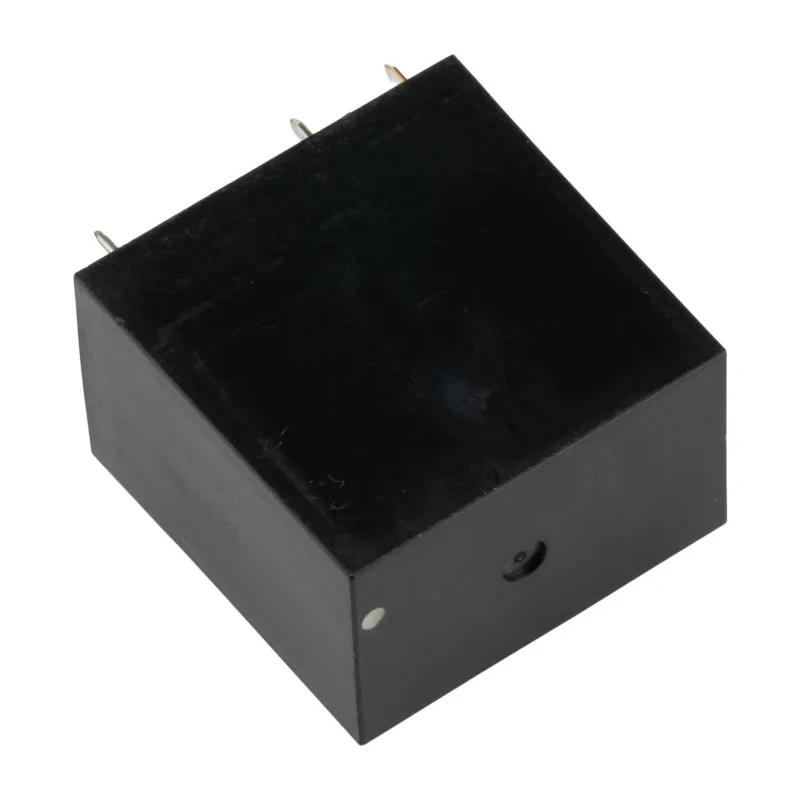

Omron PCB Power Relay 12V dc Coil 15A Switching Current DPST G4W-2214P-US-HP 12DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 30.5mm |
| Length | 30.5mm |
| Model | G4W-2214P-US-HP 12DC |
| Width | 19.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4W |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | VDE, CSA, UL, RoHS |
| Coil Resistance | 180Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.8W |
Key Features
- DPST contact configuration suitable for dual pole switching applications.
- PCB mount type with solder terminal for secure installation.
- Coil power consumption is low at 0.8W for energy efficiency.
- Switching capacity supports up to 24V DC and 250V AC voltages.
- Operating temperature range from -25°C to 55°C ensures reliable performance.
- Constructed with silver alloy contacts for durability and reliable conductivity.
- Impulse withstand voltage rated at 10,000V between coil and contacts.
- Conforms to international standards including VDE, CSA, UL, and RoHS compliance.
Product Description
Omron G4W-2214P-US-HP 12DC PCB Power Relay features a 12V DC coil and supports a switching current of 15A with a DPST contact configuration, making it ideal for power supply switching in industrial and automation applications.
This relay series offers an impulse withstand voltage of 10,000V between coil and contacts, ensuring safe and reliable operation. It comes with a low coil power consumption of 0.8W, optimizing energy efficiency for extended use.
The relay supports switching voltages up to 24V DC and 250V AC, making it versatile for a variety of electronic circuits. Its silver alloy contacts provide long service life and reliable conductivity under load conditions.
Designed for PCB mounting with solder terminals, the relay has a compact form factor with dimensions of 30.5mm in length and height, and 19.5mm in width. It operates reliably within a temperature range of -25°C to 55°C, suitable for diverse industrial environments.
The product meets several international standards, including VDE, CSA, UL, and RoHS, assuring quality, safety, and environmental compliance. DPST contact configuration. 12V DC coil voltage. 15A switching current capacity.
Low coil power consumption of 0.8W. Switching AC voltage up to 250V, DC voltage up to 24V. Silver alloy contact material for durability. Compact PCB mount design with solder terminals. Operating temperature range: -25°C to 55°C.
Conforms to VDE, CSA, UL, and RoHS standards.
This power relay is ideal for use in industrial machinery control, automation equipment, HVAC systems, and electrical panels requiring reliable power switching. It is designed to improve operational efficiency and safety in sensitive electronic circuits. Explore more high-quality Power Relays in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This model supports a maximum switching current of 15A.
The relay has dimensions of 30.5mm in length and height, and 19.5mm in width.
The relay features a DPST (Double Pole Single Throw) contact configuration.
It operates reliably within a temperature range of -25°C to 55°C.
It can switch AC voltages up to 250V and DC voltages up to 24V.
The coil power consumption is low at 0.8W, optimizing energy efficiency.
The contacts are constructed from silver alloy, providing reliable conductivity.
This model is designed for PCB mounting with solder terminals.
It conforms to VDE, CSA, UL, and RoHS standards, ensuring quality and safety.
The impulse withstand voltage is rated at 10,000V between the coil and contacts.
This relay is suitable for industrial machinery control, automation equipment, HVAC systems, and electrical panels.
