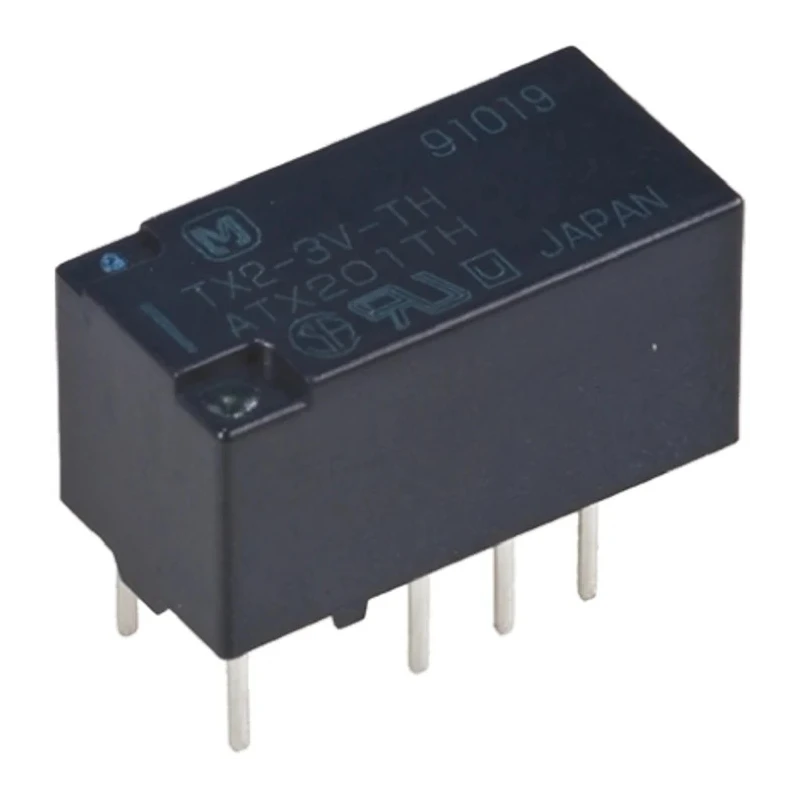

Panasonic PCB Signal Relay 4.5V DC Coil, 2A Switching Current, DPDT Contact Configuration TX2-L2-4.5V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L2-4.5V-TH |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX-TH |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
| UL recognised, | CSA,:BSI |
Key Features
- This relay provides a high contact capacity with a switching power of 60W.
- It has a coil resistance of 145Ω and coil power of 140mW ensuring high sensitivity.
- Designed with gold plated contacts to deliver low contact resistance of 100mΩ.
- Capable of switching AC voltage up to 250V and DC voltage up to 220V.
- The relay operates reliably from -40°C to 85°C ambient temperatures.
- It is fabricated with a sealed construction that supports automatic washing.
- Features through-hole terminal type and compact dimensions of 15mm length, 7.4mm width, and 8.2mm height.
- Typical applications include air conditioning control and high capacity control functions requiring high surge resistance.
Product Description
Panasonic TX2-L2-4.5V-TH PCB Signal Relay is a high-quality signal relay designed for electronic circuit board mounting with a 4.5V DC coil voltage and 2A switching current. It features a Double-Pole Double-Throw (DPDT) contact configuration, enabling control of multiple circuits with high reliability and efficiency.
This relay belongs to the TX Series with high surge resistance and outstanding vibration and shock resistance. Its sealed construction allows for automatic washing, ideal for industrial and commercial electronics applications such as air conditioning control and other high capacity control functions.
It operates over a wide temperature range of -40° C to 85° C, making it suitable for harsh environmental conditions. The relay utilizes gold plated contacts to achieve low contact resistance of 100mΩ, ensuring minimal power loss and enhanced durability.
With coil resistance of 145Ω and low coil power consumption of 140mW, it provides high sensitivity and energy efficiency. The relay switches AC voltages up to 250V and DC voltages up to 220V, handling a switching power of 60W. It has compact dimensions of 15mm length, 7.4mm width, and 8.2mm height, with through-hole terminals for secure PCB mounting.
High contact capacity with 2A switching current and 60W switching power. Gold plated contacts for low contact resistance and durability. Sealed construction enabling automatic washing. Wide operating temperature range (-40°C to 85°C) for reliability in varied conditions.
Low coil power of 140mW for high sensitivity. Compact size for versatile PCB integration. Compliant with RoHS standards ensuring environmental safety.
Manufactured in Japan, this relay meets recognized standards including UL and CSA, ensuring quality and safety for industrial, automation, electronic, and HVAC control applications. It is a robust solution for signal relay needs in laboratory, manufacturing, and commercial environments.
Explore more Panasonic Signal Relays and industrial electrical components at EnvMart for reliable performance and advanced technology integration.
