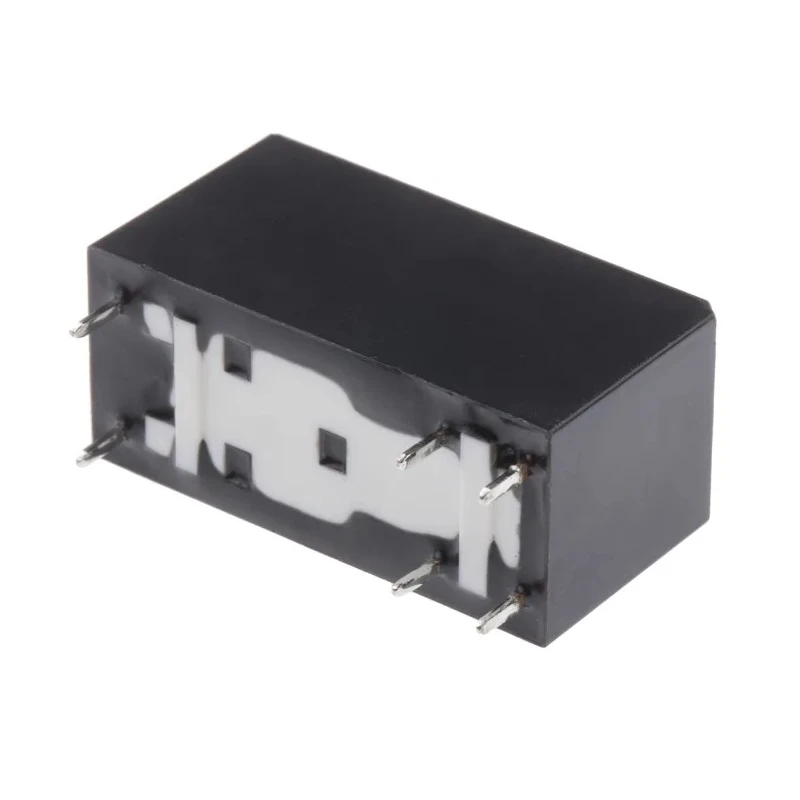

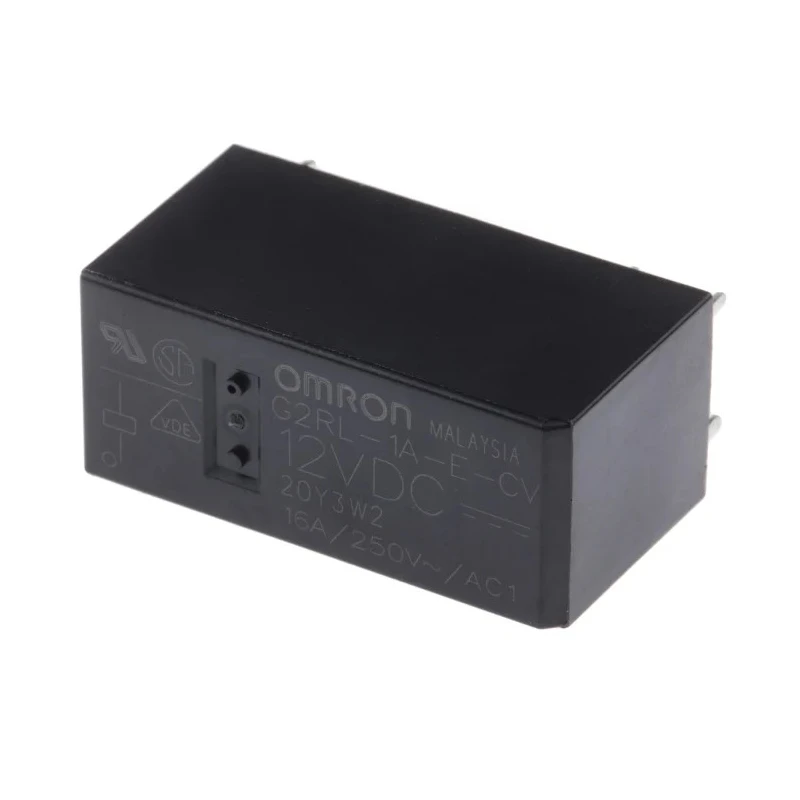

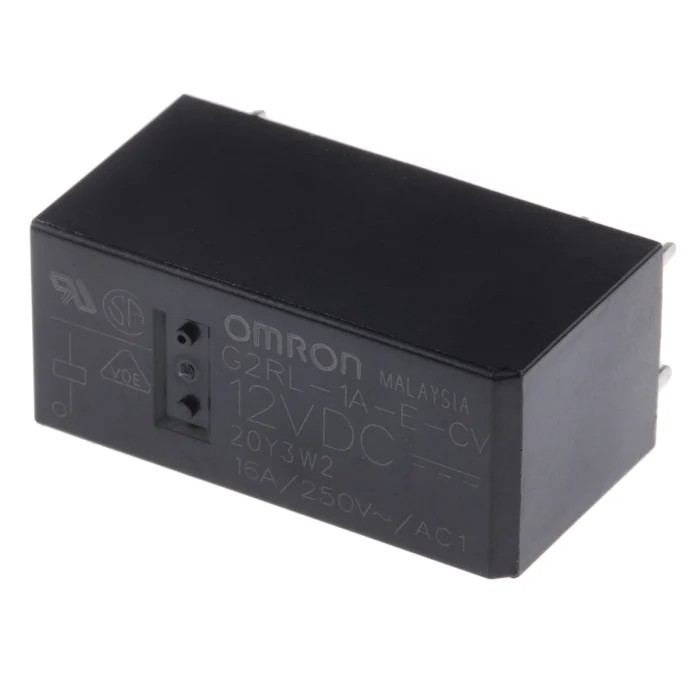

Omron PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST Contact Configuration G2RL-1A-E-CV DC12

Omron G2RL-1A-E-CV DC12 PCB Power Relay is a high-performance power relay designed for industrial and commercial electrical applications requiring reliable switching and control on printed circuit boards. With a coil voltage rating of 12V DC and a contact switching current up to 16A, this relay supports various control and automation tasks in manufacturing, HVAC, and instrumentation sectors.

The relay features a single-pole single-throw (SPST) contact configuration that is ideal for switching circuits requiring simple on/off control. The device is mountable directly onto PCBs using solder terminals for efficient and stable installation. Its compact dimensions - 15.7mm height, 12.7mm width, and 29mm length - make it suitable for compact and densely packed electronic assemblies.

Constructed with silver alloy contacts, the relay ensures low contact resistance (100mΩ) and superior electrical conductivity, enhancing performance and longevity. It supports switching voltages up to 300V DC and 440V AC, meeting diverse load requirements.

Operating temperature ranges from -40°C to 85°C allow usage across varied environmental conditions. The coil resistance of 360Ω and a coil power rating of 400mW ensure efficient operation with minimal power loss. Additionally, the relay meets international standards, including IEC/EN 60079-15, RoHS compliance, and VDE certification, ensuring safety and regulatory adherence for industrial deployment.

This relay's tracking resistance (Comparative Tracking Index or CTI) exceeds 250, offering excellent insulation protection against electrical tracking and enhancing overall safety in electrical circuits. It is suitable for applications in industrial automation, control panels, power management systems, electrical switching equipment, and other demanding environments requiring reliable power relay solutions.

Operates with a coil voltage of 12V DC for reliable switching performance. Features a single-pole single-throw (SPST) contact configuration for precise control. Designed for PCB mount applications with solder terminal types.

Supports switching currents up to 16A with a switching power rating of 4kVA. Works within operating temperature range from -40°C to 85°C for versatile usage. Compact low profile design of 15.7mm height facilitating space-saving PCB layouts.

Silver alloy contact material ensures durability and low contact resistance of 100mΩ. Complies with IEC/EN 60079-15, RoHS, and VDE standards for safety and quality assurance. Offers maximum switching DC voltage of 300V and AC voltage up to 440V AC.

Coil resistance is 360Ω with coil power dissipation of 400mW, optimizing power consumption. Tracking resistance CTI greater than 250 enhancing insulation performance.

This Omron G2RL Series power relay is an excellent choice for industrial, laboratory, manufacturing, and HVAC applications demanding dependable electrical switching and signal conditioning. Explore more Power Relays and related components in our diverse Electronics & Electricals category at EnvMart.
