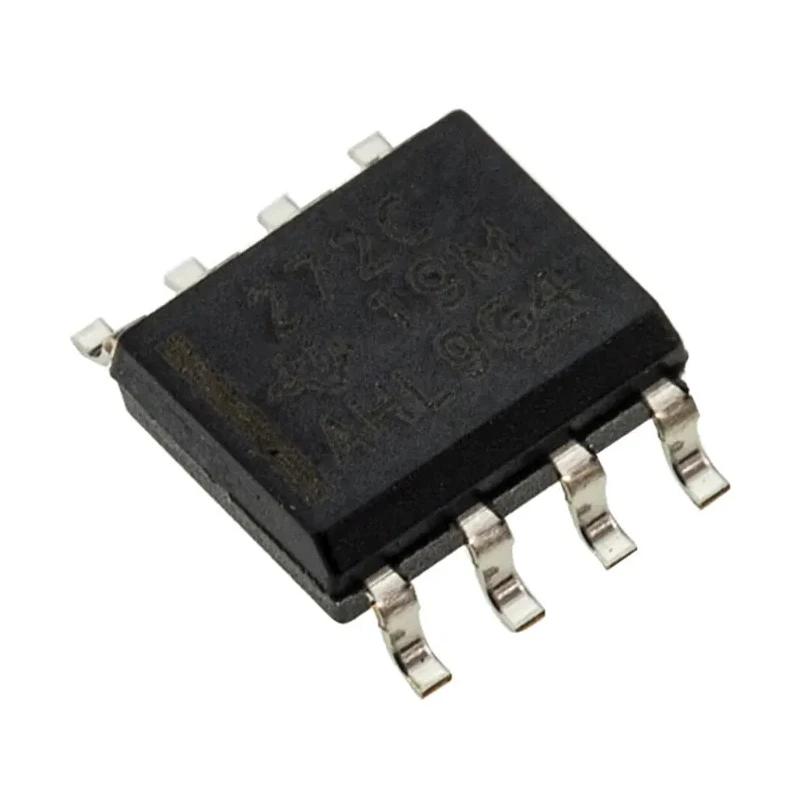

Texas Instruments Operational Amplifier 1.7 MHz Gain Bandwidth, 16V SOIC 8-Pin TLC272CDR

Texas Instruments TLC272CDR is a precision LinCMOS operational amplifier designed for high performance in electronic circuit applications. It features a gain bandwidth product of 1.7 MHz and is supplied in a compact 8-pin SOIC surface mount package suitable for modern PCB designs.

This operational amplifier operates reliably within a supply voltage range of 5V to a maximum of 16V, making it adaptable for various power supply conditions encountered in industrial and scientific electronics.

With a fast slew rate of 3.6 V/μs and low input offset voltage of 12 mV, the TLC272CDR ensures accurate and efficient signal amplification, essential for sensitive measurement equipment, signal conditioning circuits, and control systems.

The device supports dual channels in one package and maintains small form factor dimensions of approximately 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, facilitating compact and lightweight electronic assemblies.

The operational amplifier functions reliably in the industrial temperature range of 0°C to 70°C and is compliant with RoHS standards, ensuring environmentally friendly manufacturing and usage.

Output current capability of up to 30 mA and low input bias and offset currents (600 pA and 300 pA respectively) allow for stable and noise-minimized performance in low-signal environments.

Operates across a supply voltage range of 5V to 16V. Dual-channel design inside 8-pin SOIC package. Gain bandwidth product of 1.7 MHz supports medium-frequency applications. Slew rate of 3.6 V/μs facilitates rapid signal response.

Compact physical dimensions enable space-saving on PCBs. Input offset voltage and bias current optimized for precision tasks. Meets RoHS standards for reduced environmental impact. Temperature range suitable for standard industrial environments.

This operational amplifier finds applications in laboratory instrumentation, signal processing, industrial control systems, and embedded electronics where precision and reliability are required. Explore more Texas Instruments Operational Amplifiers and related electronic components on EnvMart for your engineering and development projects.
