Texas Instruments Operational Amplifier 1 MHz, 5-Pin Surface Mount SOT-23, 15.5V LMC7101BIM5/NOPB

Texas Instruments LMC7101BIM5/NOPB is a CMOS operational amplifier designed for precise and reliable signal amplification in various electronic circuits.

This device operates at a gain bandwidth product of 1 MHz and supports a minimum supply voltage of 5V up to a maximum of 15.5V, making it versatile for different power supply configurations.

The amplifier features very low input offset voltage and currents, with a typical input offset voltage of 0.11 mV, input bias current of 64 pA, and input offset current of 32 pA, ensuring accurate signal processing with minimal error.

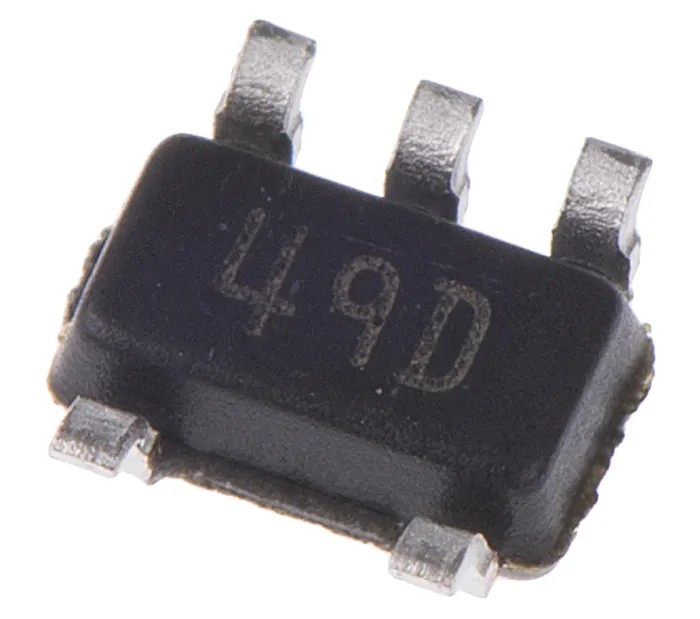

The device features a slew rate of 1 V/μs enabling its use in moderate-speed signal amplification scenarios. The compact 5-pin SOT-23 surface mount package measures 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height, enabling space-efficient PCB layouts.

It complies with the automotive standard AEC-Q100, highlighting its robustness for use in automotive and industrial applications. The single channel amplifier can deliver an output current of up to 11 mA, suitable for driving loads within typical operational amplifier limits.

This operational amplifier is ideal for use in industrial instrumentation, automotive electronics, communications equipment, and laboratory instrumentation requiring high precision and stability.

High gain bandwidth product of 1 MHz suitable for precision applications. Operates on a voltage supply range from 5V to 15.5V. Features low input offset voltage of 0.11 mV for accurate amplification. Low input bias current of 64 pA and offset current of 32 pA ensure minimal signal distortion.

Slew rate of 1 V/μs supports moderate-speed signal variations. Compact surface mount SOT-23 package with dimensions 2.92mm length, 1.6mm width, and 1.02mm height. Automotive-grade AEC-Q100 certified for high reliability in automotive applications.

Single channel operational amplifier with output current capability of 11 mA. Operating temperature range from -40°C to 85°C ensures suitability for harsh environments. Part of the LMC7101 series providing CMOS technology advantages like low power consumption.
