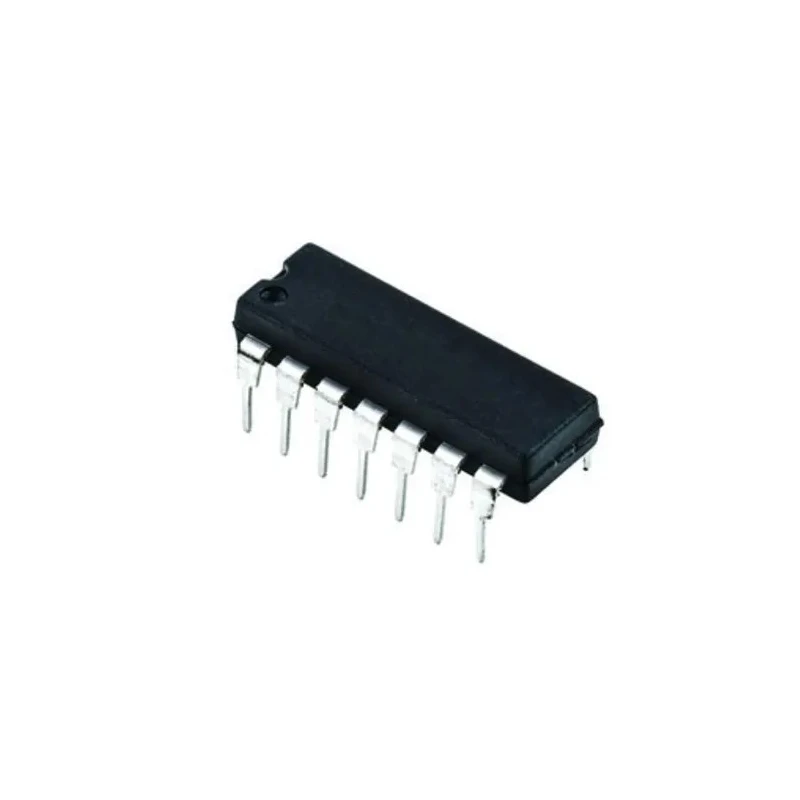

Texas Instruments Operational Amplifier 17 MHz 14-Pin 24V MDIP LM6144BIN/NOPB

Texas Instruments LM6144BIN/NOPB is a high speed operational amplifier optimized for applications requiring wide bandwidth and fast transient response. Featuring a 17 MHz gain bandwidth product and contained within a 14-pin MDIP package, this device supports four independent amplifier channels with through-hole mount capability, facilitating straightforward PCB integration.

The amplifier operates efficiently with a supply voltage range from 3V to 24V, accommodating diverse electronic system power designs. With input bias currents as low as 300 nA and an input offset voltage of 3.3 mV, it ensures high precision signal amplification and stability in demanding environments.

The device delivers a slew rate of 25 V/µs and can provide output currents up to 6 mA, making it suitable for driving moderate loads. Designed to withstand operating temperatures from -40°C to +85°C, it is reliable for use in a variety of industrial, commercial, and laboratory conditions.

Physical dimensions of 3.3 mm height, 6.35 mm width, and 19.05 mm length support compact circuit designs. Its compliance with RoHS directives assures environmentally responsible manufacturing and disposal.

This Operational Amplifier has four independent channels for versatile signal processing. The through hole MDIP package eases mounting to standard PCBs. Wide voltage supply range from 3V to 24V supports diverse applications.

Low input bias and offset voltages ensure high signal fidelity. Fast slew rate and output current capability enable responsive performance. Operating temperature range up to 85°C suitable for industrial use. Compact physical dimensions facilitating space-efficient layouts.

Meets RoHS environmental standards for safety and compliance.

This amplifier is ideal for precision analog circuits, electronic test instruments, lab equipment, and industrial control systems. With Texas Instruments’ reputation for reliability and quality, the LM6144BIN/NOPB provides a robust solution for demanding analog applications.
