Molex Right Angle Surface Female 1 Port Mini USB Type AB USB Connector USB 2.0 56579-0576

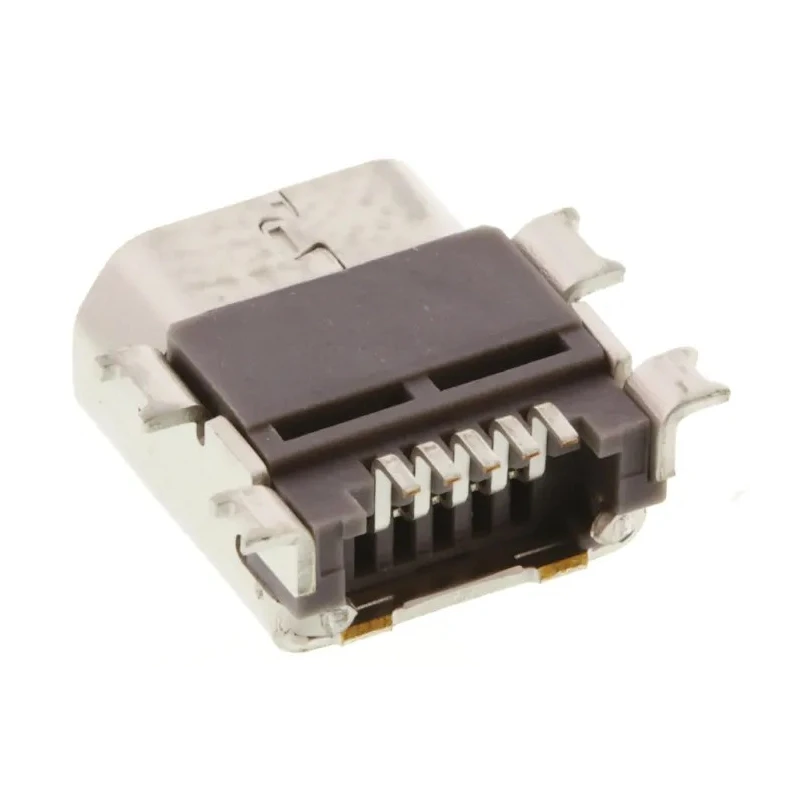

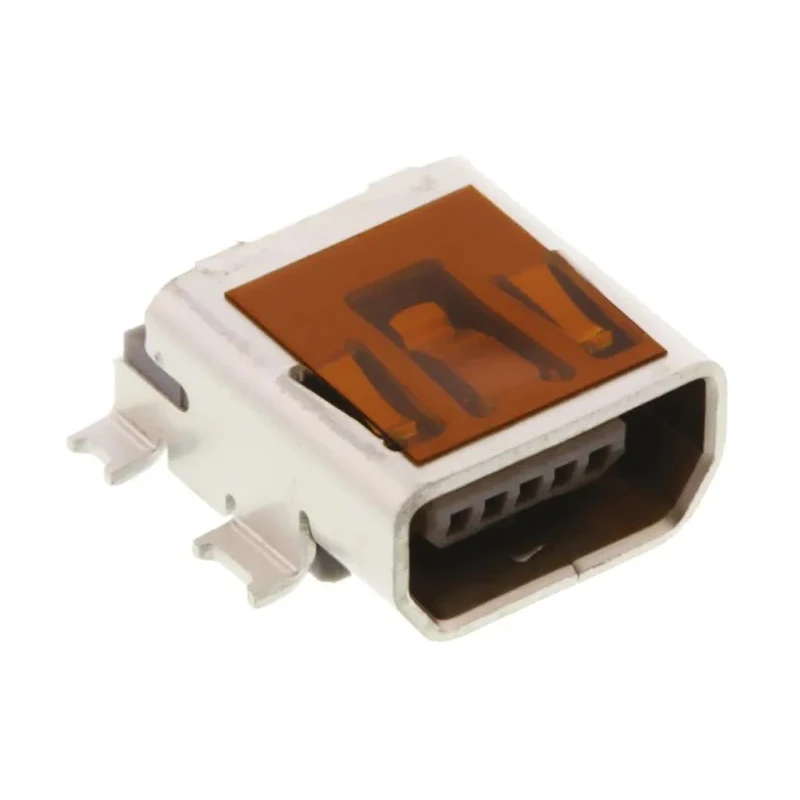

Molex 56579-0576 is a high-quality right angle surface mount female USB connector featuring a mini USB Type AB interface compliant with the USB 2.0 specification.

This connector supports USB On-The-Go (OTG) technology, meeting the Rev. 1.0 supplement requirements to enable seamless communication between mobile and portable devices. The design allows data transfer speeds up to 480 Mbps while maintaining a compact footprint thanks to the 5-pin pitch, which reduces mounting space on PCBs.

The connector is made from copper alloy contacts with solder termination ensuring reliable electrical performance and mechanical stability. Rated at 1 Amp current and a 30 Volt voltage rating, it is suitable for low power USB peripheral applications.

Operating temperature ranges from -40°C to 85°C enable use in diverse environments including industrial and commercial electronics. The right angle orientation and surface mount style facilitate flexible assembly and integration into various electronic designs.

These Molex USB connectors exhibit excellent RFI and EMI shielding properties, ensuring signal integrity for sensitive data communications. The durability is rated at 5000 mating cycles, providing long service life in portable and mobile equipment.

This product is manufactured in China and forms part of the Molex On-The-Go series. Supports USB OTG Rev. 1.0 with 480 Mbps speed. Compact 5-pin pitch reduces PCB footprint. 1A current and 30V voltage rating. Copper alloy contacts with solder termination.

Wide operating temperature range from -40°C to 85°C. Right angle, surface mount female connector. Durability of 5000 mating cycles. Ideal for usage in electronics manufacturing, industrial equipment, computing devices, and mobile technology applications.
