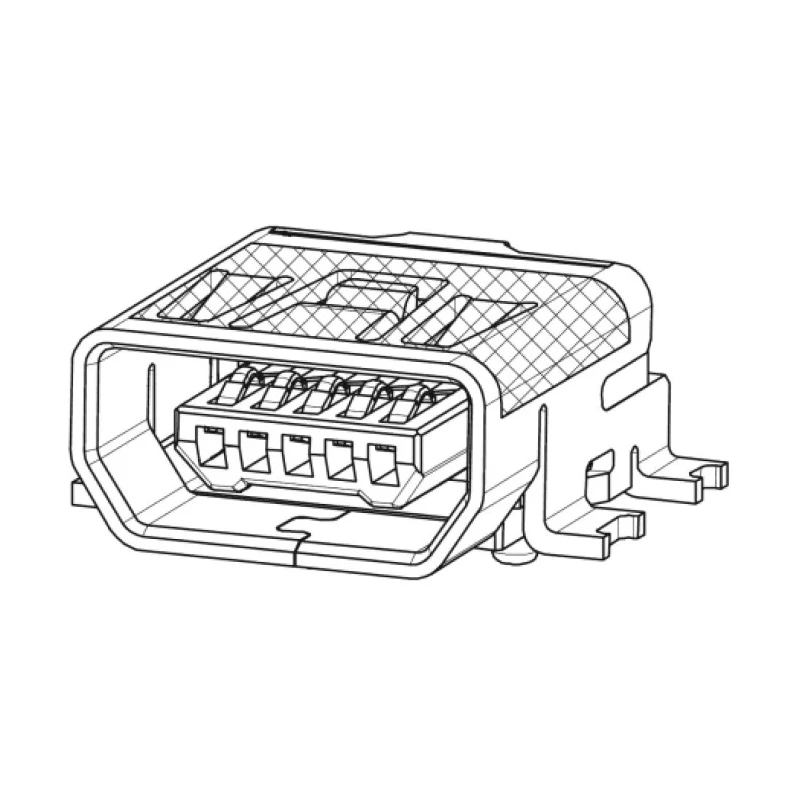

Molex Right Angle Surface Female 1 Port Micro USB Type AB Connector USB 2.0 67803-8020
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | Micro USB Type AB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
| TE Connectivity Right Angle, SMT Mount Mini USB Connector, ReceptacleBrand | TE Connectivity |
Key Features
- Supports USB On-The-Go (OTG) functionality for enhanced device connectivity.
- Operates at speeds up to 480 Mbps, ensuring efficient data transfer.
- Constructed with copper alloy contacts for reliable electrical performance.
- Rated for 30V voltage and 1A current for safe operation.
- Through-hole solder termination for secure mounting on PCBs.
- Compact right angle orientation reduces board space requirements.
- Suitable for applications requiring USB 2.0 compliance with high EMI/RFI resistance.
Product Description
The Molex 67803-8020 is a Right Angle Surface Mount Female USB Connector featuring a Micro USB Type AB interface compatible with USB 2.0 standards. It is designed to support USB On-The-Go (OTG) supplement Rev. 1.0, enabling the connection of various portable and mobile devices.
This connector operates at data transfer speeds up to 480 Mbps, facilitating rapid communication between devices. Its 5-pin design includes one ID pin and offers excellent RFI and EMI performance, which is crucial for maintaining signal integrity in complex electronic environments.
Constructed from a durable copper alloy contact material, it is rated for a working voltage of 30V and a maximum current of 1A. The connector supports a minimum operating temperature of 0°C and a maximum of 50°C, making it suitable for a range of environmental conditions.
The termination type is solder through-hole, ensuring a strong mechanical and electrical connection to printed circuit boards (PCBs). Its right angle orientation and compact size help optimize board layouts, minimizing space usage.
The Model 67803-8020 is ideal for applications in consumer electronics, mobile phones, tablets, and other portable devices requiring compact USB connectivity solutions. This product complies with electrical standards but carries no additional hazardous area certifications.
Supports USB On-The-Go (OTG) connectivity. Operates up to 480 Mbps data transfer rate. 5-pin Micro USB Type AB configuration with ID pin. Copper alloy contact material for durability. Solder through-hole mounting for reliability.
Rated 30V and 1A for safe electrical use. Compact right angle design for space saving.
This connector is manufactured in China and is new product condition. It is a preferred component for electronics manufacturers focusing on compact, efficient USB interface integrations.
Explore EnvMart for a comprehensive selection of USB Connectors and related electronic components to support your manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at data transfer speeds up to 480 Mbps, facilitating rapid communication between devices.
This connector features a Micro USB Type AB interface, compatible with USB 2.0 standards.
It is rated for a working voltage of 30V and a maximum current of 1A.
The termination type is solder through-hole, ensuring a strong mechanical and electrical connection to printed circuit boards (PCBs).
The connector supports a minimum operating temperature of 0°C and a maximum operating temperature of 50°C.
It is constructed with copper alloy contacts for reliable electrical performance.
It features a right angle orientation, which helps to reduce board space requirements.
This connector has one port, designed for USB connectivity.
It is ideal for applications in consumer electronics, mobile phones, tablets, and other portable devices requiring compact USB connectivity solutions.
It offers excellent RFI and EMI performance, which is crucial for maintaining signal integrity in complex electronic environments.
This product is manufactured in China.
This connector is a female USB type.
