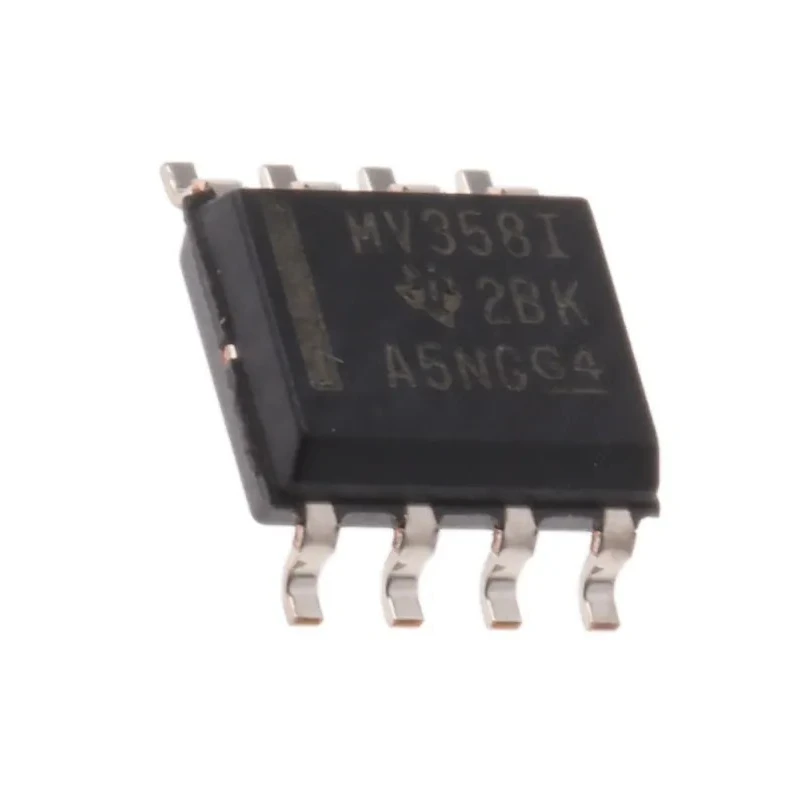

Texas Instruments Operational Amplifier, 1 MHz Gain Bandwidth, 2 Channels, 8-Pin SOIC Package LMV358ID

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier, 1 MHz Gain Bandwidth, 2 Channels, 8-Pin SOIC Package LMV358ID

Name: Texas Instruments Operational Amplifier, 1 MHz Gain Bandwidth, 2 Channels, 8-Pin SOIC Package LMV358ID
Brand: Texas Instruments
SKU: 312218
Price: 80.88 INR
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	4.9mm
Model	LMV358ID
Width	3.91mm
Mount Type	Surface
Series	LMV358
Output Current	40mA
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS, REACH
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	250 nA
Vos - Input Offset Voltage	7 mV
Slew Rate	1V/μs
Input Offset Current	50 nA

Key Features

Operates over a supply voltage range of 3V to 5.5V.
Input bias current of 250 nA ensures low leakage currents.
Input offset voltage is typically 7 mV for accurate signal processing.
Slew rate of 1 V/μs enables fast response to signal changes.
Wide operating temperature range from -40°C to 85°C supports industrial environments.
Low input offset current of 50 nA improves precision in measurement applications.
Output current capability of 40 mA suitable for driving moderate loads.
Compact dimensions with 4.9 mm length, 3.91 mm width, and 1.58 mm height SOIC package.

Product Description

Texas Instruments LMV358ID is a low voltage operational amplifier designed for signal amplification in various semiconductor and electronics applications. Featuring a 1 MHz gain bandwidth product and dual channels, it fits in an 8-pin SOIC surface mount package, making it suitable for compact PCB designs.

This operational amplifier operates efficiently with a power supply from 3V up to 5.5V. It provides low input bias currents of 250 nA and input offset voltage around 7 mV, enabling high precision and minimal signal distortion in analog circuits.

The device's slew rate of 1 V/μs allows it to accurately track fast-changing input signals, making it suitable for signal conditioning tasks in instrumentation and control systems. With an input offset current of 50 nA and an output current capacity of up to 40 mA, the LMV358ID effectively drives moderate loads with stability.

Designed to withstand industrial conditions, it operates over a wide temperature range from -40°C to 85°C, ensuring reliable performance in varying environments. The compact SOIC package dimension of 4.9 mm length, 3.91 mm width, and 1.58 mm height supports space-constrained applications.

Compliance with RoHS and REACH standards guarantees the product's adherence to environmental regulations, making it suitable for green electronics manufacturing. Operates over 3V to 5.5V supply voltage with low power consumption.

1 MHz gain bandwidth product ensures precise amplification. Dual channel design supports versatile application needs. Low input bias and offset currents for high accuracy. Wide industrial operating temperature range for reliability.

Compact and lightweight 8-pin SOIC surface mount package. RoHS and REACH compliant for environmentally conscious manufacturing.

This Operational Amplifier is ideal for use in industrial electronics, instrumentation, signal processing, and semiconductor applications. Browse EnvMart’s Electronics category for more Texas Instruments amplifiers and related components.
