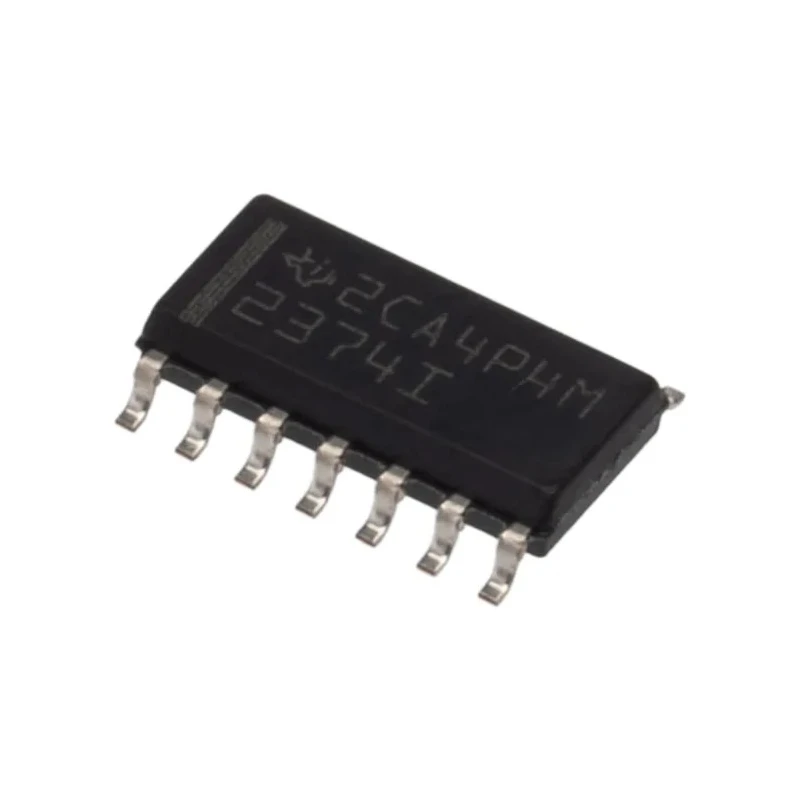

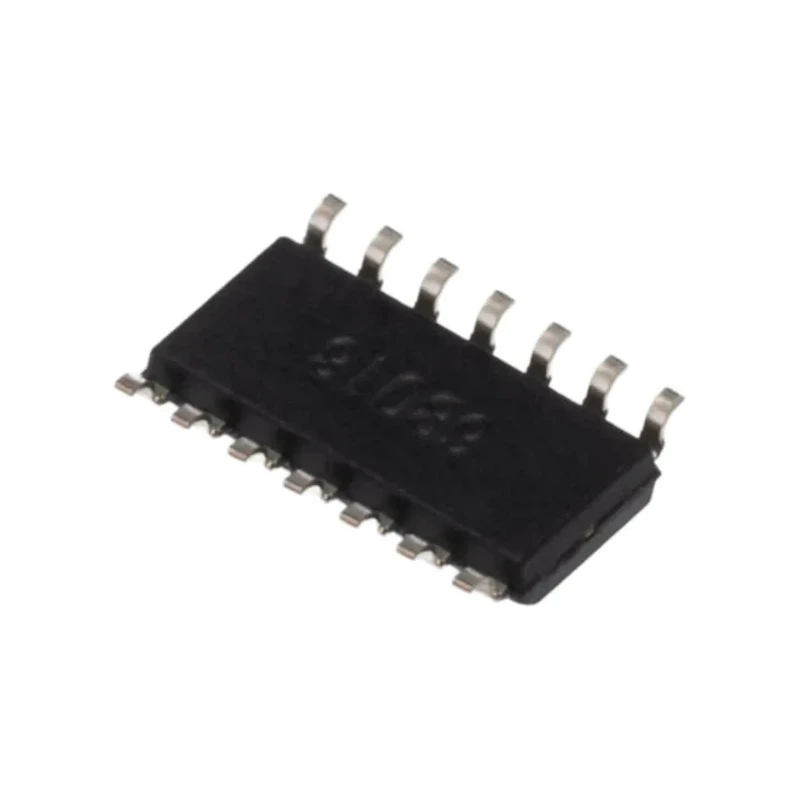

Texas Instruments Operational Amplifier 3 MHz, 14-Pin SOIC, 16 V TLV2374ID

Texas Instruments TLV2374ID operational amplifier is a reliable and precise low voltage CMOS chip designed to deliver consistent signal amplification across various industrial, automotive, and electronic applications. It features a 3 MHz gain bandwidth product and comes in a 14-pin SOIC package which is surface mount compatible, easing PCB assembly processes.

This quad-channel amplifier supports a supply voltage range from 3 V minimum to a maximum of 16 V, enabling diverse use in varied power conditions including automotive and industrial environments. Its input bias current is a low 1 nA, which reduces signal distortion and ensures fidelity in sensitive circuit designs.

Operating temperature spans from -40°C to 125°C, meeting stringent requirements for harsh operational conditions. The device achieves a slew rate of 2.4 V/μs and input offset voltage of 6 mV, contributing to fast and accurate signal handling. It also supports an output current of up to 100 mA, making it suitable for driving moderate load circuits.

This model complies with relevant RoHS regulations and meets the automotive standard AEC-Q100, ensuring quality and compatibility with automotive electronics.

Typical applications of the TLV2374ID include industrial control systems, automotive signal processing, instrumentation, and communication equipment where reliable, highly precise amplification is critical.

Features a low voltage CMOS architecture for efficient performance. Consists of 4 channels in a single device for multi-signal amplification. Supports supply voltage ranging from 3 V to 16 V. Input bias current is minimal at 1 nA, ensuring high precision.

Operating temperature ranges from -40°C to 125°C for industrial applications. Provides a slew rate of 2.4 V/μs for fast signal response. Maintains input offset voltage at 6 mV for accuracy. Complies with RoHS standards and automotive standard AEC-Q100.

Output current capability up to 100 mA supports versatile loads. Explore the wide range of Texas Instruments products and Operational Amplifiers on EnvMart to enhance your electronic designs with quality components.
