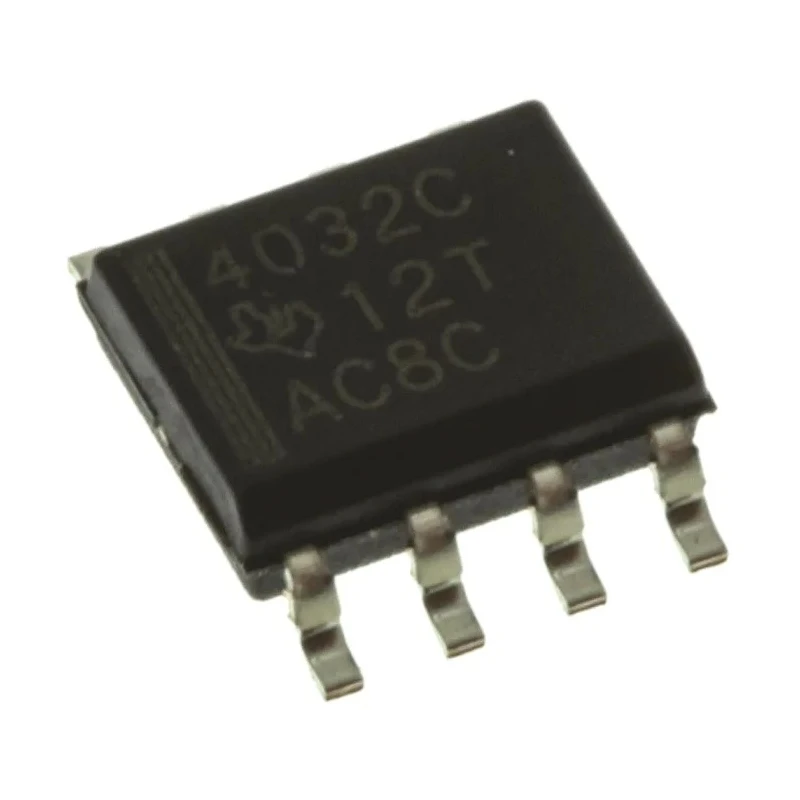

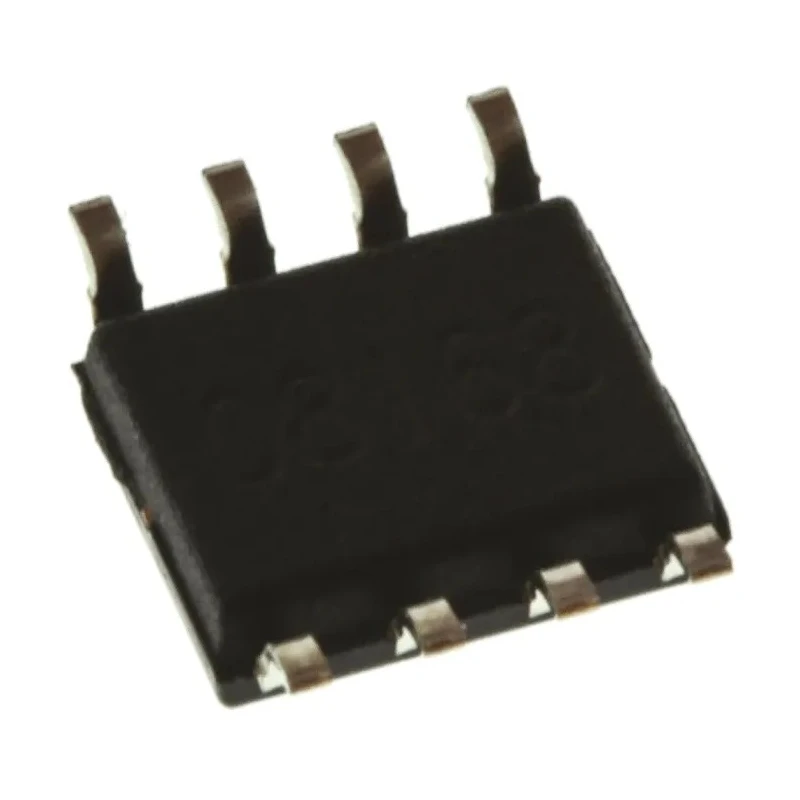

Texas Instruments Operational Amplifier 120 MHz 8-Pin 16V SOIC THS4032CD

Texas Instruments THS4032CD Operational Amplifier is a precision device engineered for high-speed signal amplification and low noise performance. Packaged in a compact 8-Pin SOIC surface mount form factor, it supports dual channel operation, enabling efficient processing of analog signals in demanding industrial and electronic systems.

With a gain bandwidth product of 120 MHz, this operational amplifier is suitable for high-frequency applications requiring stability and rapid response. Its supply voltage range of 10V to 16V provides design flexibility for various electronic circuit configurations.

The input bias current is minimized to 8 microamps, reducing signal distortion, while the input offset voltage is kept low at 3 mV to ensure accurate signal amplification. Its slew rate of 80 V/μs facilitates fast transient response, making it ideal for precision analog computing, active filtering, and data acquisition systems.

Operating reliably within a temperature range of 0°C to 70°C, the THS4032CD is designed for robust performance in general industrial and laboratory environments. Its output current of 90 mA supports driving loads and interfacing with other circuit elements effectively.

The amplifier measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, ensuring compact board space utilization. Although not certified for automotive standards, it is well-suited for standard semiconductor applications.

Operates at 120 MHz gain bandwidth product for high-speed signal processing. Dual channels in an 8-Pin SOIC surface mount package provide compact efficiency. Wide supply voltage range of 10V to 16V accommodates diverse designs.

Low input bias current and offset voltage enhance signal fidelity and precision. Fast slew rate enables rapid waveform changes without distortion. Operating temperature suits typical industrial and laboratory conditions.

Supports 90 mA output current for effective interfacing with loads. Compact dimensions ensure space-efficient PCB design.

This operational amplifier is an excellent component for electronic engineers and manufacturers focusing on precision analog circuits, instrumentation amplifiers, and signal conditioning in industrial, laboratory, and communication equipment sectors. Explore more Operational Amplifiers and semiconductor components for your design needs at EnvMart.
