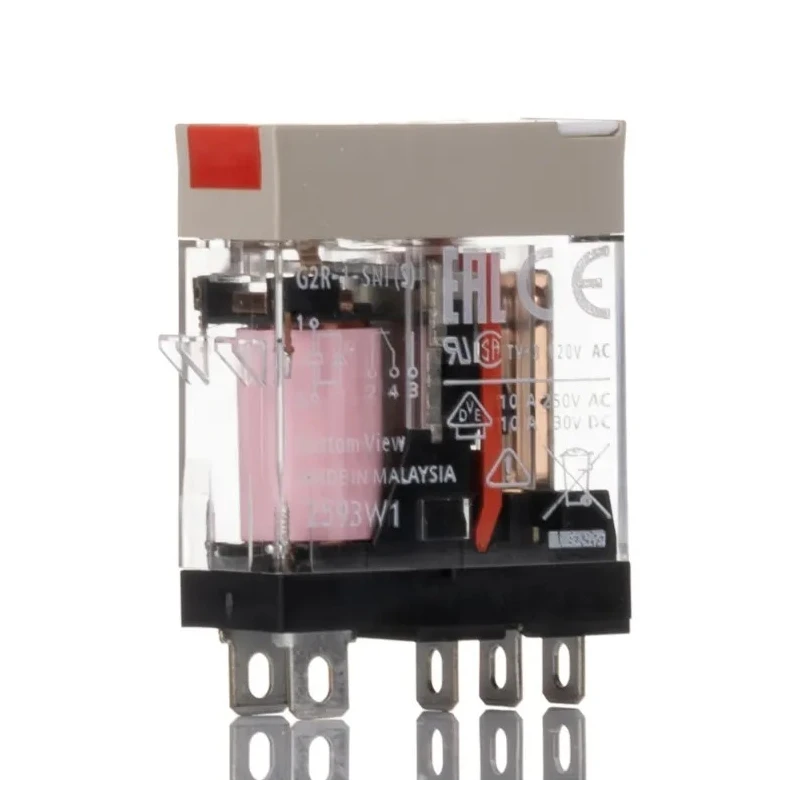

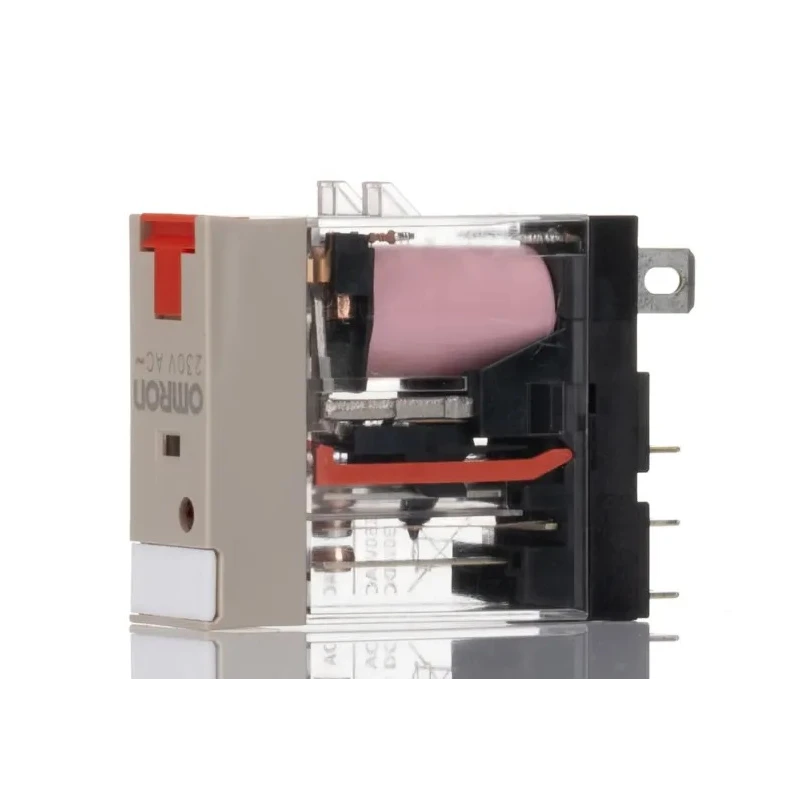

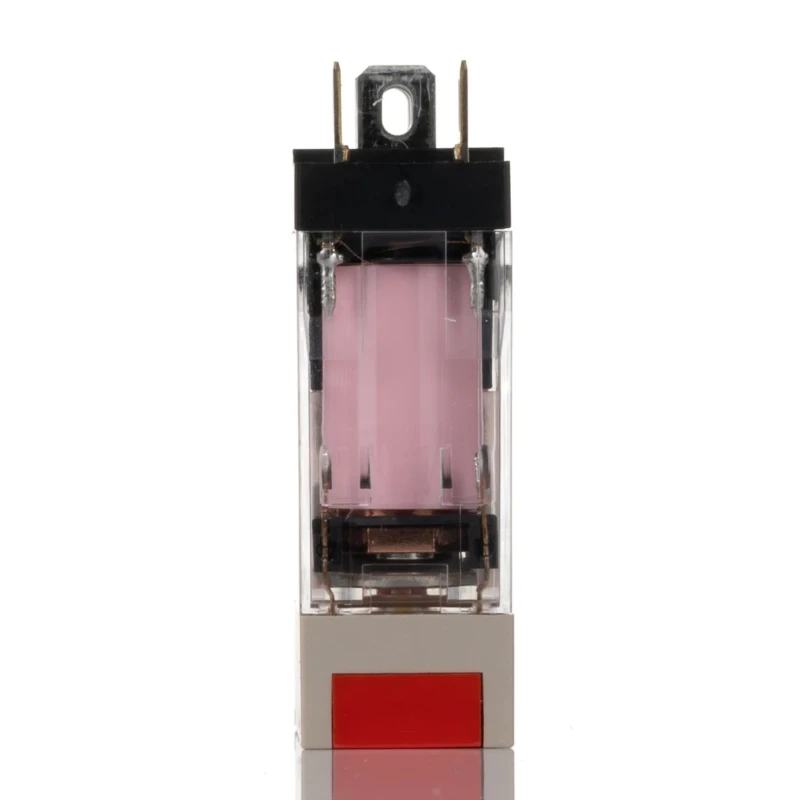

Omron Power Relay, 230V ac Coil, 10A Switching Current, SPDT, Series G2R G2R-1-SNI 230VAC (S)

Omron G2R-1-SNI 230VAC (S) power relay is designed for precise circuit control in industrial, robotics, pharmaceutical, and HVAC applications. This relay features a single pole double throw (SPDT) contact configuration with a coil voltage of 230V AC and a switching current of 10A. Its 900mW coil power consumption and robust construction are suitable for demanding operating environments.

The relay's operating temperature range from -40°C to 70°C enables use in harsh conditions. Compact form factor measuring 35.5mm in height, 29mm in length, and 13mm in width facilitates installation in space-limited control panels. Silver alloy contacts provide durability with a contact resistance of 100mΩ, while coil to contact isolation rating of 5000Vac ensures electrical safety and reliability.

With a mechanical lifespan of 10 million cycles and a rapid operating time of 15 milliseconds, this relay offers dependable performance over extended periods. Its transparent housing allows for visual inspection, reducing maintenance efforts. The plug-in solder terminal type ensures secure mounting without requiring specialized tools.

Typical applications include industrial engineering systems, robotic control mechanisms, pharmaceutical manufacturing equipment, and HVAC control setups. The G2R series by Omron is compliant with UL, CE, EN, IEC, and RoHS standards, underlining its quality and safety certifications. DIN rail and PCB sockets are available separately to accommodate various installation preferences.

This assembly weighs approximately 20 grams, lending itself to low strain on circuitry. The relay can replace earlier G2R-SN series models, though height clearance should be verified in such cases.

The relay supports switching DC voltage of 125V and AC voltage up to 380V for varied control needs. The coil resistance is rated at 27.2 kΩ, contributing to its electrical characteristics. Its power consumption of 0.9 VA at 60 Hz ensures energy efficiency in operation.

For users requiring dependable Power Relays capable of handling frequent switching cycles with safety and precision, this Omron G2R-1-SNI 230VAC (S) model is a versatile and robust solution. Explore further electronic and electrical components within the EnvMart catalog to complement this relay in your system design.
