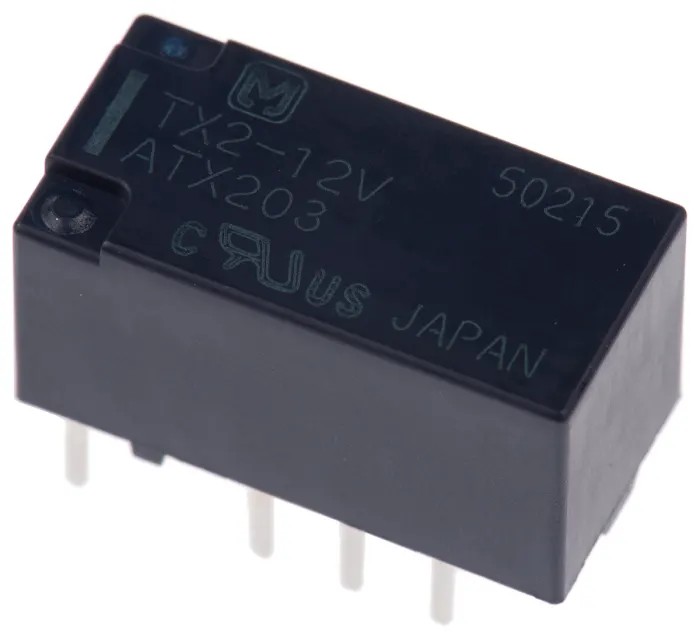

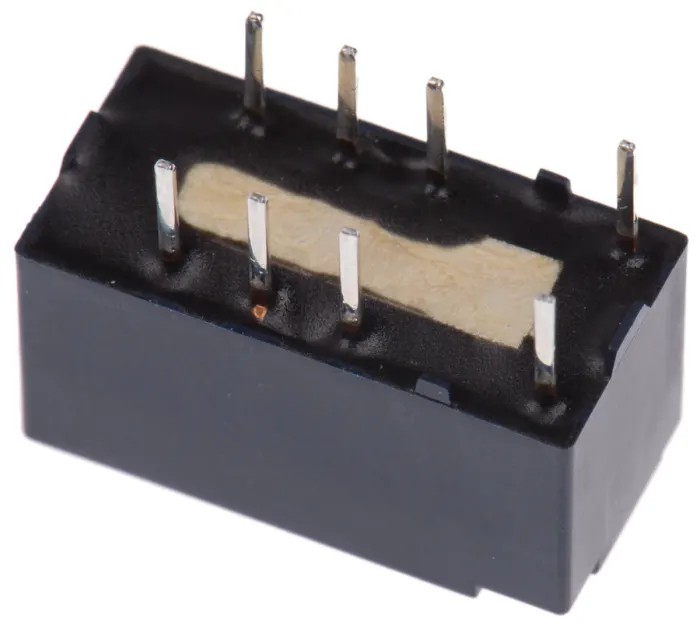

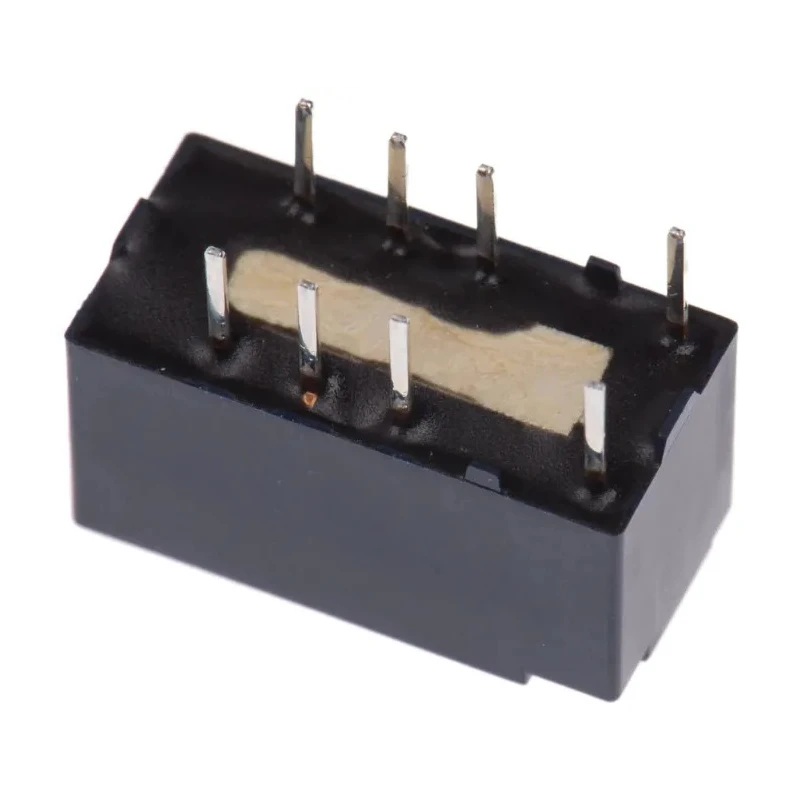

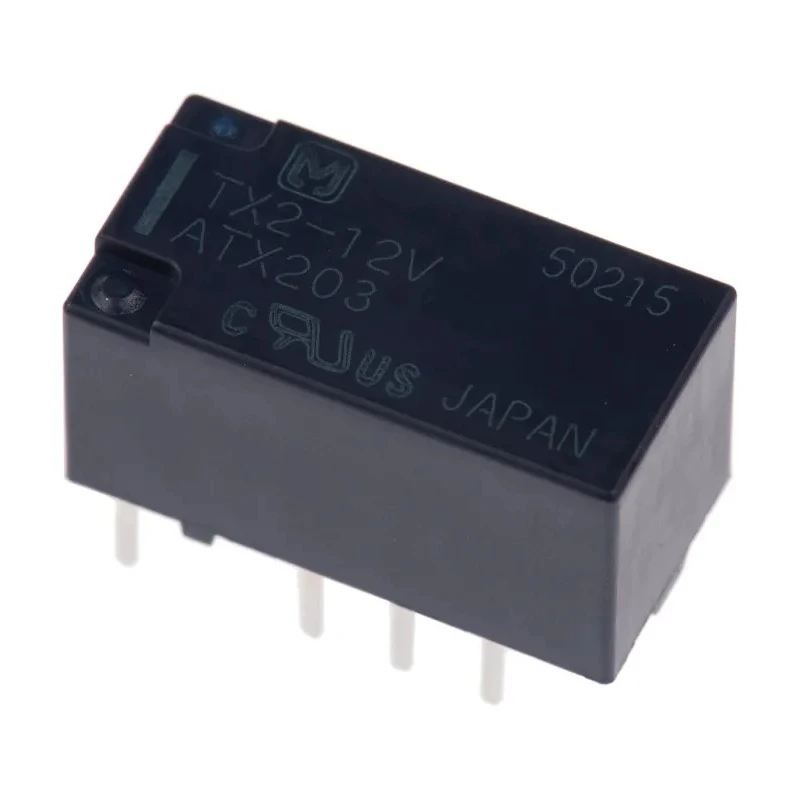

Panasonic PCB Signal Relay, 12V DC Coil, 2A Contact, DPDT, Gold Plated Contacts, PCB Terminal, SY Series TX2-12V

Panasonic TX2-12V PCB Signal Relay is a high-performance relay with a 12V DC coil and double-pole double-throw (DPDT) contact configuration, designed for sophisticated switching control on printed circuit boards. Built with gold plated contacts and PCB terminals, this relay ensures reliable signal switching with a current rating of 2A and can handle both AC and DC voltages up to 220V.

The relay features a sealed construction providing high resistance to vibration and shock and is suitable for automatic washing processes during production, enhancing durability and cleanliness. Its compact footprint with dimensions of 15mm length, 7.4mm width, and 8.2mm height makes it ideal for densely packed electronic assemblies.

With coil resistance of 1020 ohms and coil power consumption of only 140mW, the TX2-12V relay operates efficiently in control circuits. It functions reliably over a wide temperature range from -40°C to 85°C, enabling use in industrial, telecommunications, security, and medical environments requiring stable operation under variable conditions.

This relay is designed for high contact capacity suitable for telecommunication and measurement equipment. Gold plated contacts and PCB terminals ensure excellent electrical performance and long service life. Sealed construction resists environmental contaminants and allows for automatic washing.

Supports switching of both AC and DC signals with a current rating of 2A at 220V. Compact dimensions allow integration in space-constrained PCB layouts. Wide operating temperature range guarantees dependable switching in harsh conditions.

RoHS compliant, manufactured in Japan adhering to strict quality controls.

Panasonic relays like the TX2-12V provide reliable, efficient signal switching for industrial, laboratory, telecommunication, security, and medical applications. They are essential components in control systems requiring durable and high-quality relays. Browse Panasonic relays and signal conditioning components at EnvMart for high performance and industry-grade quality.
