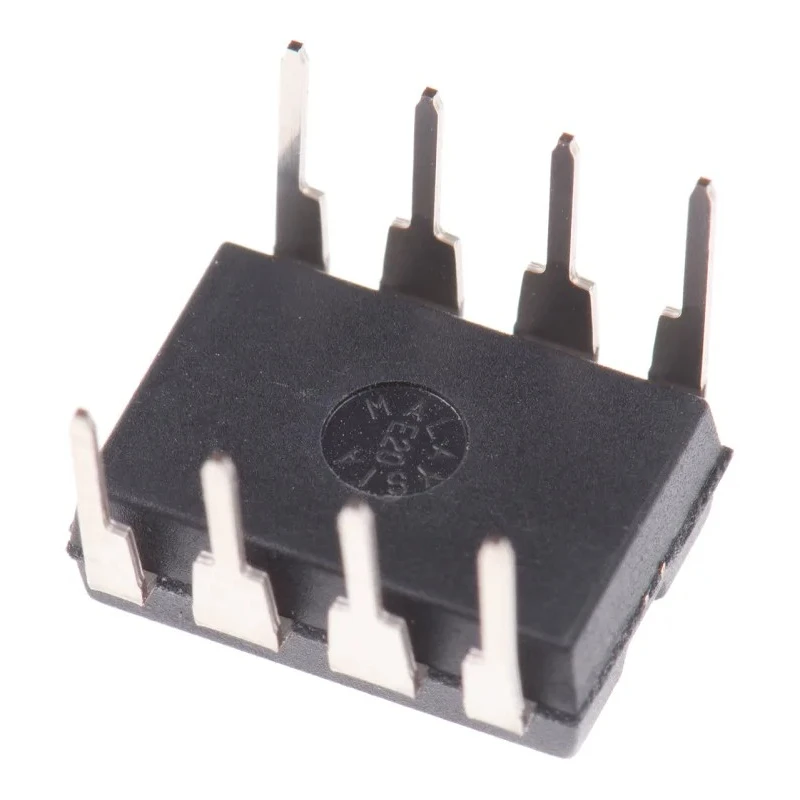

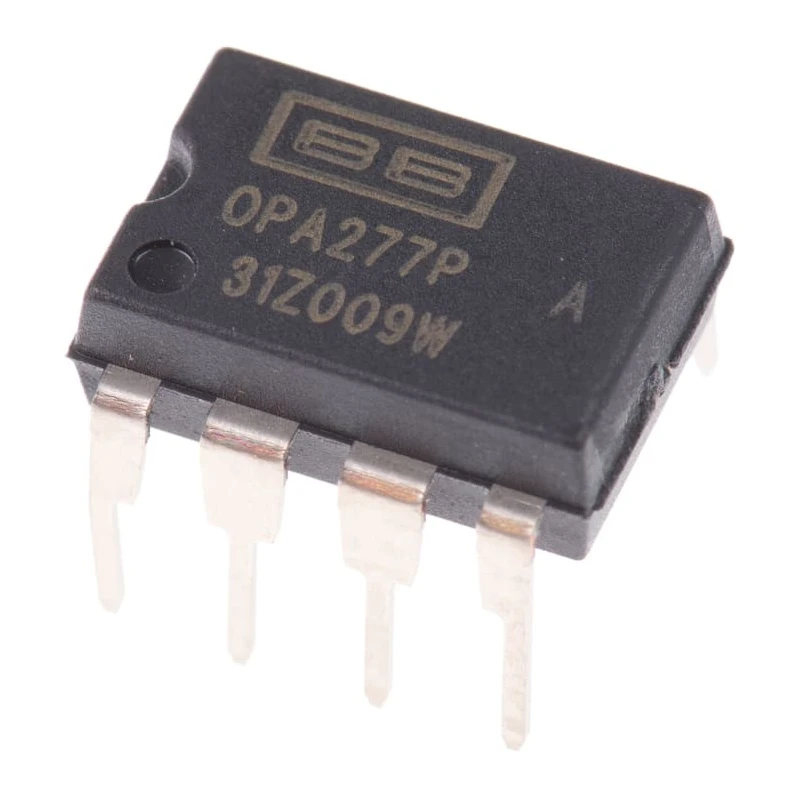

Texas Instruments Operational Amplifier 1 MHz, 8-Pin 18V PDIP OPA277PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | OPA277PA |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA277 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | ±4 nA |
| Slew Rate | 0.8V/μs |
Key Features
- Precision operational amplifier suitable for high accuracy applications.
- Single channel with 8 pins in a through-hole PDIP package.
- Gain bandwidth product of 1 MHz ensures reliable frequency response.
- Operating voltage range from 2V to 18V for flexible power supply options.
- Low input bias current of ±4 nA for sensitive signal amplification.
- Input offset voltage maintained within ±50 µV for precision performance.
- Slew rate of 0.8 V/μs for efficient signal response.
- Operational temperature range from -40°C to 85°C for reliability in varied environments.
Product Description
Texas Instruments OPA277PA is a precision operational amplifier designed for demanding applications requiring high accuracy and stability. Featuring a gain bandwidth product of 1 MHz and packaged in an 8-pin PDIP form factor, it offers robust performance for signal amplification and filtering needs.
This single channel amplifier operates with supply voltages from 2V to 18V, making it versatile for various electronic circuit designs. The device exhibits extremely low input bias current of ±4 nA and a minimal input offset voltage of ±50 µV, ensuring high fidelity and precise signal processing.
The OPA277PA provides a slew rate of 0.8 V/μs and functions reliably across a broad temperature range of -40°C to 85°C. Its compact dimensions (9.81 mm length, 6.35 mm width, and 4.57 mm height) facilitate easy integration on through-hole PCBs.
Common applications include instrumentation amplifiers, active filters, precision integrators, and transducer signal conditioning in industrial, laboratory, and commercial electronics. It is ideal for systems demanding low noise and accurate amplification in measurement and control instruments.
Precision operational amplifier suitable for high accuracy applications. Single channel with 8 pins in a through-hole PDIP package. Gain bandwidth product of 1 MHz ensures reliable frequency response. Operating voltage range from 2V to 18V for flexible power supply options.
Low input bias current of ±4 nA for sensitive signal amplification. Input offset voltage maintained within ±50 µV for precision performance. Slew rate of 0.8 V/μs for efficient signal response. Operational temperature range from -40°C to 85°C for reliability in varied environments.
Compact dimensions: 9.81 mm length, 6.35 mm width, and 4.57 mm height.
It is well suited for electronics designers and engineers seeking consistent performance and quality in precision analog components. Explore more Operational Amplifiers and semiconductor components from Texas Instruments in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, ensuring reliable frequency response for various applications.
The OPA277PA operates with supply voltages ranging from 2V to 18V, providing flexibility for different circuit designs.
This operational amplifier features a low input bias current of ±4 nA, which is suitable for sensitive signal amplification.
The input offset voltage is maintained within ±50 µV, contributing to its precision performance in signal processing applications.
The slew rate of this model is 0.8 V/μs, allowing for efficient signal response in various applications.
The OPA277PA operates reliably across a temperature range of -40°C to 85°C, making it suitable for diverse environments.
This operational amplifier has compact dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The OPA277PA is a single channel operational amplifier, designed for various amplification tasks.
The OPA277PA is packaged in an 8-pin PDIP (Plastic Dual In-line Package) form factor for through-hole mounting.
This operational amplifier is commonly used in instrumentation amplifiers, active filters, precision integrators, and transducer signal conditioning.
The maximum supply voltage for this model is 18V, allowing it to be used in a variety of electronic circuit designs.
The minimum operating temperature for the OPA277PA is -40°C, ensuring functionality in low-temperature environments.
