Nexperia Bus Transceiver Non-Inverting TTL 20-Pin TSSOP 2-6V Supply 74HC245PW,118

Free Delivery in India | Lowest Global Shipping Charges

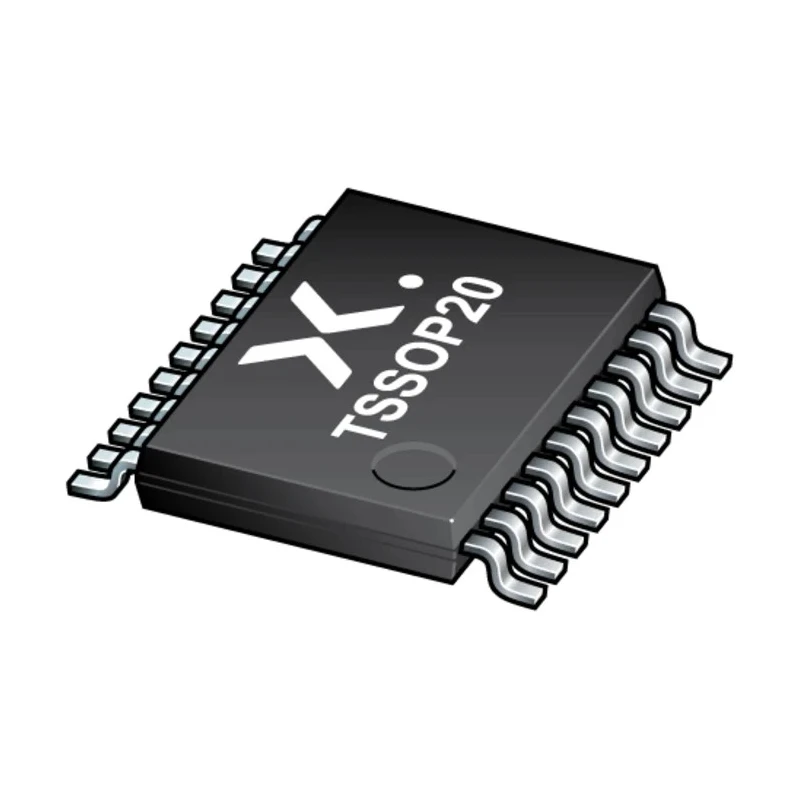

Nexperia Bus Transceiver Non-Inverting TTL 20-Pin TSSOP 2-6V Supply 74HC245PW,118

Name: Nexperia Bus Transceiver Non-Inverting TTL 20-Pin TSSOP 2-6V Supply 74HC245PW,118
Brand: Nexperia
SKU: 307635
Price: 25.85 INR
Availability: InStock



Category Bus Transceivers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	950μm
Length	6.6mm
Model	74HC245PW,118
Mount Type	Surface
Output type	3 State
Series	74HC
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Pin Count	20
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Bus Transceiver
Minimum Supply Voltage	2V
Maximum High Level Output Current	-7.8mA
Maximum Propagation Delay Time @ CL	23ns
Maximum Low Level Output Current	7.8mA
Output Level	TTL
Input Level	CMOS

Key Features

The device features non-inverting 3-state outputs for efficient bus sharing.
It includes output enable (OE) and direction control (DIR) pins for flexible data transfer direction.
Supports a single channel with 20-pin TSSOP surface-mount package for compact PCB design.
Designed to operate within temperature range from -40°C to 125°C, suitable for industrial applications.
Maximum propagation delay time is 23 nanoseconds, enabling fast data communication.
Input voltage range is CMOS level compatible with TTL output levels for versatile interfacing.
Maximum high level output current is -7.8 mA and low level output current is 7.8 mA for robust switching.
Complies with 74HC series logic family standards.

Product Description

Nexperia 74HC245PW,118 is a high-performance 8-bit bus transceiver featuring non-inverting TTL outputs in a 20-pin TSSOP surface-mount package. It operates over a wide supply voltage range from 2 volts to 6 volts, supporting robust data transfers in digital electronic circuits.

This device provides direction control via a DIR pin and an output enable function through the OE pin, allowing flexible control of data flow direction in bus-oriented systems. The non-inverting architecture ensures signal integrity with 3-state output capability for bus sharing applications.

With a maximum propagation delay time of 23 nanoseconds, it facilitates high-speed signal timing required in industrial and embedded system designs. The input level is CMOS compatible, while the output conforms to TTL logic levels, making it suitable for interfacing different logic families.

The 74HC245PW,118 maintains operational stability across a broad temperature range of -40°C to 125°C, meeting the demands of harsh environments typically encountered in industrial electronics, telecommunications, and automation sectors.

Physically, the device is compact with a length of 6.6 mm and height of 950 μm, fitting easily onto densely packed printed circuit boards. It conforms to the 74HC family standards but does not carry automotive certification. Its 3-state output type enables effective management of bus lines shared by multiple devices.

The transceiver is an ideal solution for improving bus data direction control and buffering in embedded controllers and logic circuits. It supports surface mount technology with the TSSOP package simplifying assembly procedures.

The device's electrical characteristics support reliable digital data transfer in industrial and commercial electronic modules. Common use cases include industrial communication equipment, microcontroller bus interfacing, and logic signal isolation.

Nexperia's 74HC245PW,118 combines performance and compactness suited for modern electronics manufacturing. Explore our extensive semiconductor category for more advanced logic ICs and bus transceiver options to optimize your electronic designs.

Explore more products in our Bus Transceivers category.
