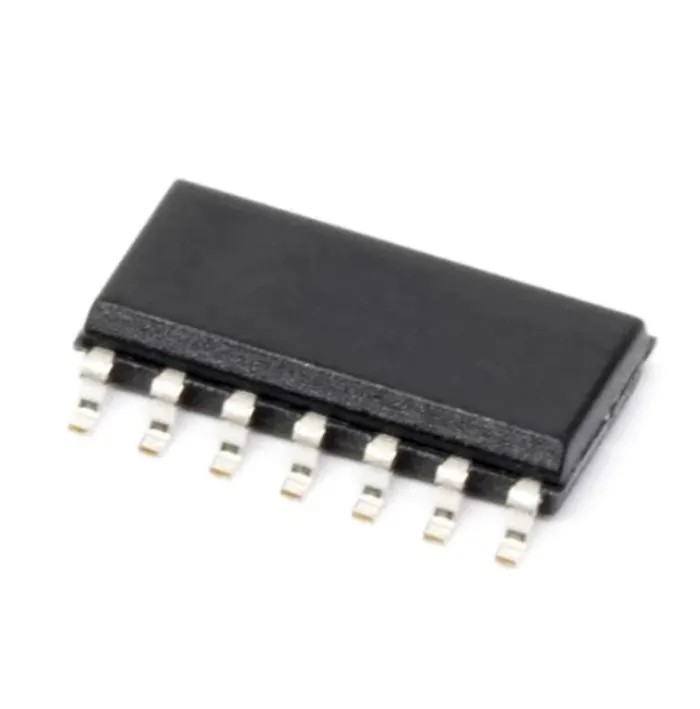

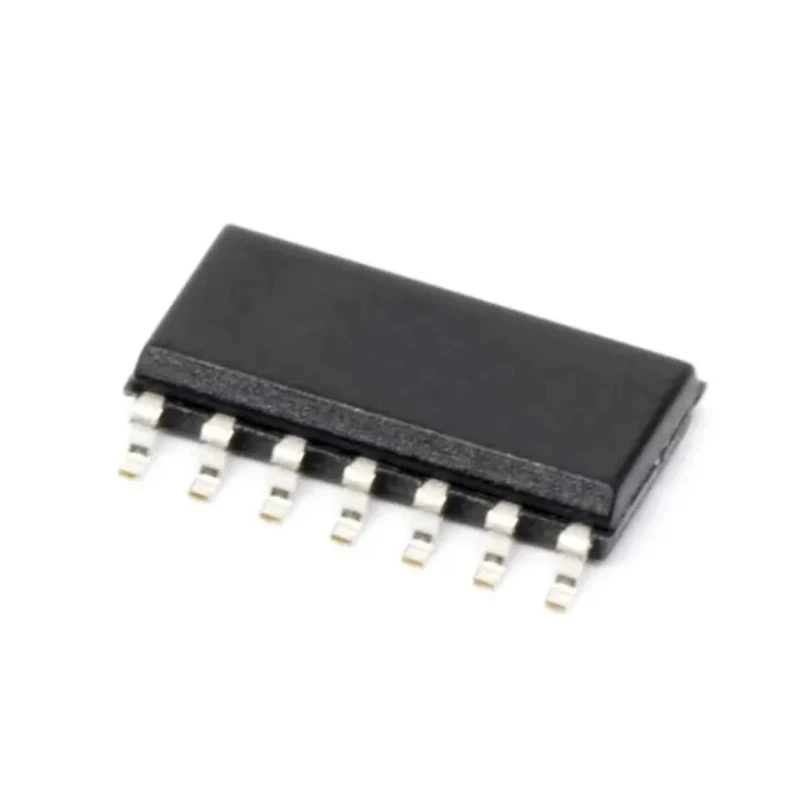

onsemi Operational Amplifier 3 MHz 14-Pin 36V SOIC TLV274DR2G

onsemi TLV274DR2G Operational Amplifier is a high-performance, rail-to-rail output amplifier designed for industrial and automotive grade applications. Offering a gain bandwidth product of 3 MHz, this device enables users to maximize signal bandwidth while operating with low power consumption. It comes in a 14-pin SOIC surface mount package that contains 4 amplifier channels, making it suitable for compact and multi-channel designs.

This operational amplifier supports a wide supply voltage range from 2.7V to a maximum of 36V, allowing flexibility in various power environments. The rail-to-rail output stages allow the output voltage to swing very close to the supply rails, making full use of the supply voltage range. The device also features a fast slew rate of 2.6 V/μs and very low input bias current of just 150 pA, ensuring precision in signal amplification and low noise performance.

Manufactured to meet stringent automotive standards including the AEC-Q100 certification, the TLV274DR2G can operate reliably across a broad temperature range from -40°C up to 125°C. The amplifier features low input offset voltage of 3 mV, contributing to accuracy in measurement and signal integrity.

This component is RoHS compliant, ensuring it meets environmental safety standards. The maximum output current rating is 100 mA, accommodating a variety of load requirements in industrial, automotive, laboratory instrumentation, and commercial electronics applications.

This operational amplifier supports a wide supply voltage range of 2.7V to 36V. It features rail-to-rail output operation allowing efficient use of supply voltage range. Contains 4 amplifier channels in a compact SOIC 14-pin surface mount package.

Offers a slew rate of 2.6 V/μs and low input bias current of 150 pA. Designed to operate reliably within temperature range from -40°C to 125°C. Input offset voltage is low at 3 mV ensuring high accuracy signaling. Compliant with RoHS standards and automotive standard AEC-Q100 for quality and reliability.

Maximum output current capability is 100 mA, suitable for driving various loads.

This Operational Amplifier is ideal for industrial automation, automotive electronics, medical instrumentation, and consumer electronics requiring high precision amplification. Explore more onsemi amplifiers and components on EnvMart to fit your specific design needs.
