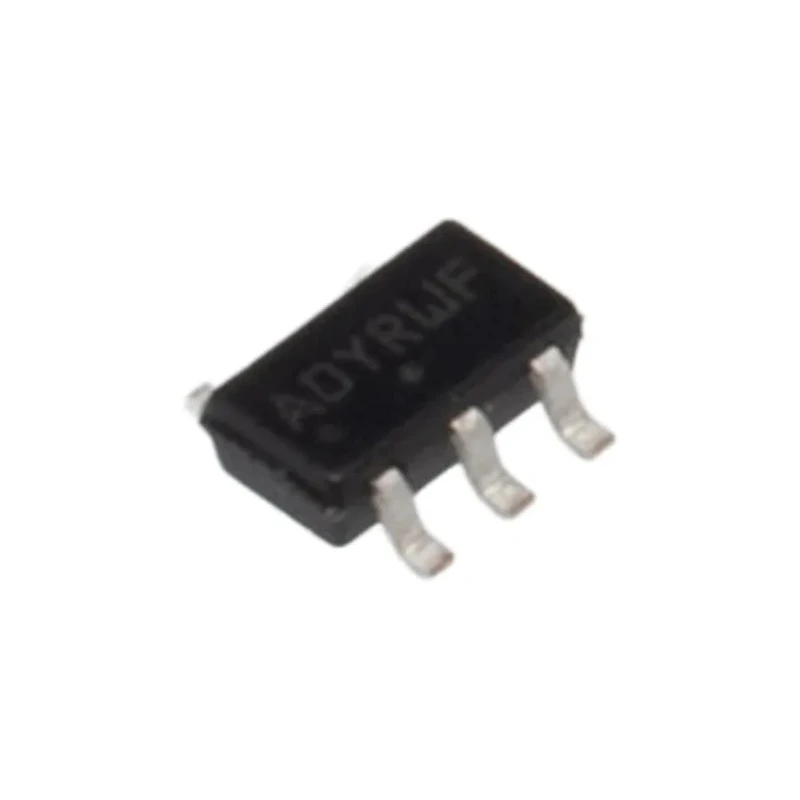

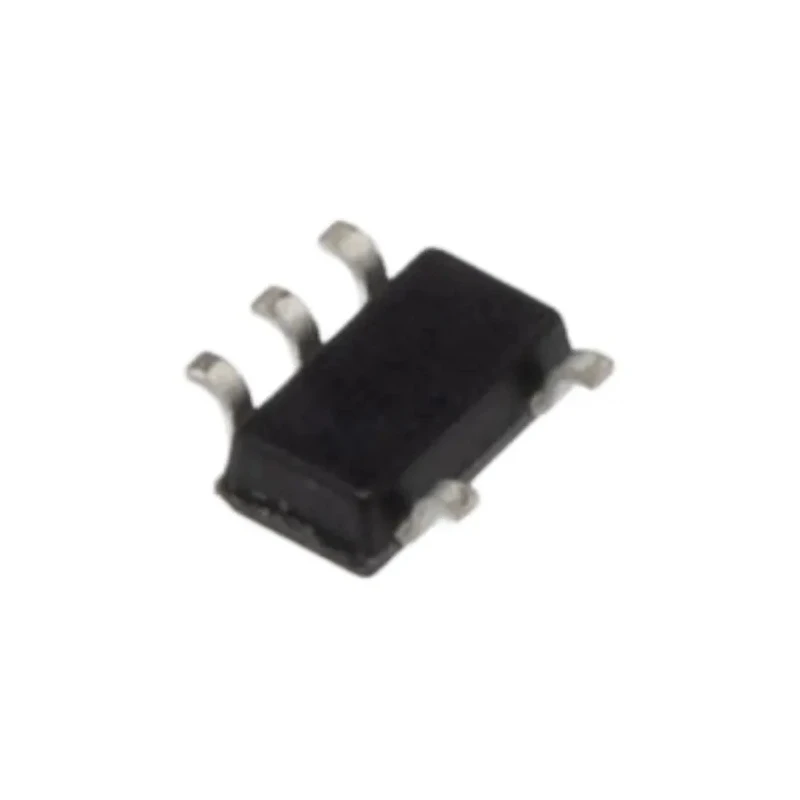

onsemi Operational Amplifier 900 kHz, 5-Pin TSOP, 3 V to 32 V Supply LM321SN3T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3mm |
| Model | LM321SN3T1G |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | LM321 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 900kHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 150 nA |
| Wide supply voltage range | 3 V to 32 V |
Key Features
- Single channel operational amplifier with true differential input stage.
- Wide supply voltage range supporting single and split supplies.
- Unity gain stable with capacitive loads up to 1.5 nF.
- Low input bias currents and internally compensated.
- Short circuit protected outputs ensure durability.
- Designed for gain stages, active filters, and signal processing.
- Operates over a temperature range from -40°C to 125°C.
- Compact 5-pin TSOP surface mount package.
Product Description
onsemi LM321SN3T1G is a general purpose, single channel operational amplifier designed with a true differential input stage and internal compensation. It features a gain bandwidth product of 900 kHz, making it suitable for various analog signal processing uses in industrial, laboratory, and consumer electronic applications.
This op amp supports a wide supply voltage range from 3 V up to 32 V for single supplies and ±1.5 V to ±16 V for split supplies, providing flexibility in design. The device is unity gain stable even with capacitive loads as high as 1.5 nF, ensuring stability in complex circuit configurations.
The LM321 supports short circuit protected outputs for enhanced reliability and low input bias current for precision applications. It has a low input offset voltage of 9 mV and input offset current of 150 nA which help reduce error in signal amplification.
Its compact 5-pin TSOP surface mount package measures 3 mm in length, 1.5 mm in width, and 1 mm in height, optimizing PCB space usage in compact electronic devices.
Typical applications include gain stages, active filters, and varied signal processing circuits in sectors such as industrial automation, consumer electronics, and instrumentation.
Single channel Operational Amplifier with true differential input stage. Wide supply voltage range supporting single and split supply operations. Unity gain stable with capacitive loads up to 1.5 nF. Low input bias currents and internally compensated.
Short circuit protected outputs for durability. Compact TSOP-5 surface mount package for space saving design. Operating temperature range: -40°C to 125°C. Gain bandwidth product of 900 kHz suitable for high frequency applications.
Low input offset voltage and current for precision amplification. Output current capability of 40 mA supports various load requirements. Explore more precision semiconductor amplifiers from onsemi in the Electronics & Electricals category on EnvMart for your next design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 900 kHz, making it suitable for high-frequency applications.
It operates over a temperature range from -40°C to 125°C, allowing for use in various environmental conditions.
This operational amplifier supports a wide supply voltage range from 3 V to 32 V for single supplies and ±1.5 V to ±16 V for split supplies.
The LM321SN3T1G can provide an output current of up to 40 mA, which supports various load requirements.
The input offset voltage for this model is 9 mV, which helps reduce error in signal amplification.
It comes in a compact 5-pin TSOP surface mount package, measuring 3 mm in length, 1.5 mm in width, and 1 mm in height.
Yes, it is unity gain stable with capacitive loads up to 1.5 nF, ensuring stability in complex circuit configurations.
The input bias current is specified at -500 nA, contributing to its precision in applications.
This operational amplifier is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is designed for gain stages, active filters, and various signal processing circuits in industrial, laboratory, and consumer electronics applications.
The slew rate for this operational amplifier is 0.4 V/μs, which affects the speed at which the output can respond to changes in input.
The input offset current is 150 nA, which is important for maintaining accuracy in amplification tasks.
