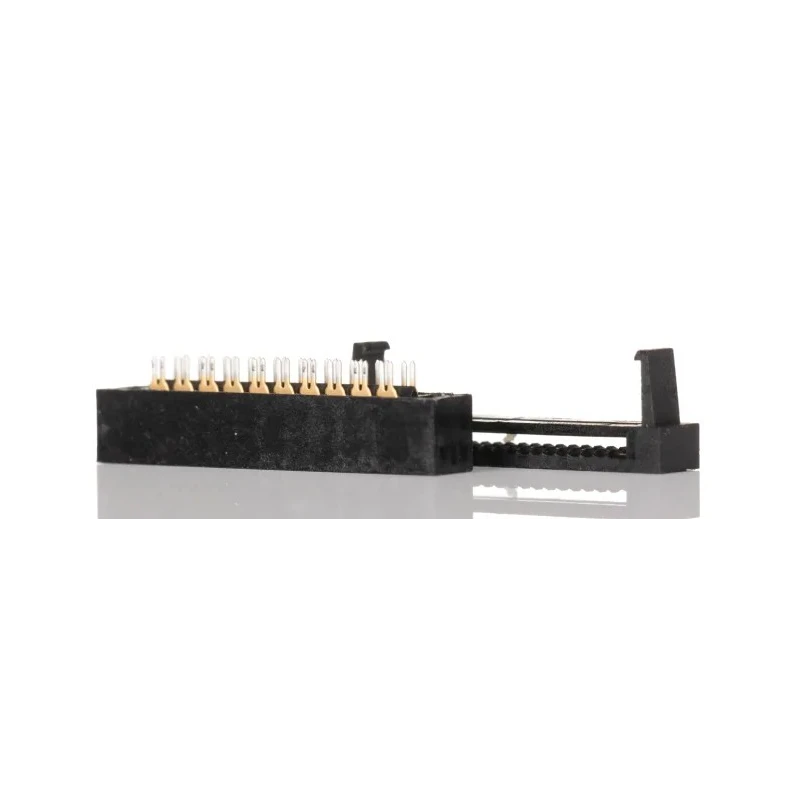

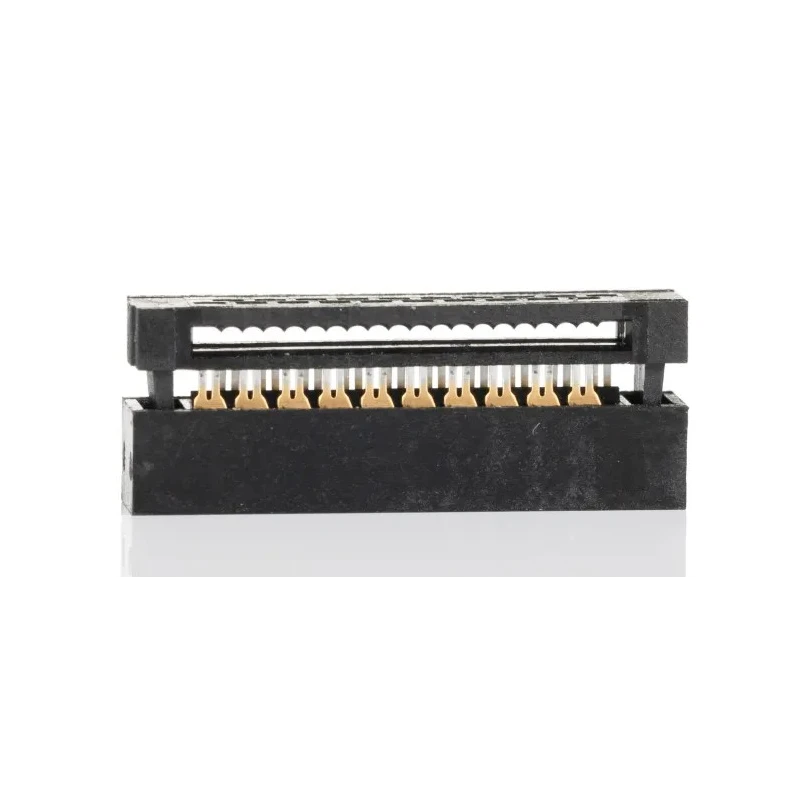

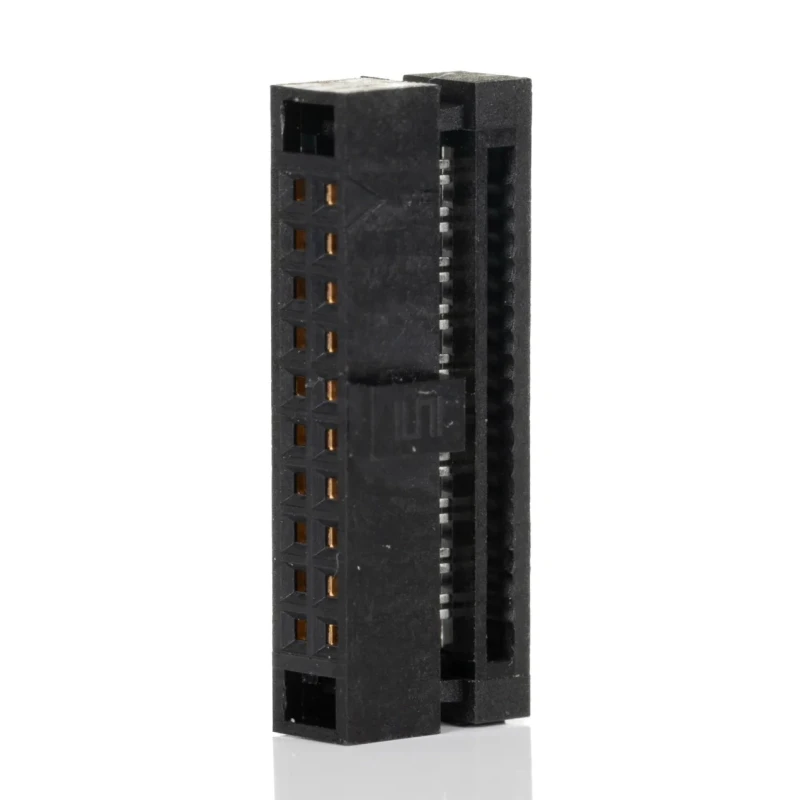

Samtec 30-Way IDC Connector Ribbon Cable Female, 2 Row, 1.27mm Pitch, 2.3A Current, Right Angle FFSD-15-01-N
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.3A |
| Model | FFSD-15-01-N |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper |
| Series | FFSD |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS Compliant |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- This IDC connector supports a current rating of 2.3A for efficient electrical transmission.
- The connector is female and mounts to cables with a right-angle orientation for space-saving designs.
- Gold over nickel plating ensures corrosion resistance and reliable contact performance.
- Construction with beryllium copper contacts and polybutylene terephthalate housing increases durability and electrical integrity.
- Operating temperature ranges from -40°C to 105°C, suitable for demanding environmental conditions.
- Meets RoHS compliance standards supporting environmentally safe manufacturing.
- Compact low-profile FFSD series with polarization key (notch) to ensure correct mating.
- Suitable for industrial, electronic components assembly, and PCB connector applications.
Product Description
Samtec FFSD-15-01-N is a 30-way IDC connector ribbon cable female designed for cable mounting applications with a 2-row contact layout and 1.27mm (0.050 inch) pitch. Its low-profile FFSD series design includes high-reliability Tiger Eye™ contacts featuring gold over nickel plating for superior electrical performance and durability.
The connector features a right-angle orientation, properly polarized notches, and a black polybutylene terephthalate insulator housing with UL94 V-0 flammability rating, ideal for safety-critical equipment.
This cable-mount IDC connector supports a nominal current capacity of 2.3 Amperes and operates reliably between -40°C and 105°C temperature, making it suitable for varied industrial and commercial electronics environments.
30 contacts arranged in 2 rows ensuring dense, compact connections. Contact material uses beryllium copper to maintain conductivity and mechanical strength. RoHS compliant, ensuring eco-friendly and regulation-compliant manufacturing.
UL94 V-0 housing rating meets stringent fire-resistance standards. Right-angle cable mount for space-constrained designs and effective routing. Polarization key prevents mating errors during installation. Suitable for industrial, manufacturing, telecommunications, and PCB assembly uses.
This connector is manufactured in the United States and is part of the proven Samtec FFSD series trusted in electronics manufacturing. Explore more IDC Connectors and cable management solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current rating of 2.3A, ensuring efficient electrical transmission.
The contacts in this model are arranged with a pitch of 1.27mm (0.050 inch).
It operates reliably between -40°C and 105°C, making it suitable for various industrial and commercial environments.
The contacts are made of beryllium copper, which helps maintain conductivity and mechanical strength.
Yes, it meets RoHS compliance standards, supporting environmentally safe manufacturing practices.
This model is designed for cable mounting applications with a right-angle orientation.
It features 30 contacts arranged in 2 rows, allowing for dense and compact connections.
The housing is made of polybutylene terephthalate, which contributes to its durability and electrical integrity.
The housing has a UL94 V-0 flammability rating, indicating it meets stringent fire-resistance standards.
Yes, it includes a polarization key (notch) to ensure correct mating and prevent installation errors.
This model is part of the FFSD series, which is known for its high-reliability features and compact design.
It is manufactured in the United States, ensuring compliance with local manufacturing standards.
