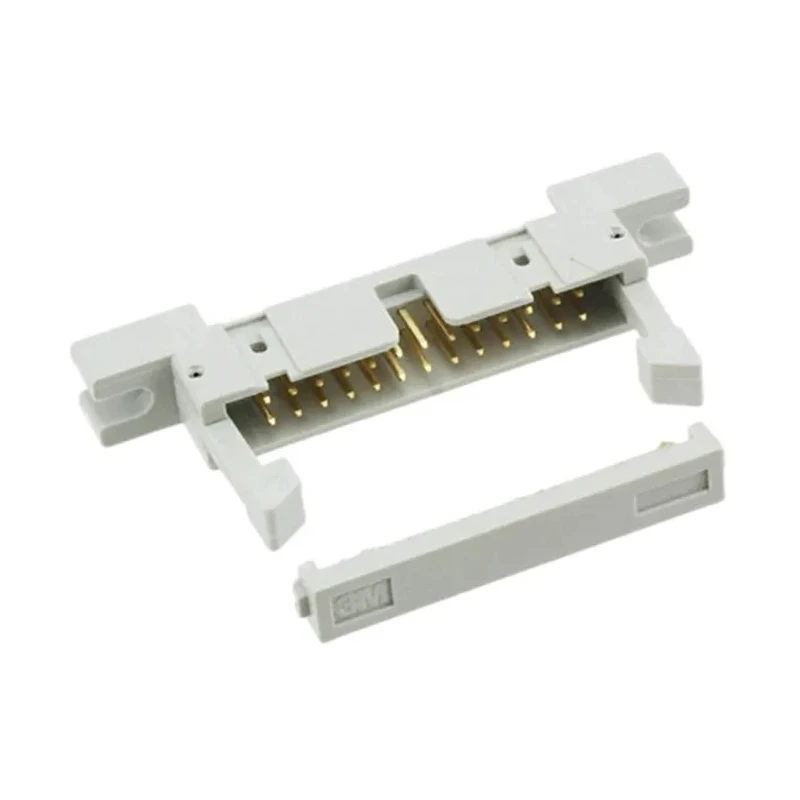

3M 26-Way Male IDC Cable Mount Connector, 2 Row, 125V, 5.5A, 2.54mm Pitch, Series 4600 4626-6300

Free Delivery in India | Lowest Global Shipping Charges

3M 26-Way Male IDC Cable Mount Connector, 2 Row, 125V, 5.5A, 2.54mm Pitch, Series 4600 4626-6300



Category IDC Connectors Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	3M
Current	5.5A
Mount Type	Cable
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Beryllium Copper Alloy
Series	4600
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS 2015/863, ASTM B689-97, MIL-G-45204 Type II, Grade C, SAE AMS-QQ-N-290, UL File No. E68080
Contact Plating	Gold, Nickel
Number of Contacts	26
Contact Gender	Male
Connector Gender	Male

Key Features

Supports 26 contacts arranged in 2 rows with gold and nickel contact plating.
Rated for 125 volts and a current capacity of 5.5 amps.
Utilizes 2.54mm pitch spacing and is suitable for cable mounting.
Constructed with beryllium copper alloy contacts and fibreglass reinforced polybutylene terephthalate housing.
Operates reliably between -55°C and 105°C operating temperatures.
Meets multiple industry standards including RoHS 2015/863, ASTM B689-97, MIL-G-45204 Type II Grade C, SAE AMS-QQ-N-290, and UL File No. E68080.
Features a shrouded design for pin protection and open end covers for daisy chaining and bussing.

Product Description

3M 4626-6300 26-Way Male IDC Cable Mount Connector, 2 Row, rated at 125V and 5.5A current capacity, provides a reliable electrical connection solution for industrial and electronic applications.

This connector is designed for use with flat ribbon cable or discrete wires sized 26 and 28 AWG, supporting both solid and stranded wire types. The 2.54mm 4600 series cable mount IDC plug features a shrouded design to protect pins and open end covers enabling daisy chaining and bussing configurations.

Manufactured using high-quality beryllium copper alloy contacts plated with gold and nickel, combined with a durable fibreglass reinforced polybutylene terephthalate housing, this connector ensures long-lasting mechanical and electrical performance. The product withstands operating temperatures from -55°C to 105°C, suitable for diverse industrial environments.

This connector meets strict compliance standards including RoHS 2015/863, ASTM B689-97, MIL-G-45204 Type II Grade C, SAE AMS-QQ-N-290, and UL File No. E68080, assuring safety and quality. Variants include models with slotted mounting flanges and optional ejector latches for secure installation.

The 3M 4626-6300 connector is ideal for electronic manufacturing, assembly lines, laboratory instrumentation, telecommunications equipment, and automotive electrical systems requiring secure cable connections.

Supports 26 contacts in 2 rows with gold and nickel plating for optimal conductivity. Rated for 125V and 5.5A suitable for medium power applications. Conforms to industry standards ensuring safety and reliability. Durable materials offering resistance to mechanical and thermal stress.

Designed for IDC cable mounting, allowing efficient ribbon cable connections. Explore more industrial connectors and components at EnvMart to meet your project needs with trusted quality from 3M.
