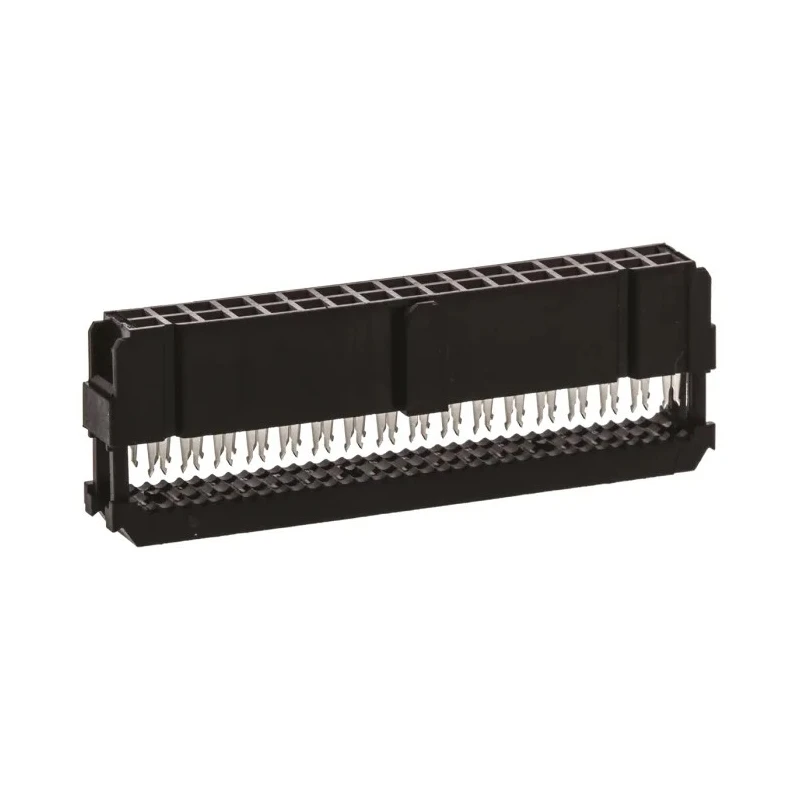

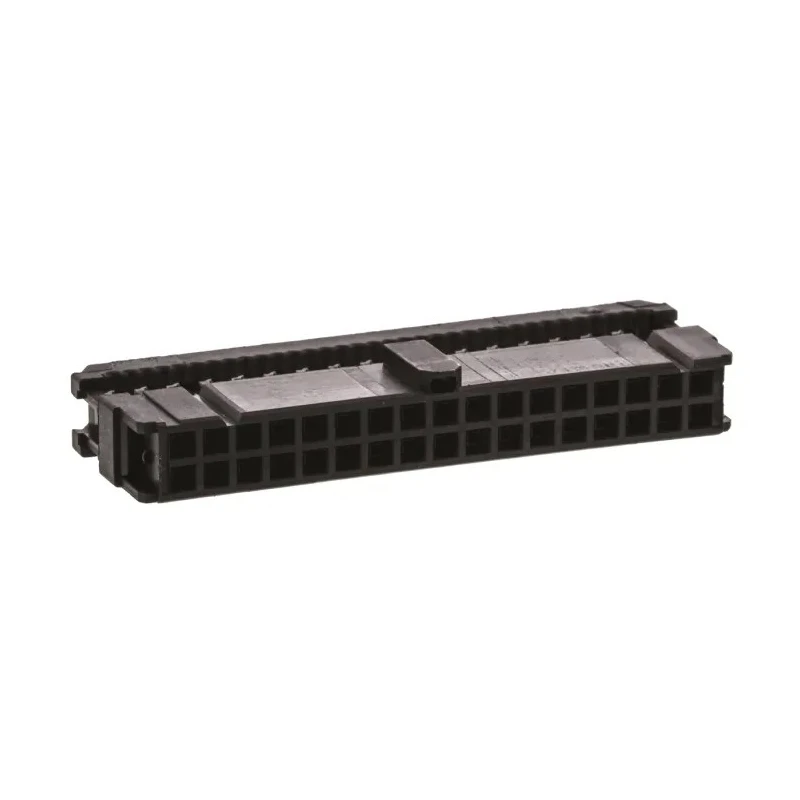

TE Connectivity 34-Way IDC Connector Female for Cable, 2 Row 1658621-8

TE Connectivity 1658621-8 34-Way IDC Connector Female for Cable, 2 Row is a high-quality ribbon cable connector suitable for electronic and industrial applications requiring reliable electrical connections.

This connector supports 34 contact points arranged in 2 rows with a pitch of 2.54mm, designed for use with compatible flat ribbon cables. It operates at a current rating of 1 Amp and a voltage of 250 Volts, making it suitable for low power electronic signals.

The housing is made from UL 94V-0 thermoplastic material which is shrouded to provide protection and durability. The contacts are made of phosphor bronze plated with gold over nickel, ensuring good conductivity and resistance against corrosion. The termination method is Insulation Displacement Connector (IDC), which allows quick and reliable connection to cable wires without the need for soldering.

This product is part of the AMP-LATCH Novo series, featuring tuning fork style contacts with military-approved designs to provide uniform latching and secure contact retention. The connector has a right angle orientation making it ideal for cable mounting in confined spaces.

Operating temperature ranges from -65°C to 105°C, enabling usage in a variety of environmental conditions. It conforms to DIN 41651 and DIN EN 60352 standards, ensuring that it meets industry reliability and safety requirements.

Ideal for use in telecommunications, industrial control systems, electronics manufacturing, and other commercial applications, this IDC connector facilitates the assembly of cable harnesses and wire-to-board interfaces.

Designed for 34 contact points with 2 rows for efficient ribbon cable use. Rated for a current of 1 Amp and voltage up to 250 Volts. Features shrouded female connector housing made from thermoplastic. Termination type is Insulation Displacement Connector (IDC) for ease of assembly.

Contacts are made of phosphor bronze and plated with gold over nickel for durability. Operates reliably between -65°C and 105°C temperature range. AMP-LATCH Novo series with tuning fork style contacts for secure connections.

Conforms to DIN 41651 and DIN EN 60352 standards. Connector gender is female with right angle cable mount type. Manufactured in China ensuring consistent production quality. Explore the extensive selection of connectors at EnvMart for superior electrical connection solutions.
