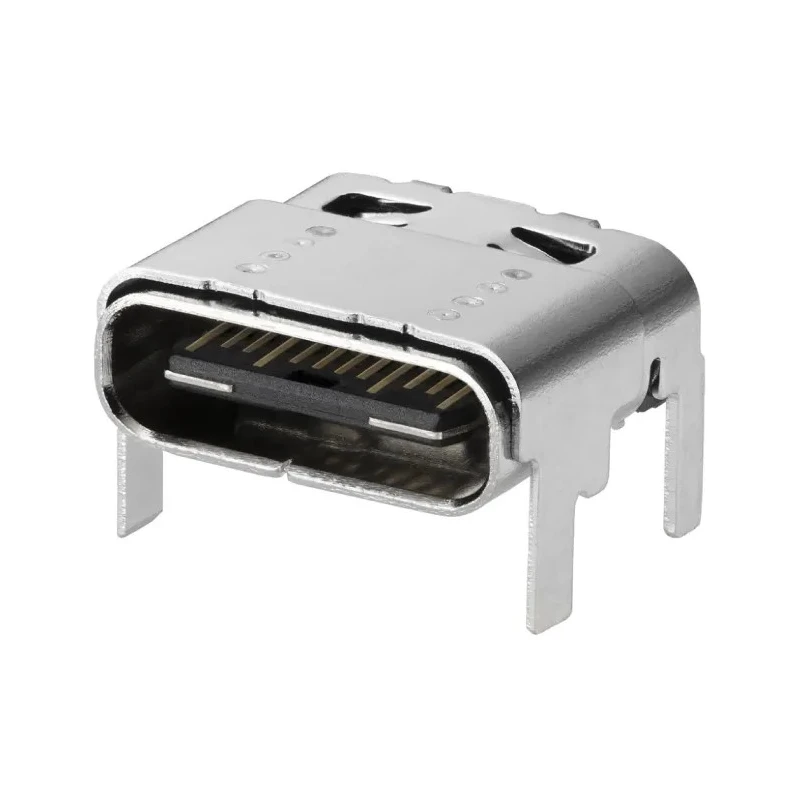

Molex Right Angle Surface Mount Female 1 Port USB Type C USB Connector 3.2 201267-0005
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 201267 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | 3.2 |
Key Features
- Designed for surface mount applications with solder termination.
- Provides a single port for USB Type C interface with 5A current rating.
- Constructed with copper alloy contacts plated with 0.76μm gold for enhanced conductivity.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Rated for 30V operation voltage suitable for various electronic applications.
- Right angle orientation optimizes PCB space utilization.
- Compatible with modern electronics requiring USB 3.2 Type C connectors.
- Manufactured under series 201267 with no hazardous area certification.
Product Description
Molex 201267-0005 is a high-quality USB connector featuring a right angle, surface mount female interface designed for USB Type C connections compliant with USB 3.2 specifications. It supports a current rating of 5A and a maximum voltage of 30V, making it suitable for a wide range of electronic devices and industrial applications.
This connector utilizes copper alloy contacts with a 0.76μm gold plating to ensure reliable electrical conductivity and corrosion resistance. The solder termination type facilitates robust mounting on PCB surfaces.
Engineered for operating temperatures from -40°C up to 105°C, this USB connector delivers stable performance in various environmental conditions commonly encountered in industrial, commercial, and consumer electronic applications.
The right angle orientation is optimized to save PCB layout space without compromising connection integrity. It is ideal for designing compact devices that require efficient USB Type C connectivity.
Designed for surface mount with solder termination ensuring mechanical and electrical stability. Single port female USB Type C connector supports modern USB 3.2 standard for high-speed data transfer. Reliable copper alloy contacts with gold plating offer durability and superior signal quality.
Temperature range from -40°C to 105°C ensures operational reliability in diverse environments. Rated for 30V and 5A current, suitable for various power and data applications. Right angle configuration optimizes board space in compact electronic designs.
Absence of hazardous area certification denotes standard industrial use cases. Origin manufactured in China with new product condition status guaranteed.
This connector is widely used in electronic manufacturing, industrial control systems, computing hardware, and automotive electronics requiring USB Type C connections. Its compact design and robust electrical characteristics ensure dependable performance in demanding applications.
Explore more USB Connectors and components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A, making it suitable for various power and data applications.
It is rated for a maximum operating voltage of 30V, which is suitable for a range of electronic applications.
This connector operates reliably in temperatures ranging from -40°C to 105°C, ensuring stable performance in diverse environments.
It features a solder termination type, which facilitates robust mounting on PCB surfaces.
It has a single port for USB Type C connections, designed for high-speed data transfer.
The connector is constructed with copper alloy contacts plated with 0.76μm gold for enhanced conductivity and corrosion resistance.
It features a right angle orientation, which optimizes PCB space utilization for compact designs.
Yes, it is compliant with USB 3.2 specifications, ensuring compatibility with modern electronics requiring USB Type C connectors.
This model is manufactured in China, ensuring adherence to standard industrial use cases.
It is widely used in electronic manufacturing, industrial control systems, computing hardware, and automotive electronics requiring USB Type C connections.
This connector is part of the Molex series 201267, which includes various USB Type C connectors.
This model features a female connector gender, designed for use in various electronic applications.
