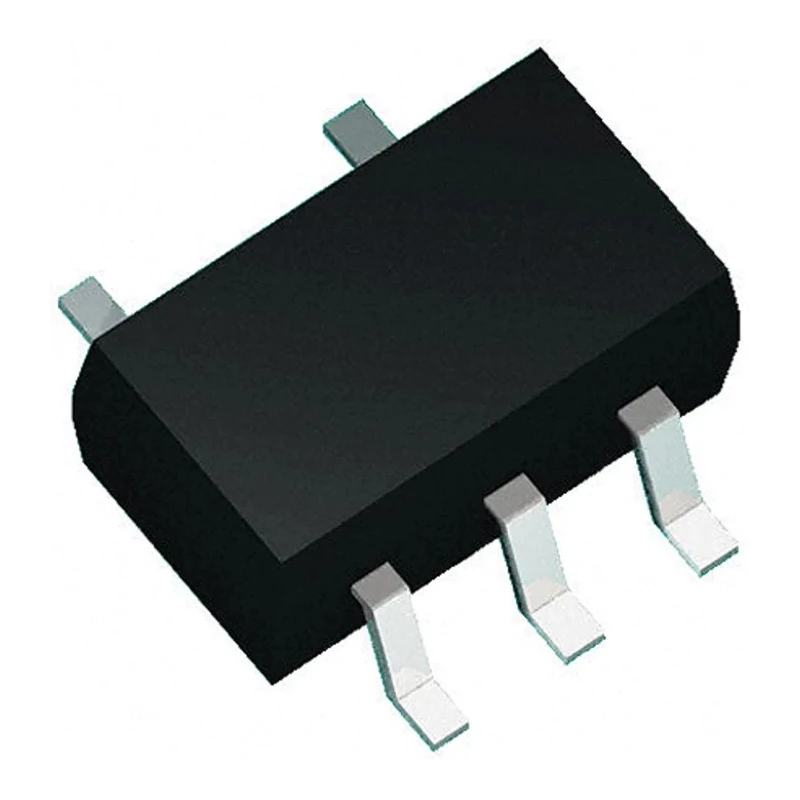

onsemi Operational Amplifier 3 MHz 5-Pin 5.5V SC-70 NCV20061SQ3T2G

The onsemi NCV20061SQ3T2G operational amplifier delivers a 3 MHz bandwidth and rail-to-rail input/output capability in a 5-pin SC-70 surface mount package. Designed for use with supply voltages ranging from 1.8 V to 5.5 V, it provides versatile operation across a wide voltage range for electronics and semiconductor applications.

This device features a high gain bandwidth product of 3 MHz which supports high-frequency applications and signal integrity. It consumes a low quiescent current of 125 μA per channel, making it suitable for low-power designs where efficiency is critical.

The NCV20061SQ3T2G offers a high slew rate of 1.2 V/μs at a 1.8 V supply voltage, facilitating rapid changes in signal output. The low typical input bias current of 1 pA and an input offset voltage of 4 mV ensure accuracy and precision in amplification.

Its operating temperature range from −40°C to 125°C and compliance with the AEC-Q100 automotive standard confirm its robustness for demanding industrial, automotive, and commercial electronics environments.

In addition to its compact 5-pin SC-70 package with dimensions approximately 2.2 mm length, 1.35 mm width, and 1 mm height, the single channel design is widely suitable for a variety of amplifier circuits, comparators, and sensor interfaces in electronics manufacturing, instrumentation, automotive systems, and other advanced technical applications.

Rail-to-rail input and output operation enhances voltage utilization. Wide supply voltage range from 1.8 V to 5.5 V ensures flexibility. Low quiescent current reduces power consumption. High slew rate supports fast signal transitions.

Low input bias current and offset voltage enable precision operation. Compliance with automotive standard AEC-Q100 ensures reliability. Compact SC-70 surface mount package for space-efficient PCB designs. Wide temperature range supports operation in harsh environments.

Single channel configuration meets diverse application needs. Suitable for industrial, automotive, instrumentation, and semiconductor applications. Explore the onsemi Operational Amplifiers category at EnvMart for a range of high-performance semiconductor amplifier products designed to elevate your electronic circuit designs.
