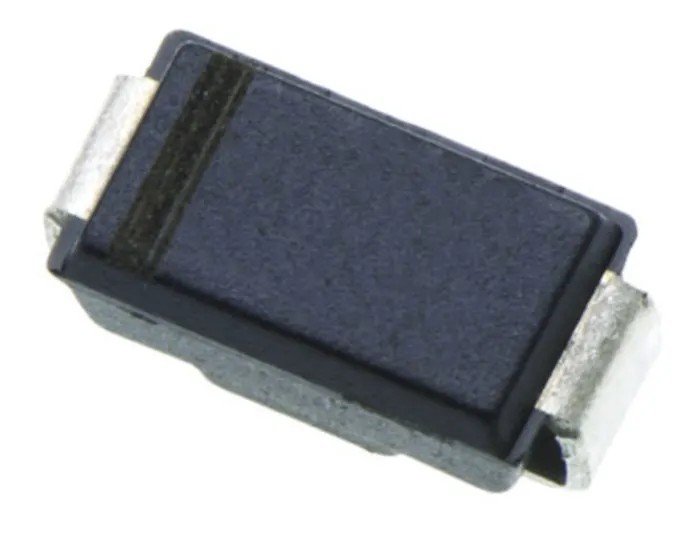

Bourns Schottky Diode 40 V 3 A Surface Mount DO-214AC Package CD214A-B340R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 0.96mm |
| Length | 4.5mm |
| Model | CD214A-B340R |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | CD214A-B3xR |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Compact surface mount diode with DO-214AC package type.
- Supports a maximum continuous forward current of 3 A.
- Maximum repetitive peak reverse voltage rating of 40 volts.
- Low forward voltage of 500 mV improves efficiency in power conversion.
- Wide operating temperature range from -55°C to 125°C for versatile applications.
- High peak non-repetitive surge current capability of 80 A for transient tolerance.
- Single diode configuration with 2 pins suited for surface mounting.
- Ideal for switch mode power supplies and portable device rectification.
Product Description
Bourns CD214A-B340R is a Schottky diode designed with a 40 V peak reverse voltage and 3 A maximum continuous forward current, housed in a compact DO-214AC surface mount package. This diode is engineered for applications requiring low power loss and high efficiency, ideal for modern portable communication, computing, and video equipment.
The diode features a low forward voltage drop of 500 mV, enabling reduced conduction losses and improved energy efficiency. Its wide operating temperature range from -55°C to 125°C ensures reliable performance in various industrial and consumer electronic environments.
This Schottky rectifier diode supports a peak non-repetitive forward surge current of 80 A, which helps withstand transient current spikes. With a single diode configuration and two pins, it suits surface mounting in automated PCB assembly.
Typical applications include switch mode power supplies, portable equipment batteries, high-frequency rectification, DC/DC converters, and telecommunications devices. The DO-214AC package supports compact, low-profile designs required for space-constrained electronics.
Compact and low-profile surface mount design. High efficiency with low forward voltage drop. Wide temperature range suitable for industrial use. High surge current capability for transient protection. Compatible with automated PCB assembly lines.
Perfect for power management and conversion circuits. Reliable for telecommunications and portable devices. Robust design for long-term durability. Meets typical semiconductor industry standards.
Bourns CD214A-B340R Schottky Diode is an excellent choice for engineers and manufacturers seeking reliable, efficient, and compact diodes in power electronics and embedded systems. Explore more semiconductor devices and power components in the EnvMart catalog to support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 3 A.
The peak reverse voltage rating for this model is 40 V.
The maximum forward voltage drop is 500 mV, which improves efficiency in power conversion.
It operates within a temperature range of -55°C to 125°C.
The diode has a peak non-repetitive forward surge current capability of 80 A.
This model is housed in a DO-214AC surface mount package.
The diode features a single configuration with 2 pins.
The country of origin for this diode is India.
Typical applications include switch mode power supplies, portable equipment batteries, and telecommunications devices.
The dimensions are 4.5 mm in length, 2.2 mm in width, and 0.96 mm in height.
This model is a Schottky rectifier diode.
The peak reverse current is rated at 200 μA.
