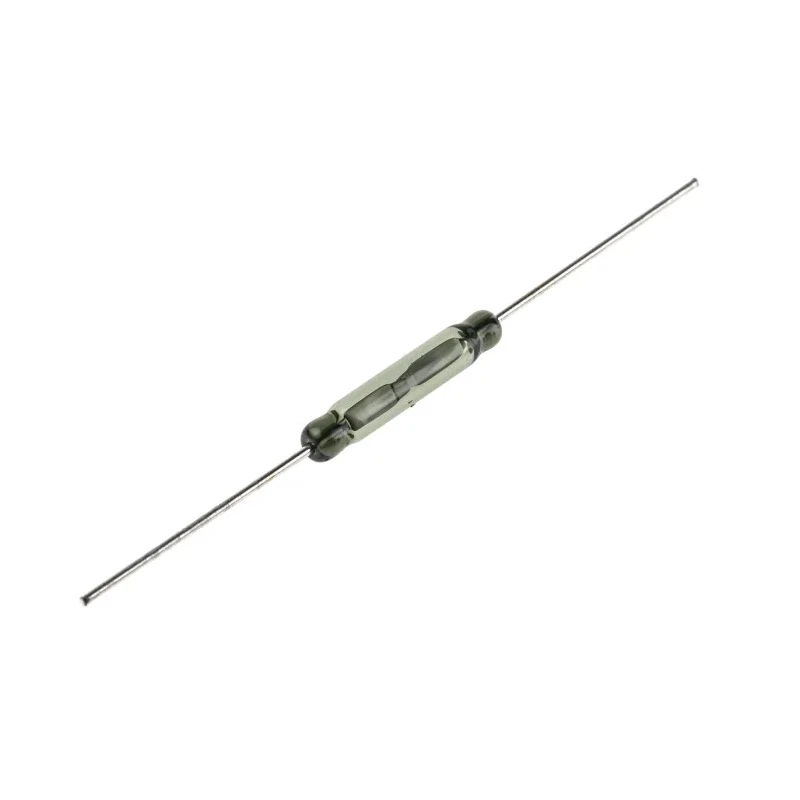

Assemtech SPST PCB Reed Switch 500 mA 200 V dc RI-23
Specifications
| Country of Origin | Netherlands |
|---|---|
| Brand | Assemtech |
| Length | 46mm |
| Model | RI-23 |
| Width | 2.54mm |
| Mount Type | PCB |
| Contact Material | Ruthenium on Gold |
| Series | RI |
| Maximum Switching Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Terminal type | Wire |
| Contact Resistance | 70mΩ |
| Maximum Switching Power | 10W |
| Standards/Approvals | ISO |
| Maximum Switching Voltage | 200V dc |
| Maximum Release Time | 30μs |
| Operating Time Including Bounce | 0.25ms |
| AT Value Range | 18 to 32 AT |
| Assemtech SPST PCB Reed Switch 500 mA 200 VBrand | Assemtech |
Key Features
- SPST contact configuration ensures simple on/off switching functionality.
- Maximum switching current rating of 500 mA provides adequate capacity for PCB circuits.
- Operates at a maximum switching voltage of 200 V dc for varied voltage applications.
- Contact resistance is low at 70 milliohms for efficient conductivity.
- Constructed with ruthenium on gold contact material for durability and corrosion resistance.
- Switch features fast maximum release time of 30 microseconds for responsive operation.
- Operating time including bounce is minimal at 0.25 milliseconds, reducing switching noise.
- Wide operating temperature range from -55°C to 125°C ensures performance in harsh environments.
Product Description

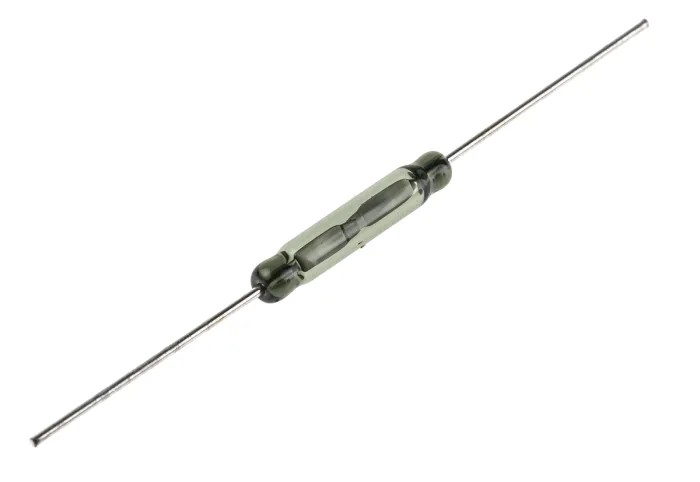

Assemtech RI-23 SPST PCB Reed Switch 500 mA 200 V dc is a precision reed switch housed in a hermetically sealed glass envelope that ensures long life and stable operation. This micro dry-reed switch contains two magnetically actuated reeds designed for reliable switching in various electrical circuit applications.
The SPST (single pole single throw) contact configuration provides a simple on/off switching mechanism suited for printed circuit board installations. With a maximum switching current of 500 mA and power rating up to 10 W, it is suitable for low power signal control and switching tasks.
Featuring a maximum switching voltage of 200 V dc and low contact resistance of 70 milliohms, this switch ensures efficient electrical conductivity with minimal signal loss. The contacts are crafted from ruthenium on gold, offering excellent corrosion resistance and longevity.
It offers a quick maximum release time of 30 microseconds and an operating time including bounce of just 0.25 milliseconds, supporting smooth and responsive switching action. The AT value range of 18 to 32 AT provides flexibility for magnetic actuation.

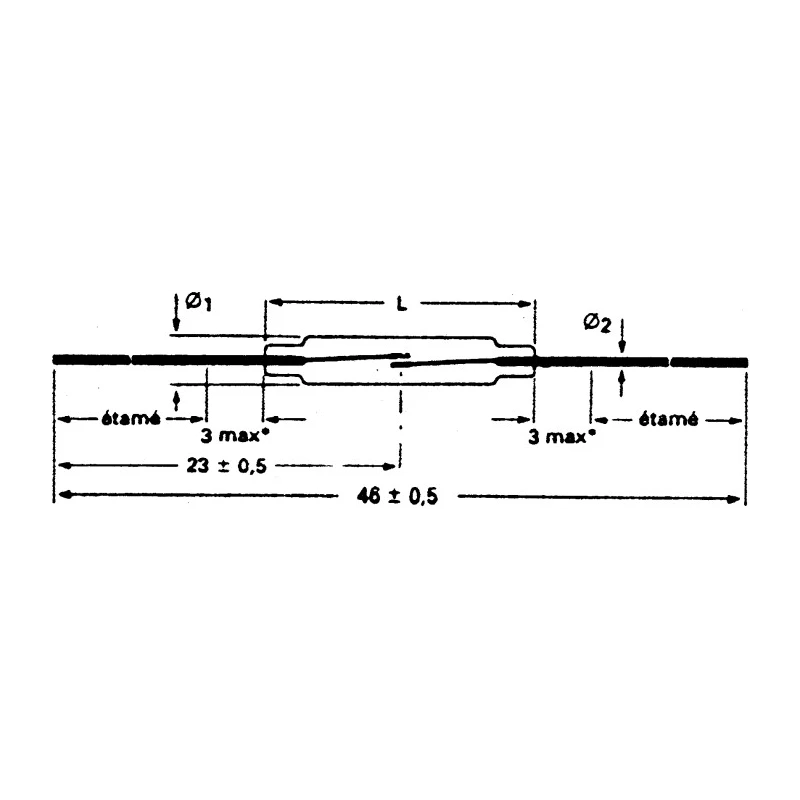

Designed for harsh and varied environments, the RI-23 operates reliably across a broad temperature range from -55°C to 125°C. Its compact design with a 46 mm length and 2.54 mm width enables straightforward PCB mounting utilizing wire terminals.
Certified to ISO standards and made in the Netherlands, this reed switch is ideal for use in telecommunication equipment, alarm systems, automotive electronics, test instrumentation, and other industrial, commercial, and laboratory applications.
SPST contact configuration for basic switching needs. Hermetically sealed glass envelope for protection and durability. Maximum current 500 mA and power rating 10 W for PCB circuitry. Low contact resistance and gold-ruthenium material for reliable conduction.
Fast response times reduce operational delays and bounce. Broad temperature range supports harsh environmental conditions. Compact size with wire terminal and PCB mount compatibility. ISO certified, made in the Netherlands.
Explore the Electronics & Electricals > Switches & Sockets > Reed Switch category at EnvMart for more industrial-grade switching solutions from trusted brands like Assemtech.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 500 mA, making it suitable for low power signal control and switching tasks.
It operates at a maximum switching voltage of 200 V dc, allowing it to be used in varied voltage applications.
This model features an SPST (single pole single throw) contact configuration, providing a simple on/off switching mechanism.
The contacts are constructed from ruthenium on gold, which offers excellent corrosion resistance and longevity.
The RI-23 operates reliably across a broad temperature range from -55°C to 125°C, suitable for harsh environments.
The maximum release time is 30 microseconds, supporting quick and responsive switching action.
The contact resistance is low at 70 milliohms, ensuring efficient electrical conductivity with minimal signal loss.
This model has a length of 46 mm and a width of 2.54 mm, designed for straightforward PCB mounting.
It has a maximum switching power rating of 10 W, suitable for various PCB circuitry applications.
The RI-23 is designed for PCB mounting and utilizes wire terminals for connection.
Yes, it is certified to ISO standards, ensuring compliance with recognized quality benchmarks.
This reed switch is ideal for use in telecommunication equipment, alarm systems, automotive electronics, and test instrumentation.
