ABB 3-Pole Bottom, Top Isolator Switch IP65, 315A, 19W

Free Delivery in India | Lowest Global Shipping Charges

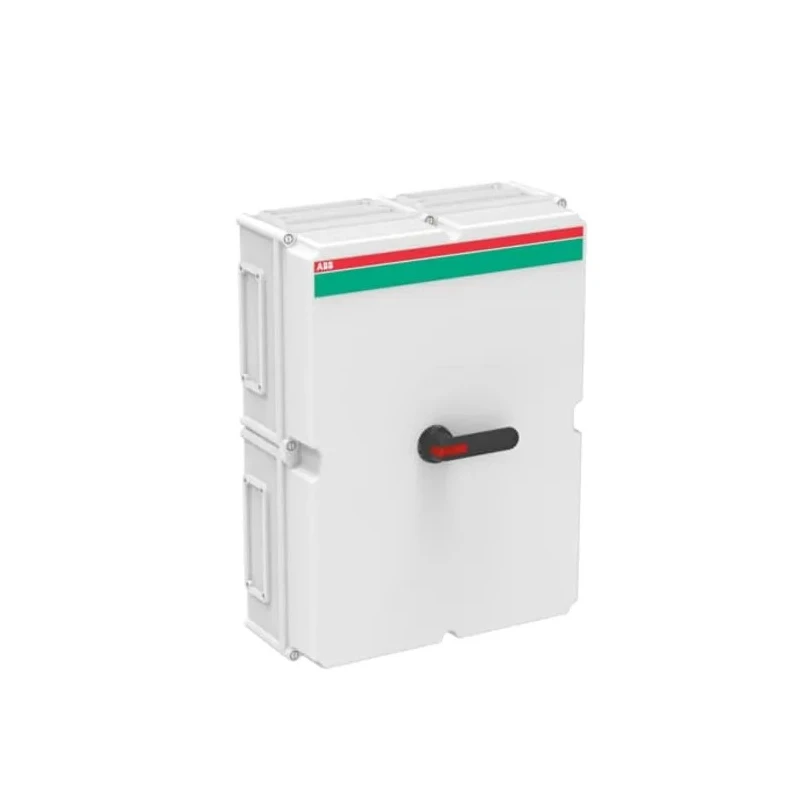

ABB 3-Pole Bottom, Top Isolator Switch IP65, 315A, 19W



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	560mm
Model	IP65
Depth	180mm
IP Rating	IP65
Width	380mm
Mount Type	Bottom, Top
Series	OS315BB3FCC3B
Switching Current	315A
Terminal type	Screw Clamp Terminal
Handle Colour	Black
Number of Poles	3
Standards/Approvals	IEC 60947-1-3
Switching AC Voltage	690V ac
Switching Power	19W

Key Features

Equipped with a sturdy black pistol handle designed for padlocking with up to three padlocks.
Interlocked cover ensures safety while allowing interlock to be overridden if necessary.
Includes N and PE terminals for comprehensive connectivity.
Rated for switching AC voltage up to 690V AC with screw clamp terminals for secure wiring.
Constructed with glass reinforced polycarbonate for robust environmental protection and mechanical strength.
Complies with IEC 60947-1-3 standards ensuring industrial-grade quality and safety.
Designed for industrial, electrical, automation, and manufacturing applications requiring high reliability.
Suitable for use in harsh environments due to IP65 ingress protection and pollution degree 3 rating.

Product Description

ABB 1SCA022281R0380 is a 3-pole enclosed isolator switch featuring bottom and top mounting options and rated IP65 for excellent dust and water ingress protection. This isolator switch is designed for safe and reliable disconnection in electrical distribution and industrial automation systems.

The switch uses a robust glass reinforced polycarbonate enclosure that ensures mechanical durability and insulation. It supports a switching current of 315A and a switching power of 19W, suitable for operations under AC voltages up to 690V.

Its black pistol-style handle is ergonomically designed for easy operation and padlockable with up to three padlocks for lockout-tagout procedures. The cover is interlocked to prevent accidental operation, but the interlock can be overridden under special conditions. Neutral (N) and Protective Earth (PE) terminals are included to meet wiring requirements.

Designed and manufactured to comply with IEC 60947-1-3 standards, this isolator switch is ideal for multiple heavy industrial and electrical applications requiring high performance and safety assurance.

The dimensions (560mm length, 380mm width, 180mm depth) provide a compact footprint while accommodating the necessary mechanical and electrical connections. The switch includes screw clamp terminals ensuring secure and stable wiring, and is compatible with B1-B3 fuse sizes within its series OS315BB3FCC3B.

Equipped with a sturdy black pistol handle designed for padlocking with up to three padlocks. Interlocked cover ensures safety while allowing interlock to be overridden if necessary. Includes N and PE terminals for comprehensive connectivity.

Rated for switching AC voltage up to 690V AC with screw clamp terminals for secure wiring. Constructed with glass reinforced polycarbonate for robust environmental protection and mechanical strength. Complies with IEC 60947-1-3 standards ensuring industrial-grade quality and safety.

Designed for industrial, electrical, automation, and manufacturing applications requiring high reliability. Dimensions are 560mm length, 380mm width, and 180mm depth for compact yet accessible installation. Suitable for use in harsh environments due to IP65 ingress protection and pollution degree 3 rating.

Compatible with B1-B3 fuse sizes and implemented in the OS315BB3FCC3B series.

This ABB isolator switch is suitable for industrial, electrical distribution, HVAC, manufacturing, and automation applications where secure and robust switching isolation is critical. Explore related products in the Isolator Switch category at EnvMart for complementary switching solutions and components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a switching current rating of 315A, making it suitable for high-current applications.

It is rated for switching AC voltage up to 690V AC, which allows for versatile applications in electrical systems.

The dimensions of this unit are 560mm in length, 380mm in width, and 180mm in depth, providing a compact footprint for installation.

It features screw clamp terminals, ensuring secure and stable wiring connections for reliable operation.

Yes, it has an IP65 ingress protection rating, making it suitable for use in harsh environments where dust and water ingress are concerns.

It includes an interlocked cover to prevent accidental operation, and the handle is designed for padlocking with up to three padlocks for lockout-tagout procedures.

This isolator switch complies with IEC 60947-1-3 standards, ensuring it meets industrial-grade quality and safety requirements.

It can be mounted from the bottom or the top, providing flexibility for installation in various setups.

It is rated for pollution degree 3, indicating it can operate effectively in environments with moderate pollution levels.

This unit is compatible with B1-B3 fuse sizes within the OS315BB3FCC3B series, ensuring appropriate protection in electrical circuits.

It is constructed with glass reinforced polycarbonate, providing robust environmental protection and mechanical strength.

It is designed for industrial, electrical distribution, HVAC, manufacturing, and automation applications requiring secure and reliable switching isolation.
