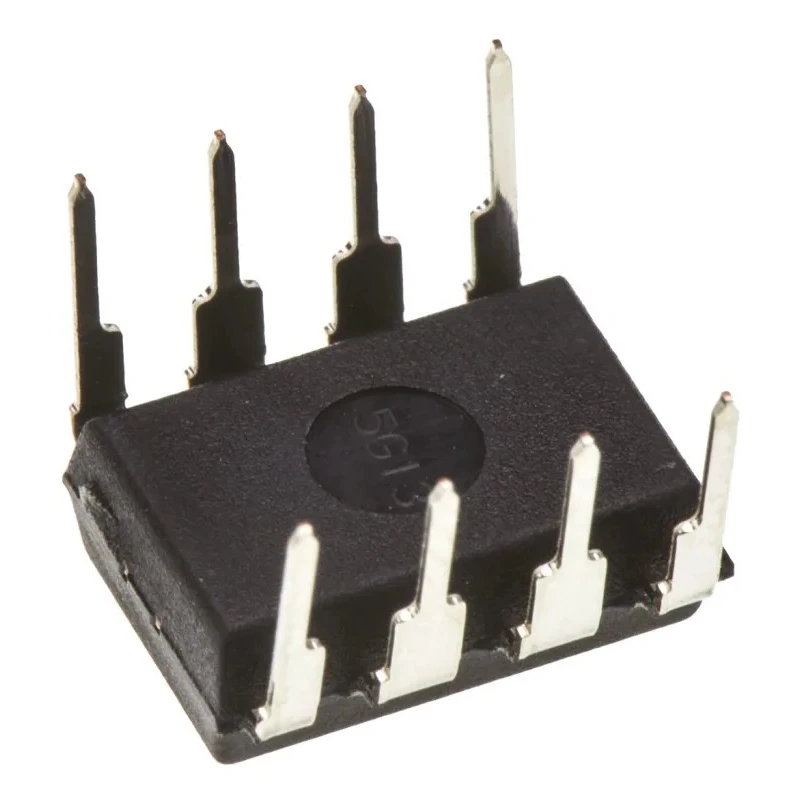

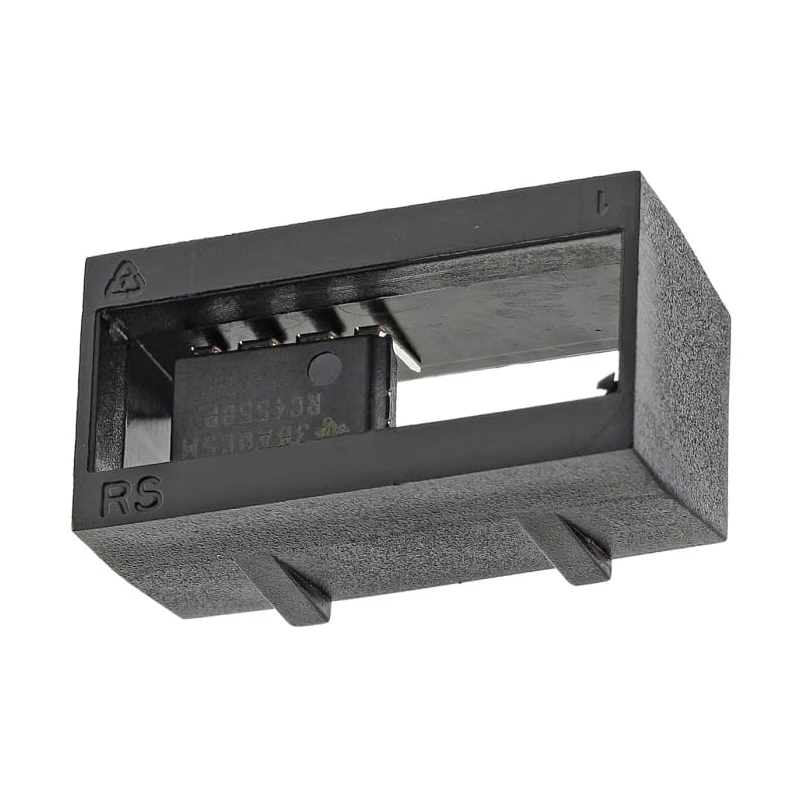

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth, 8-Pin PDIP, 18V RC4558P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | RC4558P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | RC4558 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 1.7V/μs |
| Input Offset Current | 300 nA |
Key Features
- Features a gain bandwidth product of 3 MHz suitable for precise analog signal processing.
- Operates with a voltage range from 5 V minimum to 18 V maximum.
- Equipped with low input offset voltage of 7.5 mV and input bias current of 800 nA.
- Supports through-hole mount technology with compact dimensions ideal for PCB integration.
- Offers a slew rate of 1.7 V/μs for efficient signal transition response.
- Functions reliably in temperatures from 0°C to 70°C for various operating environments.
- Package measures 9.81 mm length, 6.35 mm width, and 4.57 mm height with 8 pins.
- Part of the RC4558 series, suitable for diverse amplification and comparator applications.
Product Description
Texas Instruments RC4558P is a dual operational amplifier packaged in an 8-pin PDIP, delivering a gain bandwidth product of 3 MHz. This device is designed for general-purpose amplification with industry-standard electrical characteristics ensuring reliable performance in both industrial and laboratory electronic circuits.
The IC operates on a supply voltage ranging between 5 V to 18 V, enabling integration in various analog signal processing systems requiring moderate voltage amplitudes. Its input offset voltage is low at 7.5 mV, and it has an input bias current of 800 nA, allowing for precise input signal conditioning.
The amplifier supports through-hole mounting typical for prototyping and legacy systems. The device dimensions are compact at 9.81 mm length, 6.35 mm width, and 4.57 mm height, fitting well within standard PCB footprints.
With a slew rate of 1.7 V/μs, the RC4558P ensures quick signal transitions reducing distortion in high-frequency applications. This operational amplifier can function in ambient temperatures from 0°C to 70°C, suitable for typical commercial and industrial temperature ranges.
The product complies with necessary semiconductor standards, though no specific certifications are listed. It belongs to the RC4558 series by Texas Instruments known for stable analog performance.
Gain bandwidth product of 3 MHz. Supply voltage range 5 V to 18 V. Input offset voltage of 7.5 mV and input bias current of 800 nA. Slew rate of 1.7 V/μs. Compact 8-pin PDIP package for through-hole mounting.
This operational amplifier is ideal for industrial machines, instruments, audio and signal processing equipment, and laboratory electronic systems where dependable amplification and signal integrity are required.
Explore more Operational Amplifiers and semiconductor components on EnvMart for your advanced electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the RC4558P operational amplifier is 3 MHz, making it suitable for precise analog signal processing.
This operational amplifier operates with a supply voltage range from 5 V minimum to 18 V maximum.
The dimensions of this operational amplifier are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage of the RC4558P is 7.5 mV, allowing for precise input signal conditioning.
The slew rate of the RC4558P is 1.7 V/μs, which facilitates efficient signal transition response.
This operational amplifier has an input bias current of 800 nA.
The RC4558P supports through-hole mounting, which is typical for prototyping and legacy systems.
This model can function reliably in temperatures ranging from 0°C to 70°C.
The RC4558P is a dual operational amplifier, meaning it has 2 channels.
The RC4558P comes in an 8-pin PDIP package, suitable for compact PCB integration.
This operational amplifier is part of the RC4558 series by Texas Instruments, known for stable analog performance.
This operational amplifier is suitable for diverse amplification and comparator applications in industrial machines, instruments, and audio signal processing equipment.
