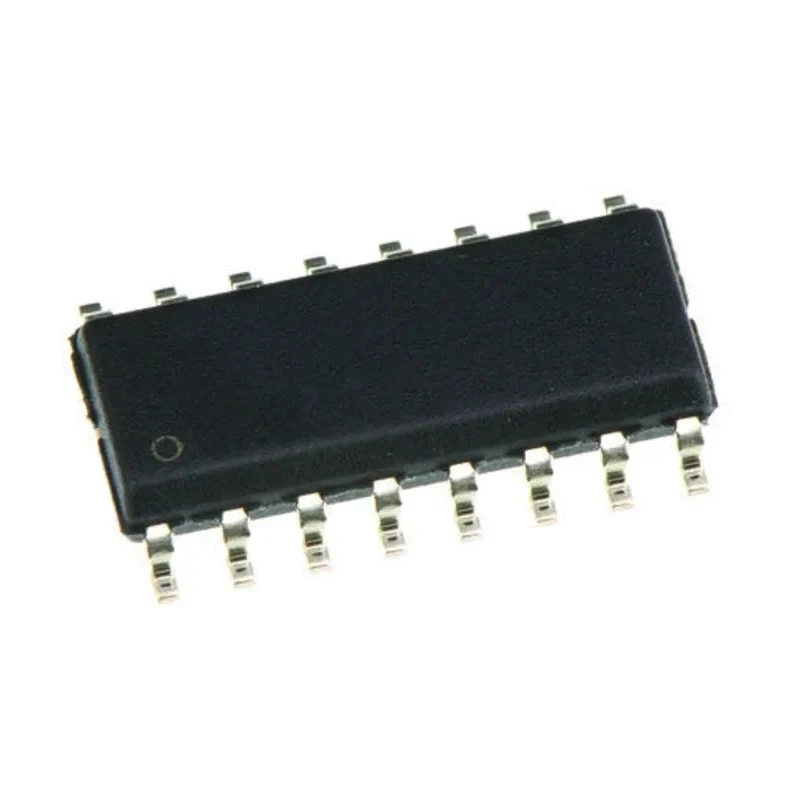

Nexperia Inverting Single Ended Buffer Logic IC, 16-Pin SO, 3-15V, 70ns Propagation Delay HEF4049BT,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 10mm |
| Model | HEF4049BT,653 |
| Mount Type | Surface |
| Output type | Single Ended |
| Series | HEF4049B |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 15V |
| Logic Family | HEF |
| Logic Function | Buffer |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -3.6mA |
| Maximum Propagation Delay Time @ CL | 70ns |
| Supply Current | 50mA |
| Maximum Low Level Output Current | 24mA |
| Wide operating voltage range | 3 to 18V |
| onsemi MC14049BDR2G CMOS Inverter 1, 16-Pin SOICBrand | onsemi |
Key Features
- The device features a single channel buffer with inverting polarity output.
- Wide operating voltage range from 3V to 15V.
- Maximum propagation delay time of 70 nanoseconds at capacitive load.
- Operating temperature range from -40°C to 85°C.
- Compact 16-pin SOP package with height of 1.45mm and length of 10mm.
- Maximum high level output current of -3.6mA and low level output current of 24mA.
- Supply current consumption of 50mA with no Schmitt trigger input.
- Ideal for electronic, power connector, and semiconductor buffer applications.
Product Description
The Nexperia HEF4049BT,653 is an inverting single ended buffer logic IC housed in a 16-pin SOP package designed for surface mounting. This device accommodates TTL and CMOS input types, providing flexible integration in various electronic circuits.
Operating over a wide supply voltage range from 3V minimum to 15V maximum, this buffer device supports robust performance with a fast propagation delay time of 70 nanoseconds at capacitive load. Its single channel inverting logic with single ended output ensures signal integrity in logic applications.
With a compact physical size of 1.45mm height and 10mm length, the IC supports efficient board layouts. The device operates reliably over a broad temperature range from -40°C up to 85°C, making it suitable for diverse industrial and electronic applications demanding temperature resilience.
The maximum high level output current allowed is -3.6mA while the maximum low level output current is 24mA, with a supply current consumption of 50mA. This product belongs to the HEF4049B series of Nexperia's CMOS logic family, particularly designed for buffer functionalities without Schmitt trigger inputs and no automotive standard certifications.
This buffer IC is commonly utilized in semiconductor manufacturing, electronic designs, power and connectors systems where single channel inverting buffering is required with high switching speed and stable output characteristics.
The device features a single channel buffer with inverting polarity output. Wide operating voltage range: 3V to 15V. Maximum propagation delay time of 70ns at capacitive load. Operating temperature range from -40°C to 85°C.
Compact 16-pin SOP package with 1.45mm height and 10mm length. Maximum high level output current -3.6mA and low level output current 24mA. Supply current of 50mA with no Schmitt trigger input. Suitable for electronic components, power & connectors, and semiconductor buffer applications.
Explore the Nexperia category for more semiconductor buffer ICs and related products at EnvMart.
Explore more products in our Buffers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 15V.
This unit has a maximum propagation delay time of 70 nanoseconds at capacitive load.
It operates over a temperature range from -40°C to 85°C.
The device provides a single ended output with inverting polarity.
This model features a single channel buffer.
The package height is 1.45mm and the length is 10mm.
The maximum low level output current is 24mA.
It accommodates TTL and CMOS input types, providing flexibility in integration.
The supply current consumption is 50mA with no Schmitt trigger input.
It is suitable for electronic designs, power connectors, and semiconductor buffer applications.
This model belongs to the HEF logic family.
This unit is designed for surface mounting.
