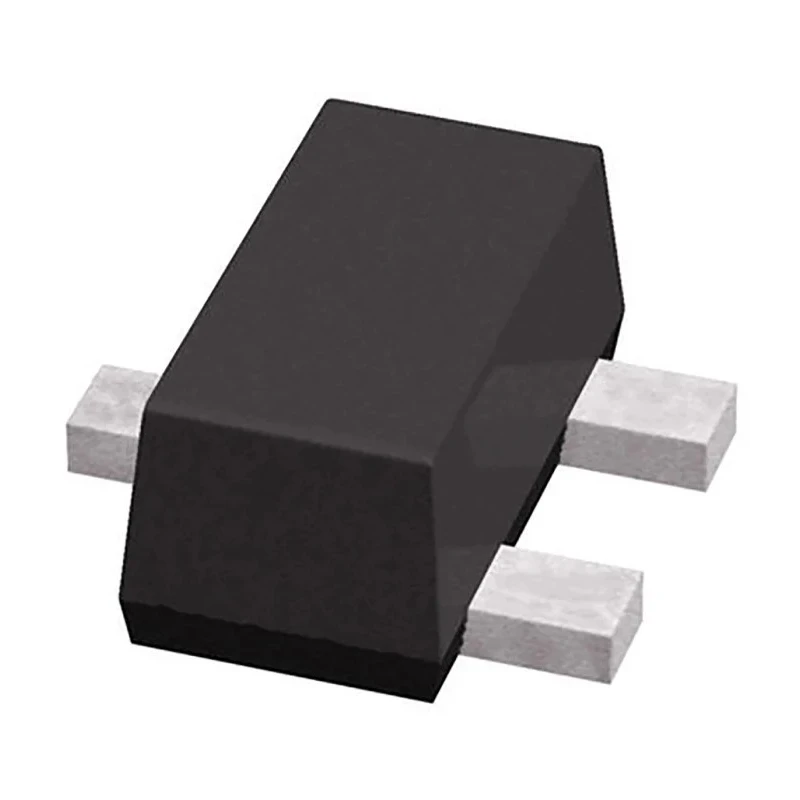

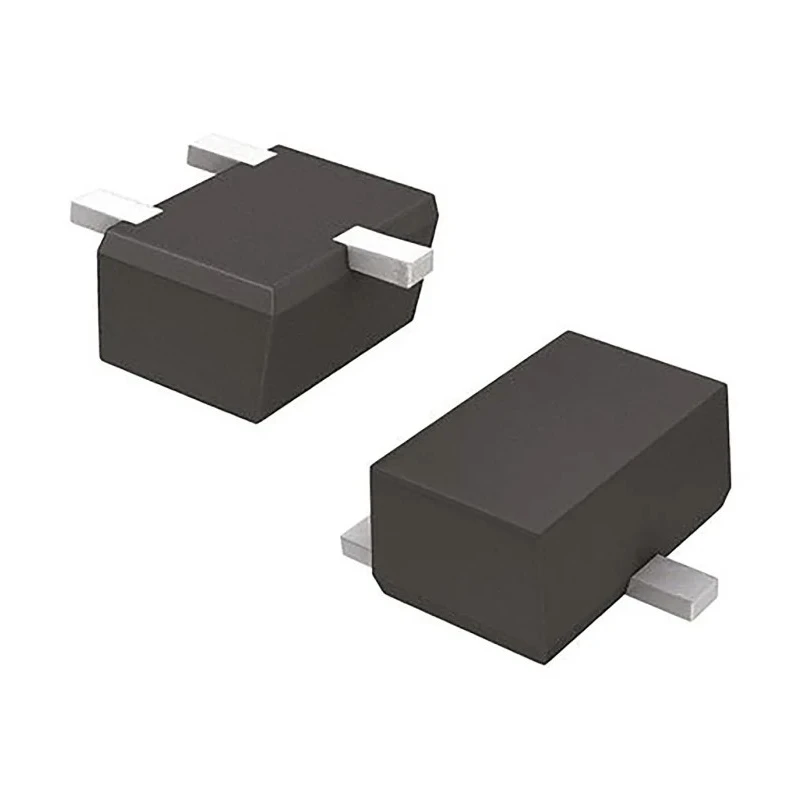

ROHM PNP Small-Signal Transistor 100 mA, 50 V, 3-Pin SOT-323 2SAR523UBTL

Free Delivery in India | Lowest Global Shipping Charges

ROHM PNP Small-Signal Transistor 100 mA, 50 V, 3-Pin SOT-323 2SAR523UBTL

Name: ROHM PNP Small-Signal Transistor 100 mA, 50 V, 3-Pin SOT-323 2SAR523UBTL
Brand: ROHM
SKU: 301107
Price: 0.04 USD
Availability: InStock



Category Bipolar Transistors Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.05mm
Length	2.1mm
Model	2SAR523UBTL
Width	1.35mm
Mount Type	Surface
Series	2SAR523UB
Maximum Operating Temperature	150°C
Package Type	SOT-323
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-50V
Minimum DC Current Gain hFE	120
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-6V
Maximum Collector Base Voltage VCBO	-50V
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	-100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	300MHz

Key Features

Maximum collector current of 100 mA.
Collector emitter voltage rated at 50 V.
Surface mount type suitable for compact PCB designs.
Minimum DC current gain (hFE) of 120.
Maximum power dissipation of 200 mW.
Operating temperature up to 150°C.
High transition frequency of 300 MHz.
Compact dimensions with length 2.1 mm, width 1.35 mm, and height 1.05 mm.

Product Description

ROHM 2SAR523UBTL is a bipolar PNP small-signal transistor packaged in a compact 3-pin SOT-323 surface mount package. It features a maximum DC collector current of 100 mA and can withstand a collector emitter voltage of up to 50 V. This transistor is well suited for low power switching and amplification tasks in electronic circuits.

Its small size dimensions (2.1 mm length, 1.35 mm width, and 1.05 mm height) make it ideal for densely populated circuit boards, while its high maximum operating temperature of 150°C assures performance under demanding conditions. The minimum DC current gain (hFE) of 120 and maximum transition frequency of 300 MHz enable efficient amplification and fast electronic switching applications in consumer electronics, communication devices, and industrial controls.

The device dissipates a maximum power of 200 mW and is designed for single transistor bipolar operation without any automotive compliance requirements. Its surface mount package enables automated assembly, thus improving manufacturing efficiency in electronic component production.

This transistor is broadly applicable in industrial, electronic manufacturing, communication, and instrumentation sectors where small form factor and reliable switching are essential.

Maximum collector current of 100 mA. Maximum collector emitter voltage of 50 V. Surface mount SOT-323 package for space-saving PCB layouts. Minimum DC current gain (hFE) of 120 for effective signal amplification. Maximum power dissipation of 200 mW.

Operating temperature range up to 150°C. High transition frequency of 300 MHz for fast switching. Compact dimensions of 2.1 mm (L) x 1.35 mm (W) x 1.05 mm (H). PNP bipolar transistor configuration suitable for general electronic uses.

RoHS compliant ensuring environmental safety. Explore the ROHM transistor range at EnvMart for advanced semiconductor components designed to meet modern electronic circuit demands.
