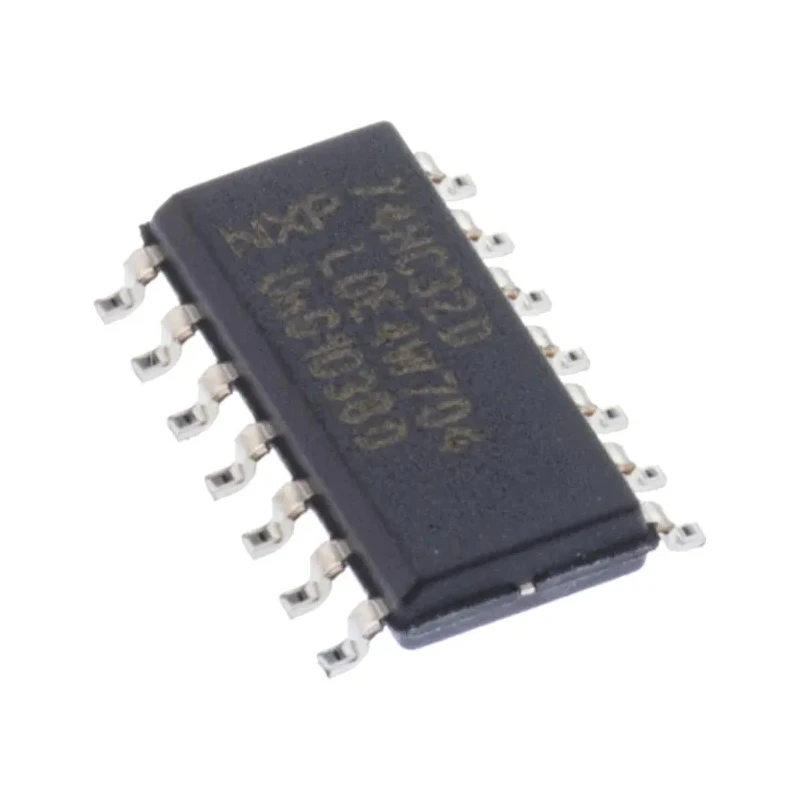

Nexperia 4 2-Input OR Logic Gate Surface Mount CMOS TTL 14-Pin SOIC 74HC32D,652
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 8.75mm |
| Model | 74HC32D,652 |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Series | 74HC |
| Input Type | CMOS, TTL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 2 to 6 V |
| Standards/Approvals | JEDEC JESD7A |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | OR |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 135ns |
| Maximum Low Level Output Current | 5.2mA |
| Number of Inputs per Gate | 2 |
| Nexperia 74HC32D,652, Quad 2-Input OR Logic Gate, 14-Pin SOICBrand | Nexperia |
Key Features
- Implements four independent 2-input OR logic gates for digital signal processing.
- Operates within a voltage range of 2V to 6V, suitable for low power electronics.
- Maximum propagation delay time is 135ns at typical load conditions.
- Designed for operation from -40°C to 125°C ensuring reliability across environments.
- Complies with JEDEC JESD7A standards ensuring industry compatibility.
- Compact dimensions include 8.75mm length and 1.45mm height supporting high-density PCB layouts.
- Supports CMOS input and output, providing high speed with low power consumption.
- Maximum output current ratings are ±5.2mA for both high and low states.
Product Description
Nexperia 74HC32D,652 is a 4 2-Input OR Logic Gate designed for surface mount applications with CMOS and TTL input compatibility. It is housed in a 14-pin SOIC package offering a compact footprint for modern digital circuit designs.
This high-speed CMOS logic device operates over a supply voltage range of 2V to 6V, making it suitable for low power electronic systems. The device maintains reliable performance over a broad temperature range from -40°C to 125°C, which is critical for industrial, automotive, and commercial applications where temperature variation is expected.
The logic gate features four independent 2-input OR gates with a maximum propagation delay of 135 nanoseconds, ensuring timely logic operations in complex circuit implementations. The device conforms to JEDEC JESD7A standards which guarantees compatibility and reliability in electronic designs.
Physically, the SOIC package measures 8.75 mm in length and 1.45 mm in height, enabling integration in high-density printed circuit boards. Output current capability supports ±5.2mA allowing it to drive inputs of other logic devices effectively.
Typical use cases for this logic gate include digital signal processing, control systems, embedded systems, and general-purpose logic applications in industrial automation, telecommunications, and computing hardware.
Implements four independent 2-input OR logic gates. Operates from 2 to 6 volts supply, compatible with CMOS and TTL logic levels. Wide operating temperature from -40°C to 125°C. Fast propagation delay of 135ns suitable for high-speed circuits.
Complies with JEDEC JESD7A industry standard. Compact 14-pin SOIC surface mount package. Max output current ±5.2mA for reliable driving capability. Applications include industrial, automotive, and commercial electronic designs.
This Logic Gate is essential for engineers and designers requiring compact, reliable logic circuits with low power consumption and high performance. Explore the comprehensive range of semiconductor components in EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 2V to 6V.
The maximum propagation delay time is 135 nanoseconds at typical load conditions.
It is designed to operate within a temperature range of -40°C to 125°C.
This model implements four independent 2-input OR logic gates.
The SOIC package measures 8.75 mm in length and 1.45 mm in height.
It supports CMOS input and output, making it compatible with both CMOS and TTL logic levels.
The maximum output current ratings are ±5.2mA for both high and low states.
It complies with JEDEC JESD7A standards, ensuring compatibility in electronic designs.
This logic gate has a pin count of 14.
It is suitable for digital signal processing, control systems, embedded systems, and general-purpose logic applications.
The logic family of the 74HC32D,652 is HC.
It is designed for surface mount applications.
