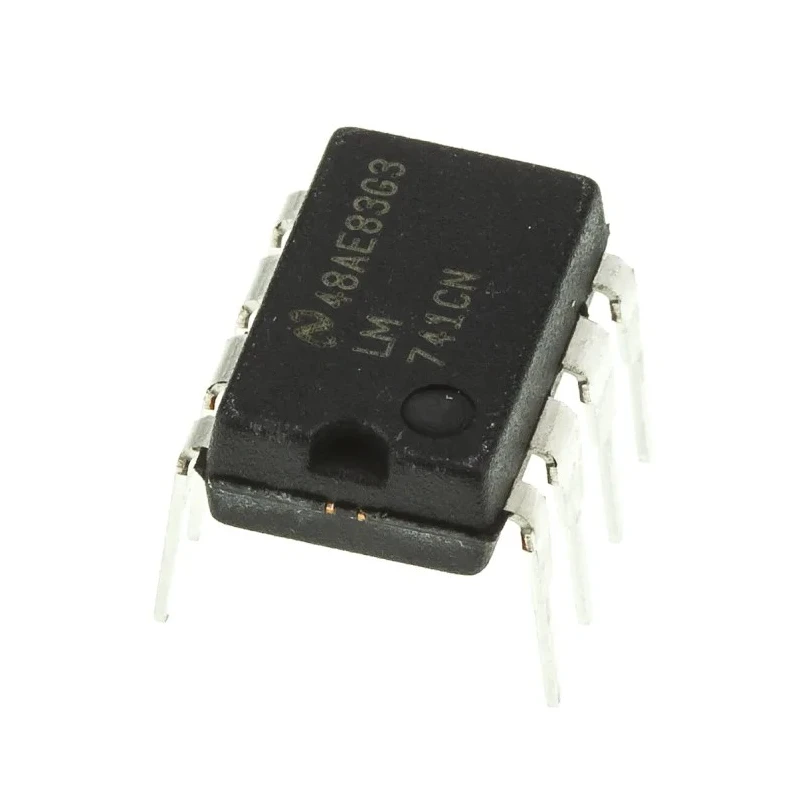

Texas Instruments Operational Amplifier 1 MHz 8-Pin 18V MDIP LM741CN/NOPB
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | LM741CN/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM741 |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 10V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1.5 μA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 500 nA |
Key Features
- Features a gain bandwidth product of 1 MHz.
- Supports supply voltages from 10V to 18V for flexible power use.
- Designed with low input bias current of 1.5 μA for precision.
- Offers an input offset voltage of 6 mV to maintain circuit accuracy.
- Operates reliably within 0°C to 70°C temperature range.
- Equipped with an 8-pin MDIP package suitable for through-hole mounting.
- Compact dimensions measuring 9.27 mm length, 6.35 mm width, and 3.3 mm height.
- Suitable for general electronic amplifier circuits and signal conditioning.
Product Description
The Texas Instruments LM741CN/NOPB is a versatile operational amplifier featuring a 1 MHz gain bandwidth product, housed in an 8-pin MDIP package optimized for through-hole mounting. Ideal for a broad range of electronic circuit designs, including amplification and signal conditioning applications.
Operating voltage levels range from 10 V up to 18 V, allowing it to adapt to various power supply conditions. The low input bias current of 1.5 μA and input offset voltage of 6 mV ensure precise electronic performance with minimal signal distortion.
With its operating temperature range of 0°C to 70°C, this amplifier is well-suited for commercial and industrial environments. Its compact physical dimensions of 9.27 mm length, 6.35 mm width, and 3.3 mm height offer efficient PCB space utilization.
The LM741 series is well-known for providing cost-effective performance in non-specialist applications, supporting single-channel operation in this case, and available in industry-standard packaging for easy integration.
Gain bandwidth product of 1 MHz. Supply voltage range from 10V to 18V. Input bias current at 1.5 μA for accuracy. Input offset voltage of 6 mV for signal precision. Operating temperature from 0°C to 70°C. Compact 8-pin MDIP package for through-hole mounting.
Dimensions: length 9.27 mm, width 6.35 mm, height 3.3 mm.
This operational amplifier finds applications in industrial electronics, laboratory equipment, instrumentation, and general-purpose signal processing tasks. It offers reliable operation and ease of use for electronic engineers and technicians.
Explore more Operational Amplifiers and related semiconductor components on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
It supports supply voltages ranging from 10V to 18V.
The input bias current is 1.5 μA, which helps ensure precision in performance.
The input offset voltage is 6 mV, which contributes to maintaining circuit accuracy.
It operates reliably within a temperature range of 0°C to 70°C.
The dimensions are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
It is housed in an 8-pin MDIP package suitable for through-hole mounting.
This model supports single-channel operation.
The slew rate is 0.5 V/μs.
It is suitable for general electronic amplifier circuits and signal conditioning applications.
The input offset current is 500 nA.
The country of origin for this operational amplifier is Malaysia.
