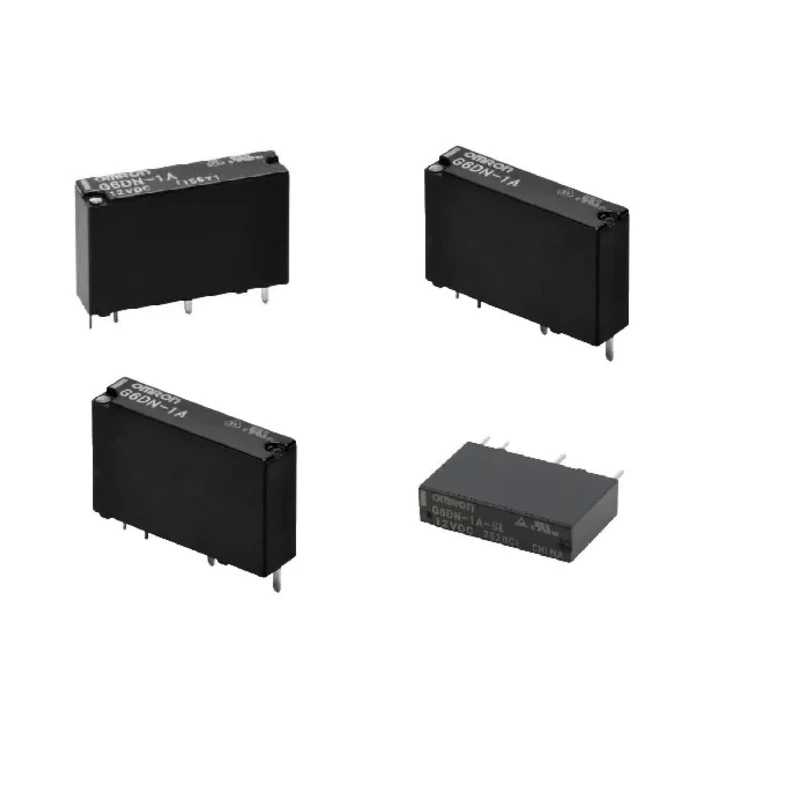

Omron PCB Power Relay 24V DC Coil 5A Switching Current SPST G6DN-1A-SL DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G6DN-1A-SL DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5.2kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 110mW |
Key Features
- Features silver alloy contacts for high reliability.
- Operates at coil power of 110mW ensuring low power consumption.
- Designed for operating temperatures between -40°C to 70°C.
- Compact dimensions with length 50mm, width 10mm, and height 15mm.
- Switching DC voltage up to 60V DC and AC voltage up to 240V AC.
- Coil resistance measures 5.2kΩ with a coil current of 4.6mA.
- Silver alloy contact material reduces contact resistance to 100mΩ.
- Mounts securely on PCB with screw terminals.
Product Description
Omron G6DN-1A-SL DC24 is a robust PCB power relay designed for high switching capacity and excellent contact reliability in industrial, electronic, and automation applications. Featuring a Single Pole Single Throw (SPST) contact configuration, this relay supports a coil voltage of 24V DC and a switching current of 5A suitable for controlling moderate loads.
The relay's compact dimensions of 50mm length, 10mm width, and 15mm height make it suitable for tight PCB layouts. Coil power consumption is minimal at 110mW, supporting efficient power management in embedded systems.
The silver alloy contacts ensure high durability and low contact resistance, rated at 100mΩ, minimizing signal loss and wear over time. It operates reliably within a temperature range from -40°C to 70°C, suitable for a broad range of industrial environments including manufacturing, HVAC control systems, automation controllers, and instrumentation.
Featuring a screw terminal mounting type on PCB and compliance with RoHS standards, this relay integrates easily into industrial manufacturing equipment and electronic assemblies requiring precise switching performance.
Silver alloy contacts provide excellent conductivity and longevity. Low power coil consumption enhances system efficiency. Wide operating temperature range supports harsh conditions. Compact form factor for dense PCB integration.
Supports up to 60V DC and 240V AC switching voltages. Screw terminal mounting ensures stable physical and electrical connection. Meets RoHS compliance for environmental safety.
This Omron power relay G6DN-1A-SL DC24 is ideal for applications in industrial control systems, automation, and electronic circuit protection. Explore more in the Power Relay category at EnvMart for a wide range of industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 5A.
The coil voltage for this relay is 24V DC.
It has dimensions of 50mm in length, 10mm in width, and 15mm in height.
This relay uses a PCB mounting type with screw terminals.
The contact configuration is Single Pole Single Throw (SPST).
It supports a maximum switching voltage of 60V DC and 240V AC.
The coil resistance measures 5.2kΩ.
The coil power consumption is 110mW.
It operates within a temperature range of -40°C to 70°C.
The contacts are made of silver alloy, which reduces contact resistance to 100mΩ.
Yes, it meets RoHS compliance for environmental safety.
This relay is suitable for industrial control systems, automation, and electronic circuit protection.
