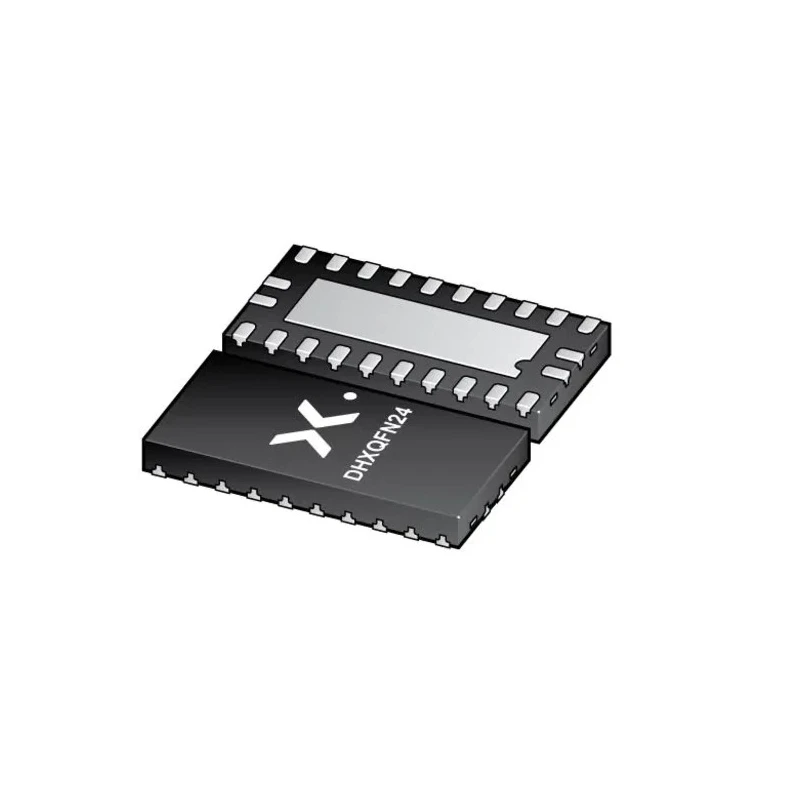

Nexperia 8-Bit Non-Inverting TTL Logic Level Translator Dual Supply Translating Transceiver 24-Pin SOT-8024 74LVC8T245BZX

Nexperia 74LVC8T245BZX is a high-performance 8-bit non-inverting logic level translator designed for dual supply voltage applications. It supports bidirectional level translation between various low voltage nodes from 1.2 V to 5.5 V, making it ideal for interfacing different logic families in electronic circuits.

This logic level translator features 8 channels with 3-state output capability for effective bus isolation. The device includes direction control input (DIR), output enable input (OE), and separate power supply pins for each side (VCC(A) and VCC(B)). High-speed operation is enabled with a maximum propagation delay of only 4.1 nanoseconds at the specified load capacitance.

Manufactured with a compact SOT-8024 surface mount package, the component measures 2 mm in length and 480 μm in height, ensuring minimal PCB footprint. Its low power consumption and partial power-down capability using IOFF circuitry make it suitable for battery-powered and low-power applications.

Operating temperature ranges from -40°C to +125°C, making it robust enough for industrial and commercial environments. TTL compatible input and output levels allow easy interfacing with legacy systems.

The device meets RoHS compliance standards for environmental safety and offers excellent latch-up immunity exceeding 100 mA per JESD 78B Class II guidelines. Active bus hold circuitry maintains input stability preventing floating inputs when not driven.

Allows bidirectional level translation between 1.2 V to 5.5 V supply voltages. Supports 8 channels with non-inverting TTL logic. Dual supply pins with separate references for port A and port B. Low power consumption at 30 µA maximum ICC.

Partial power-down support via IOFF circuitry. Fast maximum propagation delay of 4.1 ns. Wide temperature operation from -40°C to 125°C. Compact SOT-8024 24-pin surface mount package.

This part is suitable for electronic component design, PCB integration, and applications in industrial automation systems, communication devices, and consumer electronics requiring voltage level shifting and logic interfacing. Explore more semiconductor solutions and components on EnvMart to enhance your circuit design projects.
