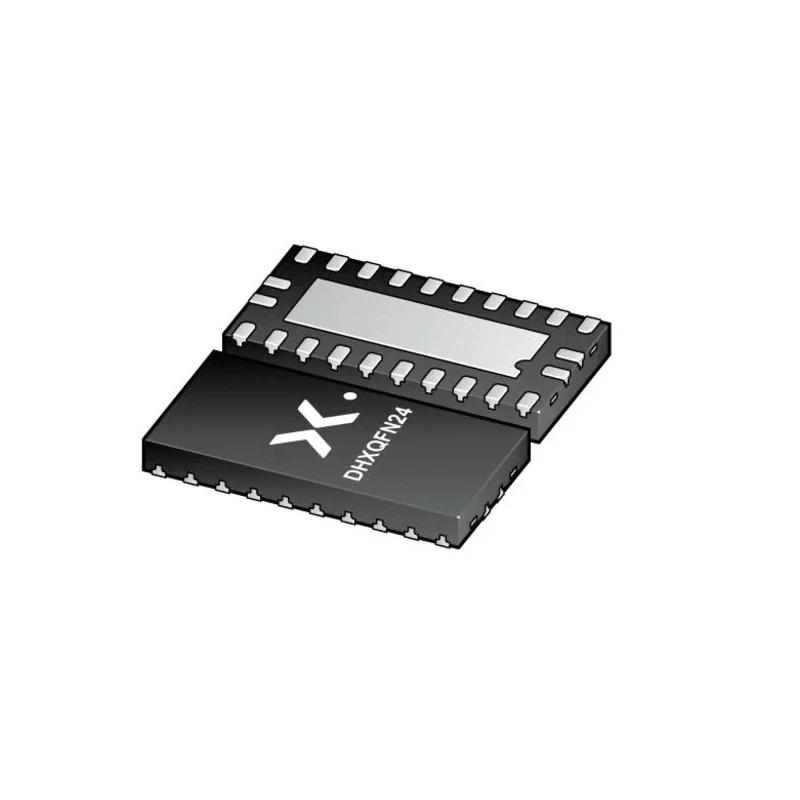

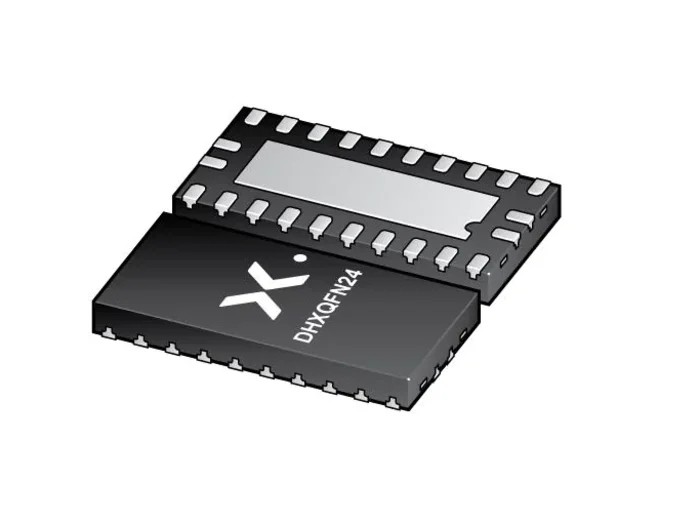

Nexperia 8-Bit Non-Inverting Logic Level Translator, TTL Input/Output, 3-5.5V Supply, 24-Pin SOT-8024 Package 74LVC8T245BZX

Nexperia 74LVC8T245BZX is an 8-bit non-inverting logic level translator designed for bidirectional voltage level shifting between different TTL logic levels in semiconductor applications. It utilizes dual supply pins (VCC(A) and VCC(B)) enabling operation from 1.2 V up to 5.5 V, which makes it versatile for translating between multiple low-voltage nodes including 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V. The device features 8 channels enabling simultaneous data translations.

With a 24-pin SOT-8024 package, the translator supports surface mount technology. It uses pins An and Bn for data lines with a direction control input (DIR) to select translation direction and an output enable input (OE) for enabling or isolating output states. The 3-state outputs facilitate bus isolation when required.

It operates with a maximum propagation delay of 4.1 nanoseconds and supports output drive currents up to ±24 milliamps at a 3 V supply voltage, suitable for driving typical TTL loads efficiently. Power consumption is minimal, with a maximum ICC of 30 microamperes, enhancing energy efficiency in applications.

Designed to withstand harsh environments, it supports a wide operating temperature range from -40°C to +125°C, making it suitable for industrial, manufacturing, and electronic systems in automotive and commercial sectors. The device includes IOFF circuitry that disables outputs in power-down mode, preventing damage from backflow currents when powered off.

Its latch-up immunity exceeds 100 mA according to JESD 78B Class II standards, ensuring device reliability in complex electronic systems. The 74LVC8T245BZX complies with RoHS environmental standards, reflecting responsible manufacturing and reduced hazardous substances.

Supports dual supply voltages for flexible logic level translation. Bidirectional 8-channel translating transceiver with non-inverting outputs. 3-state output enable for bus isolation and power-down support. Low power operation with 30 μA maximum ICC current.

Wide operating temperature range of -40°C to +125°C for industrial use. Latch-up performance exceeds 100 mA per JESD 78B. RoHS compliant and housed in a compact surface mount 24-pin SOT-8024 package.

This logic level translator is ideal for bridging voltage differences in electronic components and buses in industrial automation, telecommunications, and embedded systems. Its high speed, low power, and flexible voltage supply make it invaluable in modern electronics requiring robust, reliable signal integrity across varying voltage domains.
