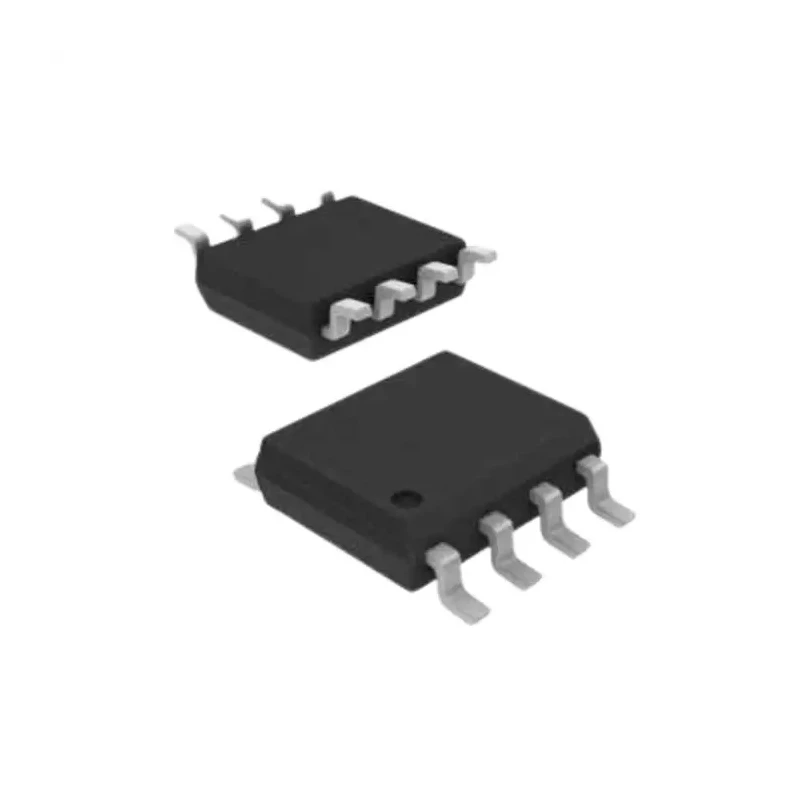

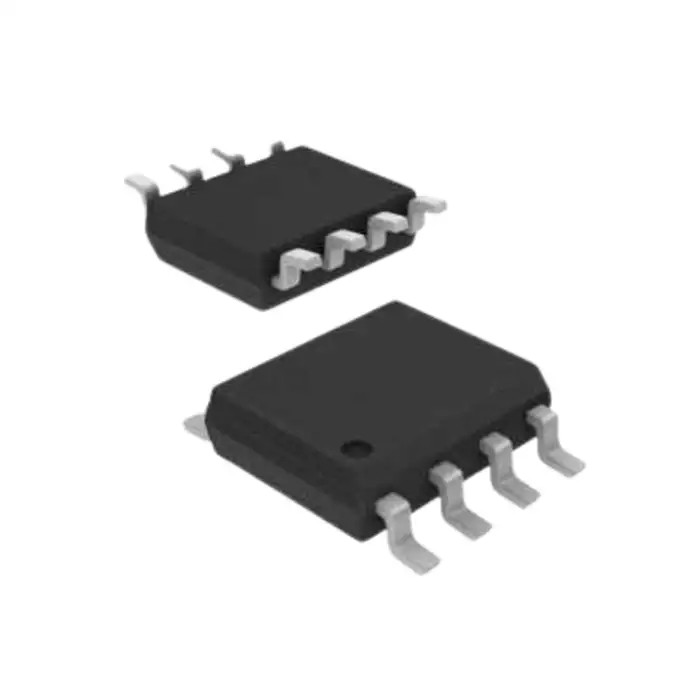

Nisshinbo Micro Devices Dual Channel Operational Amplifier 8 MHz Gain Bandwidth, 8-Pin DMP Package NJM4556AM-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4556AM-TE1 |
| Mount Type | Surface |
| Series | NJM4556A |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 3V/μs |
| Input Offset Current | 60 nA |
Key Features
- This amplifier operates at a maximum supply voltage of 18V with a minimum of 2V.
- It provides low input bias current of 500 nA and low input offset current of 60 nA.
- Designed to operate within a temperature range of -40°C to 85°C.
- Features a high slew rate of 3 V/μs for fast signal response.
- Input offset voltage is low at 6 mV for precise amplification.
- Constructed using bipolar technology for stability and reliability.
- Ideal for audio, telecommunications, and instrumentation applications.
- RoHS compliant ensuring environmental safety standards.
Product Description
The Nisshinbo Micro Devices NJM4556AM-TE1 is a dual channel Operational Amplifier, engineered with an 8 MHz gain bandwidth product and housed in an industry-standard 8-pin DMP surface-mount package. This device supports a wide supply voltage range from 2V up to 18V, making it versatile for various electronic circuit applications.
Designed for applications demanding high performance, it features a high slew rate of 3 V/μs, which enables fast and accurate signal processing. The low input bias current of 500 nA and an input offset current of 60 nA ensure minimal error and precise operation in sensitive measurement systems.
Operating efficiently under temperature extremes from -40°C to 85°C, this amplifier is suitable for harsh environmental conditions. The input offset voltage is tightly controlled at 6 mV, providing stability and accuracy.
Constructed using bipolar technology, the NJM4556AM-TE1 minimizes noise and distortion, making it ideal for audio, telecommunications, and instrumentation use cases. The amplifier can drive loads as low as 150 Ω, enhancing its practical utility in demanding signal conditioning scenarios.
This component complies with RoHS standards, ensuring it meets latest environmental safety requirements, and it belongs to the NJM4556A series designed for reliable industrial and commercial applications.
This amplifier’s dual channel design supports complex circuit configurations. High gain bandwidth allows operation at frequencies up to 8 MHz. Surface mount package facilitates modern PCB assembly processes. Wide operating temperature range extends device usability.
Low offset parameters ensure signal integrity and precision.
For engineers and designers implementing audio amplification, telecom equipment, or instrumentation, the NJM4556AM-TE1 provides a robust, low noise, and reliable solution. Its compact package and high electrical performance offer a balance of ease of integration and technical excellence. Explore more products and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM4556AM-TE1 has a gain bandwidth product of 8 MHz, allowing for effective signal amplification at high frequencies.
This model operates with a supply voltage ranging from a minimum of 2V to a maximum of 18V.
The input offset voltage for this operational amplifier is 6 mV, ensuring accurate signal amplification.
It features a dual channel design, which allows for complex circuit configurations.
The operational amplifier can function effectively within a temperature range of -40°C to 85°C.
This model has a high slew rate of 3 V/μs, enabling fast signal response.
It is housed in an 8-pin DMP surface-mount package, suitable for modern PCB assembly.
The NJM4556AM-TE1 has a low input bias current of 500 nA, minimizing errors in sensitive applications.
The input offset current for the NJM4556AM-TE1 is 60 nA, contributing to its precision in operation.
Yes, this amplifier is RoHS compliant, meeting environmental safety standards.
It is ideal for use in audio, telecommunications, and instrumentation applications due to its performance characteristics.
The country of origin for this operational amplifier is India.
