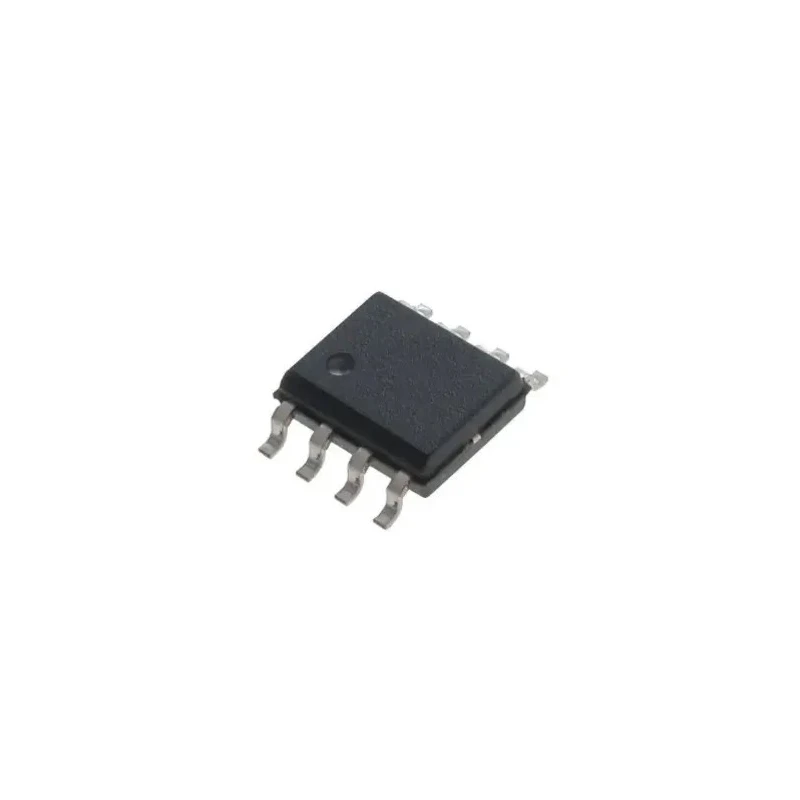

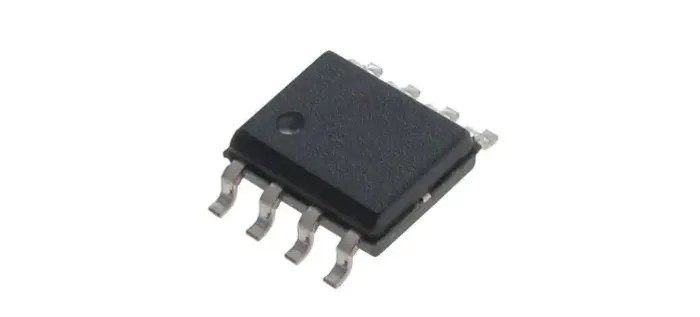

Nisshinbo Micro Devices Operational Amplifier Dual Channel Surface Mount 3 MHz 18V 8-Pin SSOP NJM4558V-TE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4558V-TE2 |
| Mount Type | Surface |
| Series | NJM4558 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 200 nA |
Key Features
- Dual channel operational amplifier with bipolar technology for excellent performance.
- Surface mount SSOP package with 8 pins suitable for compact PCB designs.
- Gain bandwidth product of 3 MHz enables high-speed amplification.
- Wide supply voltage range from 4 V to 18 V for versatile applications.
- Low input bias current of 500 nA and input offset voltage of 6 mV for precision analog signals.
- Slew rate of 1 V/μs supports fast output voltage transitions.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- RoHS-compliant device ensuring environmental safety standards.
Product Description
Nisshinbo Micro Devices NJM4558V-TE2 is a dual operational amplifier designed for surface mount applications in electronics and semiconductor industries. It features a compact 8-pin SSOP package, optimized on a single silicon chip with internal compensation for reliable analog signal amplification.
The device provides a gain bandwidth product of 3 MHz and operates over a supply voltage range of 4 to 18 volts, making it suitable for a variety of power supply conditions. With a low input bias current of 500 nA and a minimal input offset voltage of 6 mV, it offers precision signal processing in demanding circuit applications.
Operating temperature spanning from -40°C to +85°C ensures stable performance in harsh industrial environments. The slew rate of 1 V/μs enables the amplifier to handle rapid changes in output voltage effectively.
This operational amplifier complies with RoHS directives, endorsing environmental safety. Although it does not meet automotive standards, it is ideal for consumer electronics, industrial control systems, instrumentation, and laboratory equipment.
The SSOP package supports surface mounting technology, allowing for compact PCB layouts and integration in dense circuit designs. The NJM4558 series is renowned for reliable bipolar technology and robust operation.
Dual channel architecture supporting two independent amplification circuits. Compatible with various analog signal processing tasks requiring low distortion and noise. Ideal for industrial, laboratory, control systems, and signal conditioning use cases.
Package dimensions and pin configuration facilitate automated assembly and testing. RoHS compliance assures suitability for modern manufacturing requirements.
For more options within Operational Amplifiers or related semiconductor components, explore EnvMart’s extensive electronic component catalog designed to meet professional engineering and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, allowing for high-speed amplification in various applications.
It operates over a supply voltage range from 4 V to 18 V, making it versatile for different power supply conditions.
The input bias current is 500 nA, which is suitable for precision analog signal processing.
The operating temperature range spans from -40°C to +85°C, making it suitable for industrial environments.
The slew rate is 1 V/μs, which supports fast output voltage transitions.
This model features a dual channel architecture, supporting two independent amplification circuits.
It comes in an 8-pin SSOP package, which is suitable for surface mounting on compact PCBs.
The input offset voltage is 6 mV, contributing to its precision in analog signal applications.
Yes, this operational amplifier is RoHS-compliant, ensuring it meets environmental safety standards.
The country of origin for the NJM4558V-TE2 is India.
It is suitable for consumer electronics, industrial control systems, instrumentation, and laboratory equipment.
The input offset current is 200 nA, which is relevant for certain precision applications.
