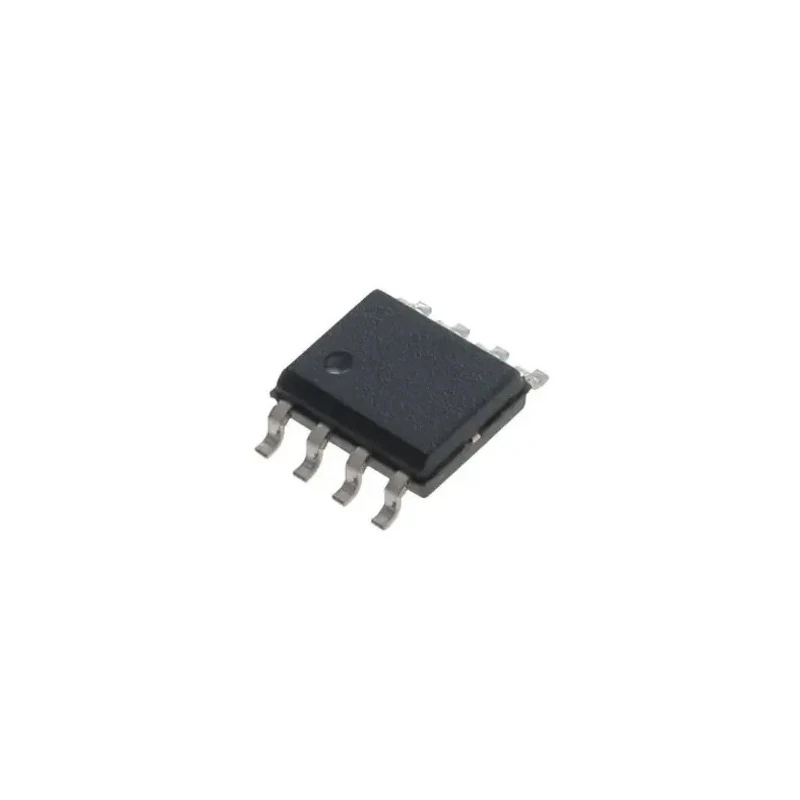

Nisshinbo Micro Devices Dual Operational Amplifier NJM3414AV-TE2, 1.3 MHz Gain Bandwidth, 15V SSOP 8-Pin

The Nisshinbo Micro Devices NJM3414AV-TE2 is a dual operational amplifier designed for applications requiring high gain and robust output current. Operating at 15 volts, this device features a gain bandwidth product of 1.3 MHz, making it suitable for a wide range of analog signal processing tasks.

This operational amplifier utilizes bipolar technology, enabling it to deliver high output voltage swing and drive output currents up to 70 mA efficiently. With a low input offset voltage of 5 mV and input bias currents of 500 nA, it offers excellent precision required in laboratory instrumentation, manufacturing electronics, and industrial control circuits.

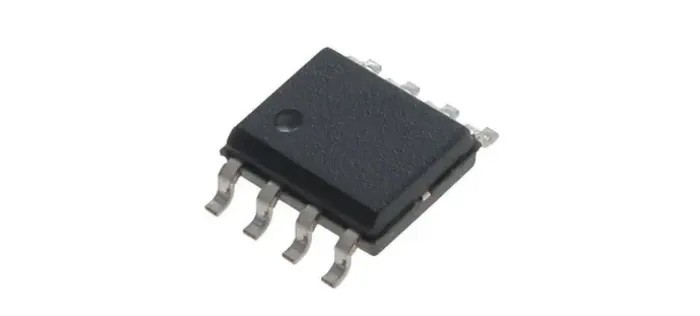

Encased in an 8-pin SSOP surface-mount package, NJM3414AV-TE2 supports compact and efficient PCB layouts. It operates reliably across an extended temperature range from -40°C to 85°C, suitable for demanding industrial and environmental conditions. The amplifier has a slew rate of 1 V/μs, delivering fast response times in dynamic signal environments.

This device complies with RoHS regulations, ensuring environmentally friendly production and disposal. It is not intended for automotive applications, maintaining focus on industrial, laboratory, and consumer electronics markets.

Typical use cases include precision amplification in measurement devices, analog signal conditioning in control systems, and audio or voltage amplification tasks where linear performance is critical.

Includes 2 amplifier channels with bipolar technology for high gain and output current. Offers a gain bandwidth product of 1.3 MHz suitable for general-purpose amplification. Features low input offset voltage of 5 mV and input bias current of 500 nA.

Operates reliably from -40°C to 85°C operating temperature range. Capable of driving output current up to 70 mA with a slew rate of 1 V/μs. Supplied in a compact 8-pin SSOP surface-mount package for efficient PCB assembly.

RoHS compliant ensuring environmentally safe manufacturing standards. Designed specifically for precise analog signal amplification in industrial and electronic applications. Non-automotive grade device, ideal for laboratory and manufacturing environments.

Pin count of 8 pins supports efficient integration and signal routing.
