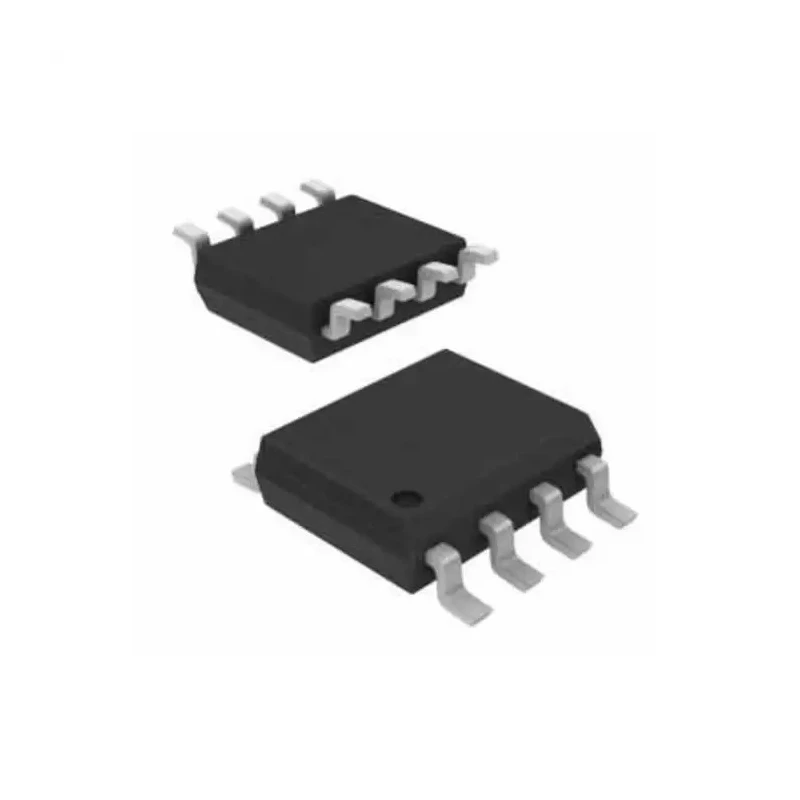

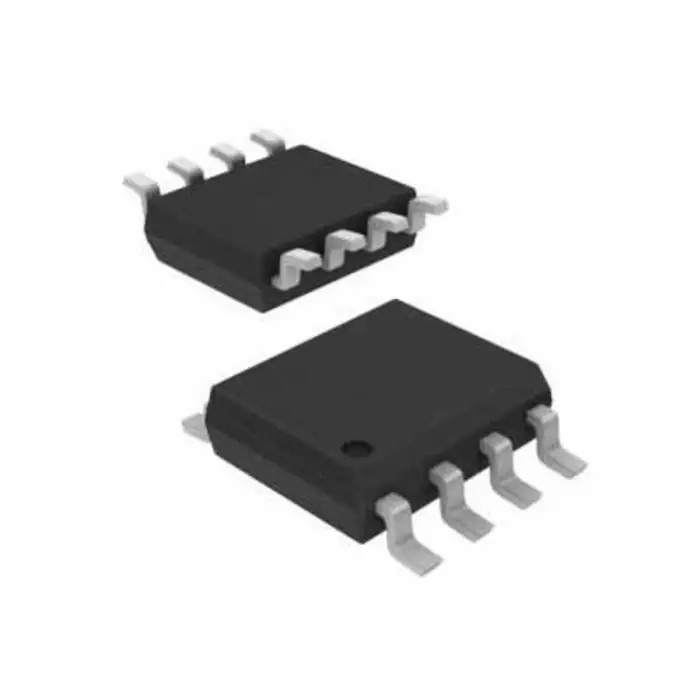

Nisshinbo Micro Devices Operational Amplifier Dual Channel 2 MHz Gain Bandwidth, 36V DMP 8-Pin NJM2742M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2742M-TE1 |
| Mount Type | Surface |
| Series | NJM2742 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 400 nA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 10V/μs |
| Input Offset Current | 75 nA |
Key Features
- This dual operational amplifier supports a wide supply voltage range for versatile applications.
- Featuring a slew rate of 10 V/μs for fast response in signal amplification.
- Input offset voltage is low at 12 mV with input bias current at 400 nA.
- Designed to operate reliably in temperature ranges from -40°C to 85°C.
- Compliant with RoHS standards ensuring environmental safety.
- The device is ideal for power supply units, motor driving circuits, and general amplification tasks.
- Compact surface mount DMP package reduces board space requirements.
- 8-pin configuration with 2 channels supports efficient dual signal amplification.
Product Description
Nisshinbo Micro Devices NJM2742M-TE1 is a dual channel operational amplifier designed for industrial and electronic applications requiring precise analog signal amplification. It features a gain bandwidth product of 2 MHz and supports a maximum supply voltage of 36 V, housed in an 8-pin DMP surface mount package which is suitable for high-density circuit boards.
This device operates with low input offset voltage (12 mV) and low bias currents (400 nA input bias current and 75 nA input offset current), contributing to accurate signal processing. The slew rate of 10 V/μs ensures rapid circuit response suitable for dynamic applications.
Its broad operating temperature range from -40°C to 85°C makes it suitable for industrial environments including power supply modules and motor control units. The product conforms to RoHS standards, guaranteeing compliance with environmental regulations.
The dual channel functionality allows simultaneous processing of two signals, aiding compact and efficient circuit designs. The surface mount DMP package optimizes space and enables automated assembly.
This operational amplifier supports dual channel amplification with 2 MHz gain bandwidth. Maximum supply voltage rating of 36 V enables use in various power electronic applications. Low input offset voltage and bias currents ensure high accuracy in signal conditioning.
Wide operating temperature range from -40°C to 85°C for reliable performance in harsh conditions. RoHS compliant, aligning with environmental safety requirements. Compact 8-pin DMP surface mount package allows easy PCB integration.
Ideal for power supplies, motor drivers, and general amplification in electronic circuits.
This product is categorized under semiconductor operational amplifiers and is suitable for Industrial, Electronics, and Manufacturing sectors. For more operational amplifiers and related components, explore the Electronics & Electricals > Semiconductor > Amplifiers & Comparators > Operational Amplifier category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2 MHz, allowing for effective signal amplification in various applications.
The maximum supply voltage for the NJM2742M-TE1 is 36 V, making it suitable for a range of power electronic applications.
The input offset voltage of the NJM2742M-TE1 is 12 mV, which contributes to its accuracy in signal processing.
This operational amplifier has a slew rate of 10 V/μs, ensuring rapid response in dynamic applications.
The NJM2742M-TE1 operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.
It comes in a compact DMP package, which is suitable for surface mounting on high-density circuit boards.
This model features 2 channels, allowing for efficient dual signal amplification.
The input bias current for the NJM2742M-TE1 is 400 nA, which aids in maintaining low power consumption and high accuracy.
Yes, this operational amplifier is compliant with RoHS standards, ensuring it meets environmental safety regulations.
The NJM2742M-TE1 has an 8-pin configuration, which is designed for compact integration into circuit boards.
It is ideal for use in power supply units, motor driving circuits, and general amplification tasks in electronic circuits.
The input offset current for the NJM2742M-TE1 is 75 nA, contributing to its overall precision in signal conditioning.
