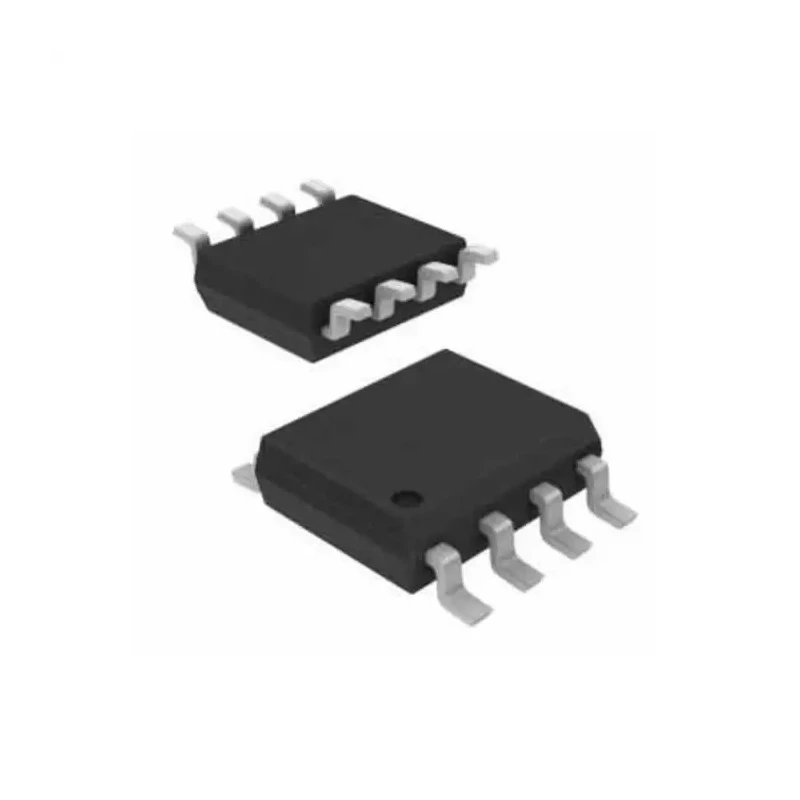

Nisshinbo Micro Devices Operational Amplifier 2 MHz, 8-Pin Surface Mount DMP NJM2742M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2742M-TE1 |
| Mount Type | Surface |
| Series | NJM2742 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 400 nA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 10V/μs |
| Input Offset Current | 75 nA |
Key Features
- Dual operational amplifier with a gain bandwidth product of 2 MHz.
- Surface mount package type DMP with 8 pins suited for compact PCB designs.
- Wide operating voltage range with minimum supply voltage of 36 V.
- Input offset voltage of 12 mV and input bias current of 400 nA ensure precise signal amplification.
- Operating temperature range from -40°C to 85°C suitable for various industrial environments.
- Slew rate of 10 V/μs supports fast signal response in dynamic applications.
- RoHS compliant, ensuring environmental and safety standards.
- Ideal for power supply units, motor driving units, and other electronic circuit applications.
Product Description
Nisshinbo Micro Devices NJM2742M-TE1 is a high-performance dual operational amplifier designed for surface mounting with an 8-pin DMP package. It features a gain bandwidth product of 2 MHz making it suited for precise amplification in demanding electrical circuits.
This operational amplifier supports a wide supply voltage of 36 V, delivering stable and reliable performance across varying voltages. It operates efficiently over a wide temperature range from -40°C to 85°C, ensuring durability in harsh industrial and commercial environments.
The device offers a low input offset voltage of 12 mV and an input bias current of 400 nA, which contribute to its accuracy in signal processing. The 10 V/μs slew rate allows for rapid response to input signal changes, making it suitable for power supply units, motor drives, and other electronic control applications.
Manufactured with bipolar technology, the NJM2742M-TE1 complies with RoHS environmental standards. It does not meet automotive standard requirements but is broadly used in industrial, laboratory, and manufacturing electronic devices.
Dual gain bandwidth of 2 MHz for precise amplification. Surface mount 8-pin DMP package facilitating easy PCB integration. Wide supply voltage range supporting 36 V operation. Low input offset voltage and bias current enhancing signal integrity.
Robust operating temperature range from -40°C to 85°C. Rapid slew rate of 10 V/μs for dynamic response. RoHS compliant ensuring environmental safety standards. Ideal for power supplies, motor drivers, and electronic instrumentation.
Explore a variety of Operational Amplifiers and semiconductor components on EnvMart to meet your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2 MHz, making it suitable for precise amplification in various applications.
The NJM2742M-TE1 operates efficiently over a temperature range from -40°C to 85°C, which is suitable for industrial environments.
This operational amplifier has a low input offset voltage of 12 mV, contributing to its accuracy in signal processing.
The NJM2742M-TE1 features 2 channels, allowing for dual signal amplification.
The slew rate of the NJM2742M-TE1 is 10 V/μs, which supports fast signal response in dynamic applications.
The minimum supply voltage for this model is 36 V, ensuring stable performance across varying voltages.
This operational amplifier is housed in an 8-pin DMP surface mount package, facilitating easy integration into compact PCB designs.
The input bias current for this model is 400 nA, which enhances the signal integrity during amplification.
Yes, the NJM2742M-TE1 is RoHS compliant, ensuring it meets environmental and safety standards.
This operational amplifier is ideal for applications such as power supply units, motor driving units, and other electronic circuit applications.
The input offset current for this operational amplifier is 75 nA, which supports its performance in precise signal amplification.
The maximum operating temperature for this model is 85°C, allowing it to function in various industrial environments.
