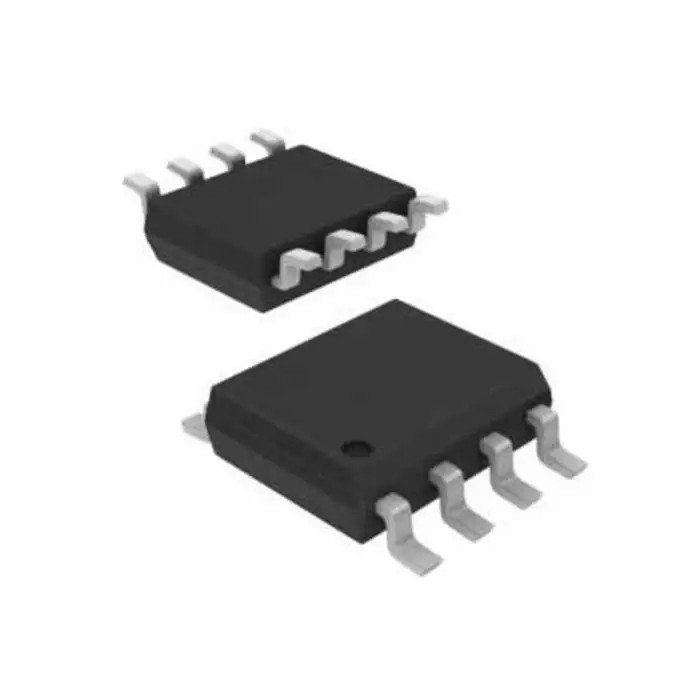

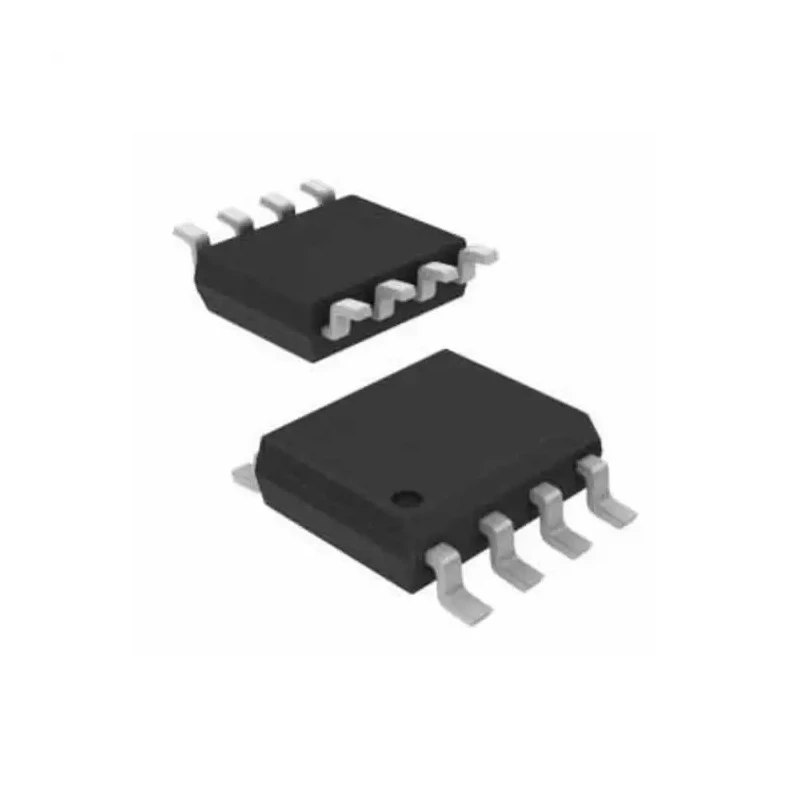

Nisshinbo Micro Devices Operational Amplifier Dual Channel 2 MHz GBP 36V DMP 8-Pin NJM2742M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2742M-TE1 |
| Mount Type | Surface |
| Series | NJM2742 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 2MHz |
| Input Bias Current | 400 nA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 10V/μs |
| Input Offset Current | 75 nA |
Key Features
- This dual channel amplifier operates over a wide temperature range from -40°C to 85°C.
- The input offset voltage is 12 mV, providing low offset errors.
- Input bias current is specified at 400 nA, ensuring precision signal handling.
- Slew rate of 10 V/μs enables quick response to input signal changes.
- Surface mount DMP package with 8 pins allows compact PCB integration.
- These amplifiers comply with RoHS standards for environmental safety.
- The product supports supply voltages up to 36 V, suitable for various industrial applications.
- Manufactured using bipolar technology for reliable performance.
Product Description
Nisshinbo Micro Devices NJM2742M-TE1 is a high-performance dual operational amplifier designed for a wide range of industrial and electronic applications. Featuring a 2 MHz gain bandwidth product (GBP) and packaged in a compact 8-pin DMP surface mount package, it supports a maximum supply voltage of 36 V, making it versatile for power supply units, motor driving units, and similar use cases.
Operating over a temperature range from -40°C to 85°C, this operational amplifier ensures reliable function under harsh industrial environments. The device utilizes bipolar technology, providing precision in amplification with a low input offset voltage of 12 mV and an input bias current of 400 nA. Its slew rate of 10 V/μs allows it to handle fast signal changes effectively, ensuring signal integrity in high-speed applications.
The NJM2742M-TE1 comes in a surface mount DMP package with 8 pins, helping to reduce board space and simplify assembly. RoHS compliant, it meets environmental and safety standards important for manufacturing and deployment worldwide.
This operational amplifier is suitable for industrial, laboratory, manufacturing, and electronic system designs where dual-channel, wide voltage range and high gain bandwidth are critical. It is commonly applied in analog circuits including power regulation, signal conditioning, and motor control.
This dual channel amplifier operates over a wide temperature range from -40°C to 85°C. The input offset voltage is 12 mV, providing low offset errors. Input bias current is specified at 400 nA, ensuring precision signal handling.
Slew rate of 10 V/μs enables quick response to input signal changes. Surface mount DMP package with 8 pins allows compact PCB integration. These amplifiers comply with RoHS standards for environmental safety. Supports supply voltages up to 36 V suitable for diverse industrial applications.
Manufactured using bipolar technology for reliable performance. Ideal for power supply units, motor driver units, and other industrial electronics. Explore a wide range of Operational Amplifiers and semiconductor components at EnvMart to find components that meet your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of this operational amplifier is 2 MHz, allowing it to handle a wide range of frequencies effectively.
It supports a maximum supply voltage of 36 V, making it suitable for various industrial applications.
This model operates over a wide temperature range from -40°C to 85°C, ensuring reliable function in harsh environments.
The input offset voltage is specified at 12 mV, which helps in minimizing offset errors during signal amplification.
It has a slew rate of 10 V/μs, allowing for quick response to changes in input signals.
This operational amplifier features dual channels, providing versatility in various applications.
The input bias current is specified at 400 nA, ensuring precision in signal handling.
It is packaged in a compact 8-pin DMP surface mount package, which facilitates easy PCB integration.
The NJM2742M-TE1 complies with RoHS standards, ensuring it meets environmental and safety regulations.
This operational amplifier is manufactured using bipolar technology, which contributes to its reliable performance.
It is suitable for applications such as power supply units, motor driving units, and other industrial electronics requiring dual-channel amplification.
The input offset current is specified at 75 nA, which is important for maintaining accuracy in amplification.
