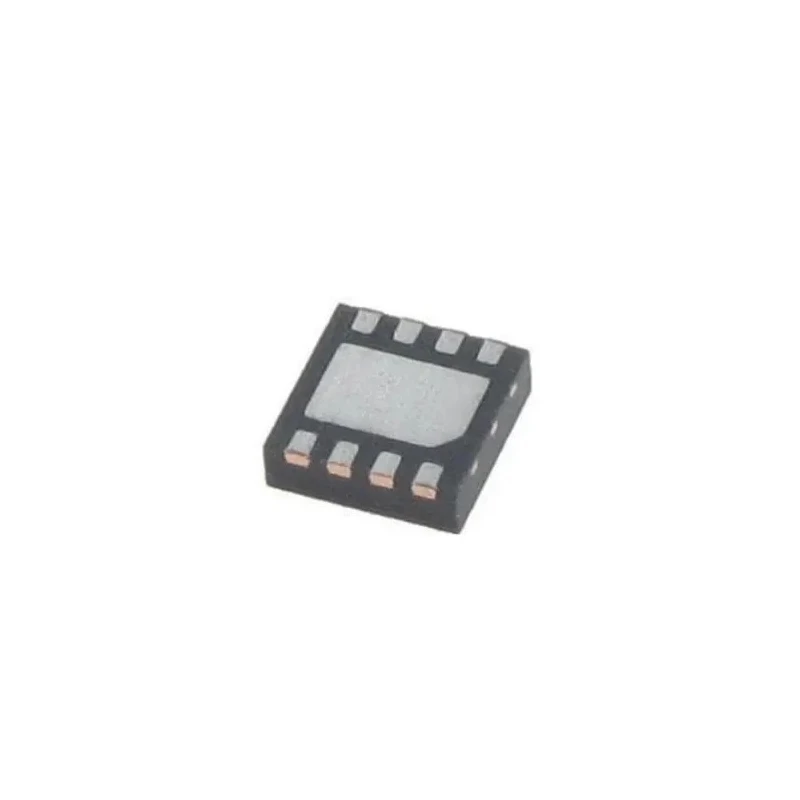

Nisshinbo Micro Devices Operational Amplifier 1.5 MHz 36V DFN 8-Pin NJU77903KW2-TE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 0.7mm |
| Length | 3mm |
| Model | NJU77903KW2-TE3 |
| Width | 3mm |
| Mount Type | Surface |
| Series | NJU77903 |
| Output Current | 200mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | EIA/JEDEC |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 40V |
| GBP - Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 3.5V/μs |
Key Features
- Operates with a maximum supply voltage of 36V and a minimum of 40V.
- Features a gain bandwidth product of 1.5 MHz for precision amplification.
- Input offset voltage is nominally 6 mV ensuring accurate signal processing.
- Maximum operating temperature ranges from -40°C to 125°C for rugged use.
- Low input bias current of 1 pA minimizes input loading effects.
- Slew rate of 3.5 V/μs supports rapid signal changes.
- Output current rated at 200 mA for driving loads.
- Compact footprint with dimensions 3 mm x 3 mm x 0.7 mm height ensures space-saving PCB layout.
Product Description
Nisshinbo Micro Devices NJU77903KW2-TE3 is a precision operational amplifier designed for high voltage and high performance applications in industrial and electronic equipment.
This device operates with a maximum supply voltage of 36 volts and is built using a surface mount DFN package with 8 pins, offering a compact and efficient layout with dimensions of 3 mm length, 3 mm width, and 0.7 mm height.
The NJU77903KW2-TE3 features a gain bandwidth product (GBP) of 1.5 MHz, making it suitable for precise signal amplification in analog circuits. Its input offset voltage is 6 mV, input bias current as low as 1 pA, and an output current capacity of 200 mA enabling it to drive various loads effectively. The slew rate of 3.5 V/μs allows for rapid response times in dynamic signals.
Designed to operate reliably over an extended temperature range from -40 to +125 °C, this amplifier is compliant with EIA/JEDEC standards ensuring reliable performance in rigorous industrial and commercial environments.
Typical application areas include electronic instrumentation, control systems, industrial automation, audio amplification, and semiconductor testing equipment. Its robust design accommodates harsh operating conditions often found in manufacturing, laboratory, and embedded system contexts.
Operates with a maximum supply voltage of 36V and a minimum of 40V. Gain Bandwidth Product of 1.5 MHz supports high precision. Low input offset voltage of 6 mV enhances measurement accuracy. Slew rate of 3.5 V/μs enables quick signal transitions.
Rated for output current up to 200 mA to drive loads effectively. Compact DFN package measures 3 mm by 3 mm by 0.7 mm height. Wide temperature range from -40°C to 125°C suitable for industrial use. Complies with EIA/JEDEC standards for quality assurance.
This Nisshinbo Micro Devices operational amplifier is ideal for integration into advanced electronics where precise analog control is crucial. Browse EnvMart for similar Operational Amplifiers and semiconductor components for your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of the NJU77903KW2-TE3 operational amplifier is 1.5 MHz, making it suitable for precise signal amplification in analog circuits.
This operational amplifier operates with a maximum supply voltage of 36V.
The input offset voltage is nominally 6 mV, which enhances measurement accuracy.
It is rated for an output current of up to 200 mA, allowing it to effectively drive various loads.
The DFN package of this model measures 3 mm in length, 3 mm in width, and has a height of 0.7 mm.
The operational amplifier can operate reliably over a temperature range from -40°C to +125°C.
The slew rate is 3.5 V/μs, which supports rapid signal changes.
This model uses surface mount technology for its installation.
It complies with EIA/JEDEC standards, ensuring reliable performance in various applications.
The input bias current is as low as 1 pA, which minimizes input loading effects.
This operational amplifier has a single channel configuration.
It is suitable for applications such as electronic instrumentation, control systems, industrial automation, and audio amplification.
