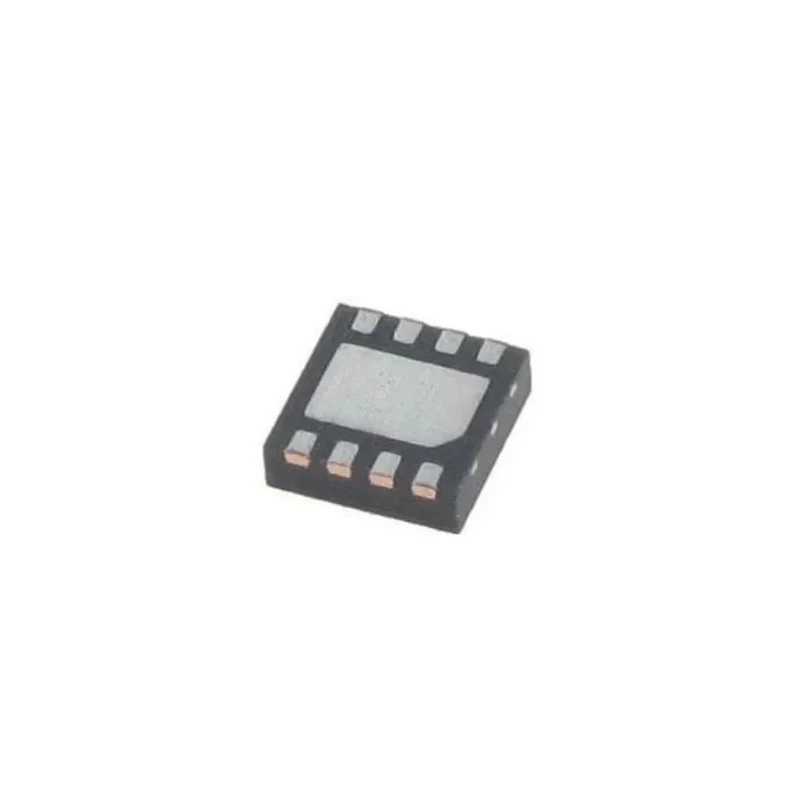

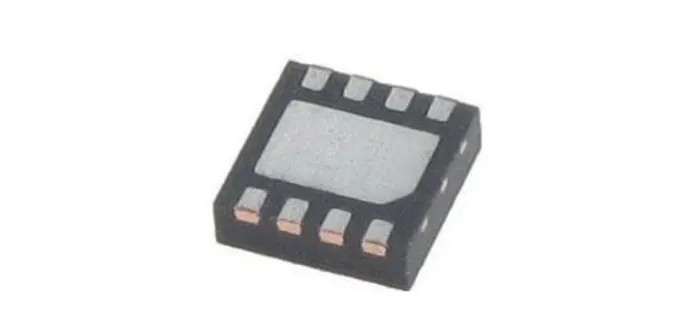

Nisshinbo Micro Devices Operational Amplifier 1.5 MHz, Surface Mount, 8-Pin DFN Package NJU77903KW2-TE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 0.7mm |
| Length | 3mm |
| Model | NJU77903KW2-TE3 |
| Width | 3mm |
| Mount Type | Surface |
| Series | NJU77903 |
| Output Current | 200mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | EIA/JEDEC |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 40V |
| GBP - Gain Bandwidth Product | 1.5MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 3.5V/μs |
Key Features
- Offers a gain bandwidth product of 1.5 MHz for precise amplification.
- Operates across a supply voltage range up to 36V with a minimum of 40V.
- Equipped with low input bias current of 1 picoampere enhancing signal accuracy.
- Supports full swing input and output voltages improving signal range.
- Compact DFN package measuring 3mm x 3mm x 0.7mm suitable for space-constrained designs.
- Operates efficiently within temperature range of -40°C to 125°C for reliability.
- Has a slew rate of 3.5 V/μs for fast signal response.
- Output current capability up to 200 mA for driving loads effectively.
Product Description
Nisshinbo Micro Devices NJU77903KW2-TE3 operational amplifier is a surface mount device that offers a gain bandwidth product of 1.5 MHz. This amplifier operates with a supply voltage between 36V maximum and 40V minimum, supporting extended voltage input ranges for various applications.
Designed in a compact 8-pin DFN package measuring 3 x 3 x 0.7 mm, it integrates low input bias and offset voltages, with an input bias current as low as 1 picoampere and an offset voltage of 6 millivolts. The device features a slew rate of 3.5 V per microsecond and can supply output currents up to 200 mA, suitable for driving medium load circuits.
Operating temperature ranges from -40°C to 125°C ensure usability in harsh industrial, automotive, and electronic environments. Its construction meets EIA/JEDEC standards for quality and consistency. The device offers enhanced RF noise immunity and full swing input and output performance, making it ideal for precision signal amplification in electronic instrumentation, communications, and control systems.
Gain Bandwidth Product: 1.5 MHz for accurate signal processing. Surface mountable DFN package for compact PCB layouts. Low input bias current and offset voltage improve measurement fidelity. Wide operating voltage and temperature range for reliability.
High slew rate for rapid response in dynamic applications. Output current capacity of 200 mA supports diverse load requirements.
This operational amplifier is well suited for industrial, laboratory, automotive electronics, and semiconductor device applications requiring precise analog signal conditioning and amplification. Available as a new product, it is a reliable component for engineering design projects requiring surface mount PCBs with space constraints.
EnvMart offers a comprehensive selection of semiconductor Operational Amplifiers to meet varied customer needs in electronics manufacturing and repair.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NJU77903KW2-TE3 operational amplifier is 1.5 MHz, which allows for precise amplification in various applications.
This operational amplifier operates with a supply voltage range from 40V minimum to 36V maximum, accommodating a variety of circuit requirements.
It can supply output currents up to 200 mA, making it suitable for driving medium load circuits effectively.
The DFN package of this model measures 3 mm in length, 3 mm in width, and 0.7 mm in height, making it compact for space-constrained designs.
It operates efficiently within a temperature range of -40°C to 125°C, ensuring reliability in various environments.
The slew rate of this operational amplifier is 3.5 V/μs, allowing for fast signal response in dynamic applications.
The input bias current for this model is as low as 1 picoampere, which enhances signal accuracy and measurement fidelity.
The input offset voltage is specified at 6 millivolts, contributing to its performance in precision applications.
It meets EIA/JEDEC standards for quality and consistency, ensuring reliable performance in electronic applications.
This operational amplifier features a single channel configuration, suitable for various amplification tasks.
It is well suited for industrial, laboratory, automotive electronics, and semiconductor device applications requiring precise analog signal conditioning and amplification.
This model is designed for surface mounting, making it ideal for compact PCB layouts.
