| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C24-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 250Ω |
| Typical Voltage Temperature Coefficient | 18.4mV/K |

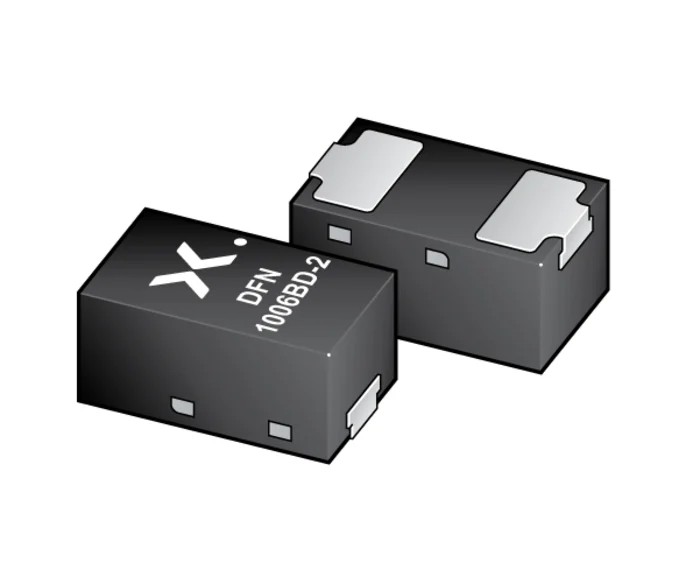

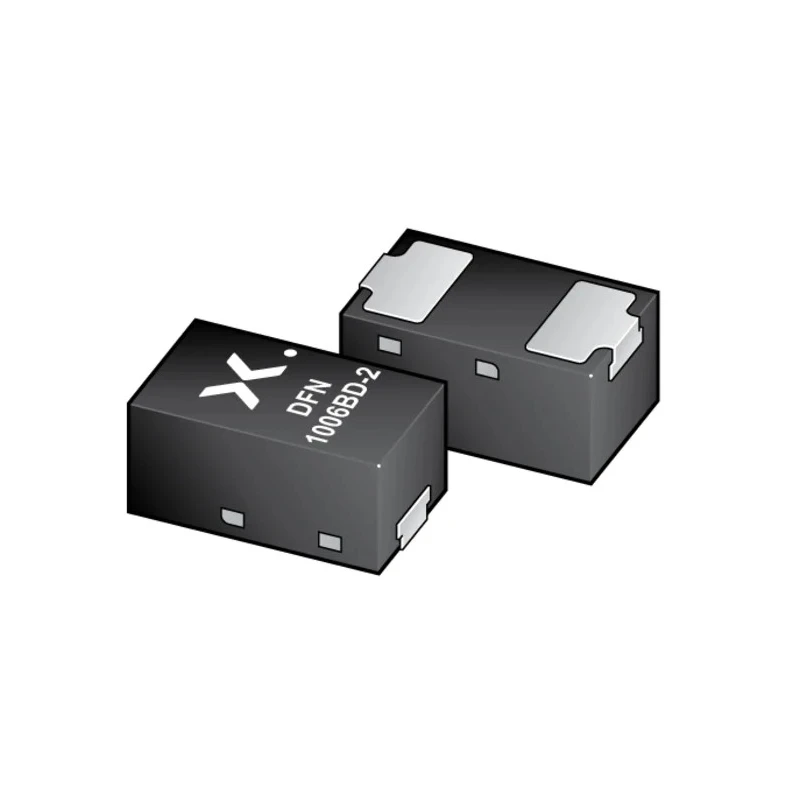

Nexperia BZX884S-C24-QYL is a new general-purpose 24 V Zener diode designed for surface mounting in compact electronic circuits. It provides a maximum power dissipation of 365 mW in a low-profile DFN1006BD-2 package, measuring just 1 mm in length and 0.47 mm in height. This device is constructed with a single element chip and two pins to simplify integration.
The diode is optimized for voltage regulation and protection in automotive and industrial semiconductor applications. It is suitable for use in harsh environments, operating within the wide temperature range from -55°C to 150°C. The device exhibits very low reverse leakage current of only 50 nA, helping minimize power loss in sensitive circuits.
This Zener diode meets RoHS requirements and is qualified under the automotive AEC-Q101 standard, making it highly reliable for automotive electronics. Its typical voltage temperature coefficient of 18.4 mV/K ensures stable voltage characteristics across operating temperatures.
The ultra-small SMD package with side-wettable flanks is ideal for automated PCB assembly in compact designs, supporting modern manufacturing and stringent automotive quality controls.
Key applications include voltage regulation, voltage reference circuits, and overvoltage protection in a variety of electronic systems spanning industrial, automotive, commercial, and laboratory equipment.
This diode features a single element chip with 2 pin configuration. Housed in a compact DFN1006BD-2 plastic package with side-wettable flanks for surface mounting. Maximum power dissipation rating of 365 mW for reliable performance.
Nominal Zener voltage of 24 V with ±2% tolerance for precise voltage regulation. Operational temperature range from -55°C to 150°C suitable for automotive use. Extremely low reverse leakage current of 50 nA ensures minimal power losses.
Test current specified at 5 mA with voltage temperature coefficient of 18.4 mV/K. Complies with RoHS and automotive AEC-Q101 standards ensuring high quality and safety. Ideal for automotive, industrial, commercial, and laboratory electronic applications.
